RISC‑V MCU

32MB PSRAM

32MB Flash

Wi‑Fi 6

USB OTG 2.0 HS

Audio Output

Audio Capture

TF Card Slot

IPS Display Panel

7" / 8" / 10.1"

2‑lane CSI
Interface

7": 720 × 1280
8"/10.1": 800 × 1280

Capacitive Touch

10‑Point Touch

Toughened
Glass Panel

Optical Bonding

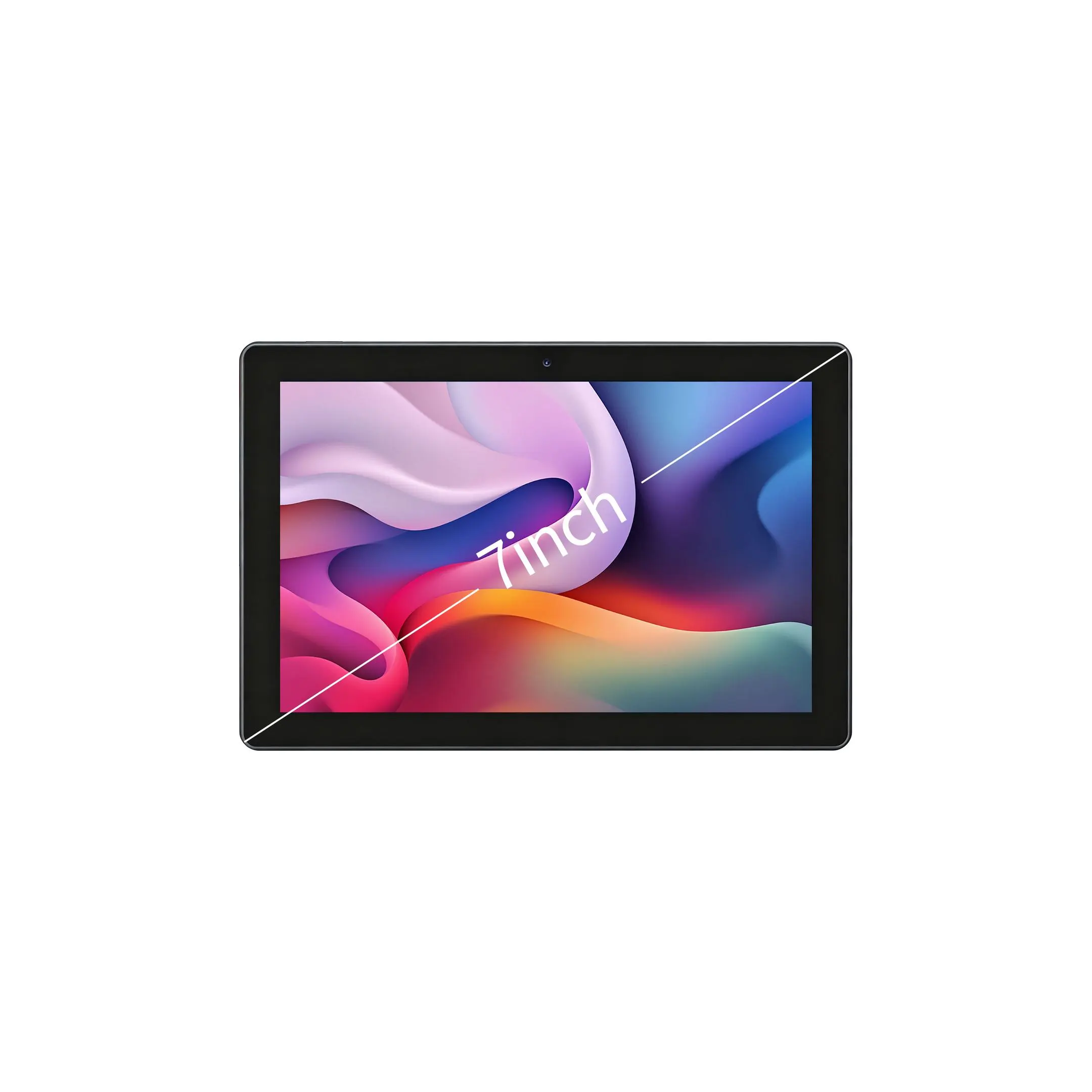

Qtenboard‑WIFI6‑Touch‑LCD‑7

7inch, 720 × 1280 resolution

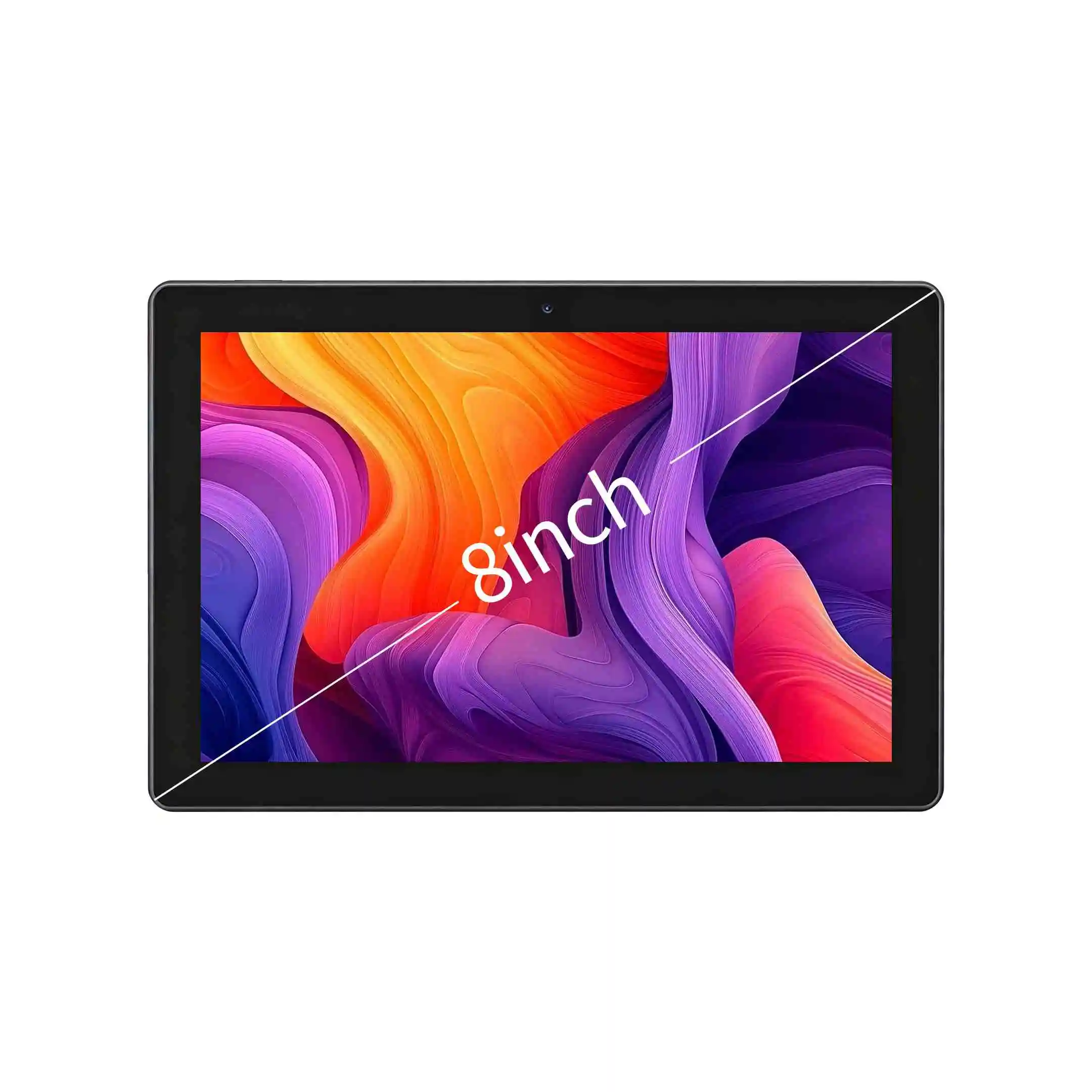

Qtenboard‑WIFI6‑Touch‑LCD‑8

8inch, 800 × 1280 resolution

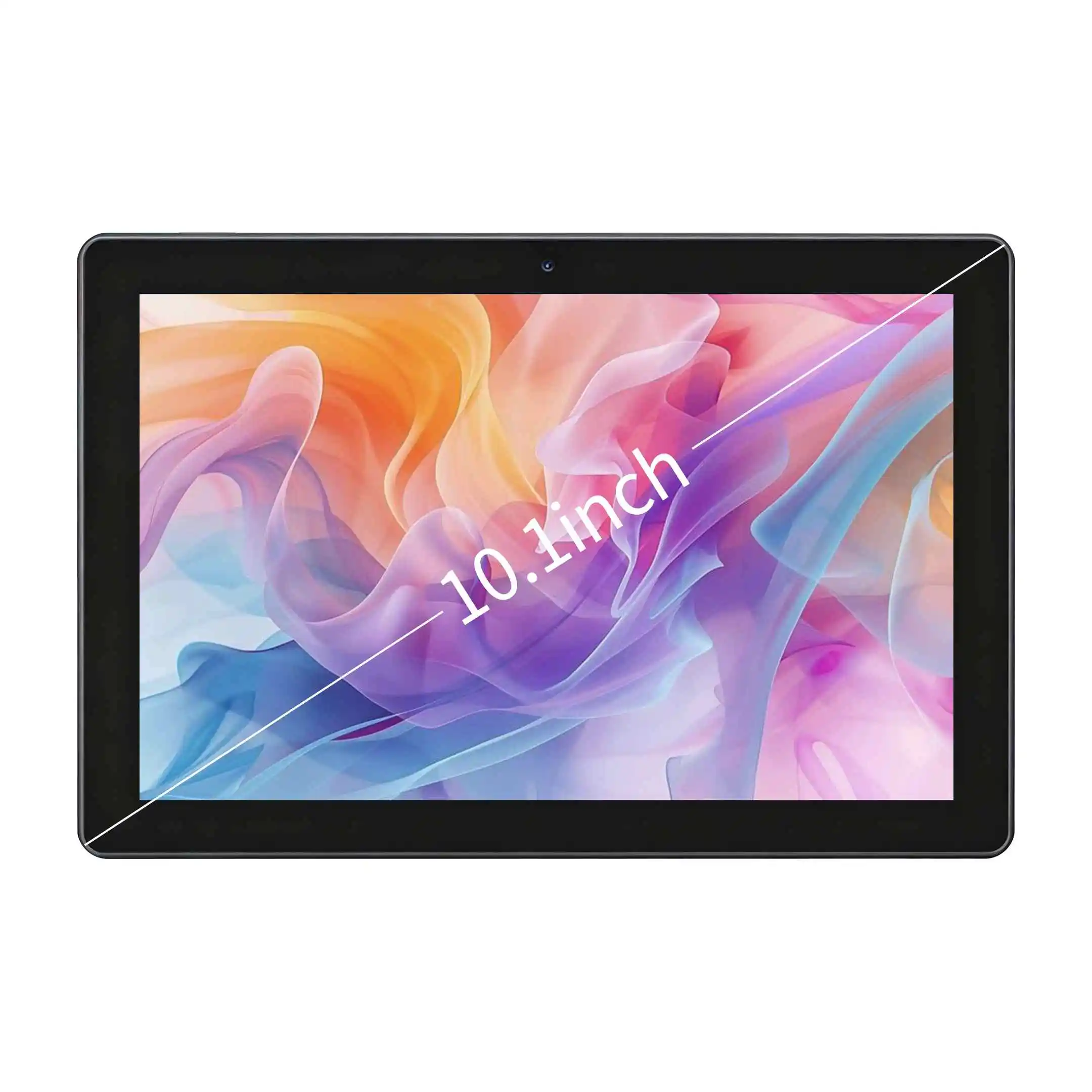

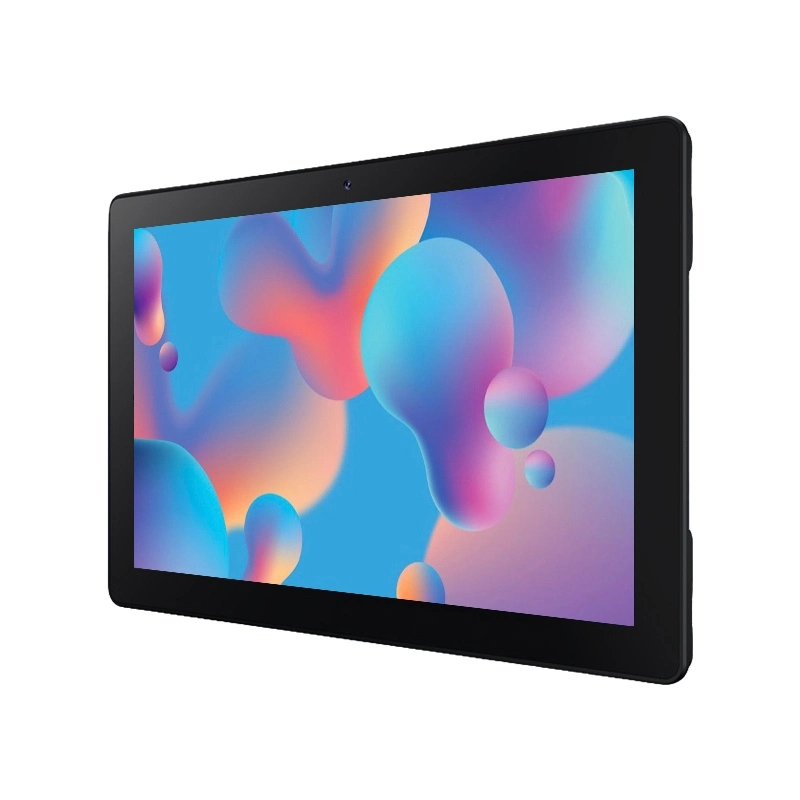

Qtenboard‑WIFI6‑Touch‑LCD‑10.1

10.1inch, 800 × 1280 resolution

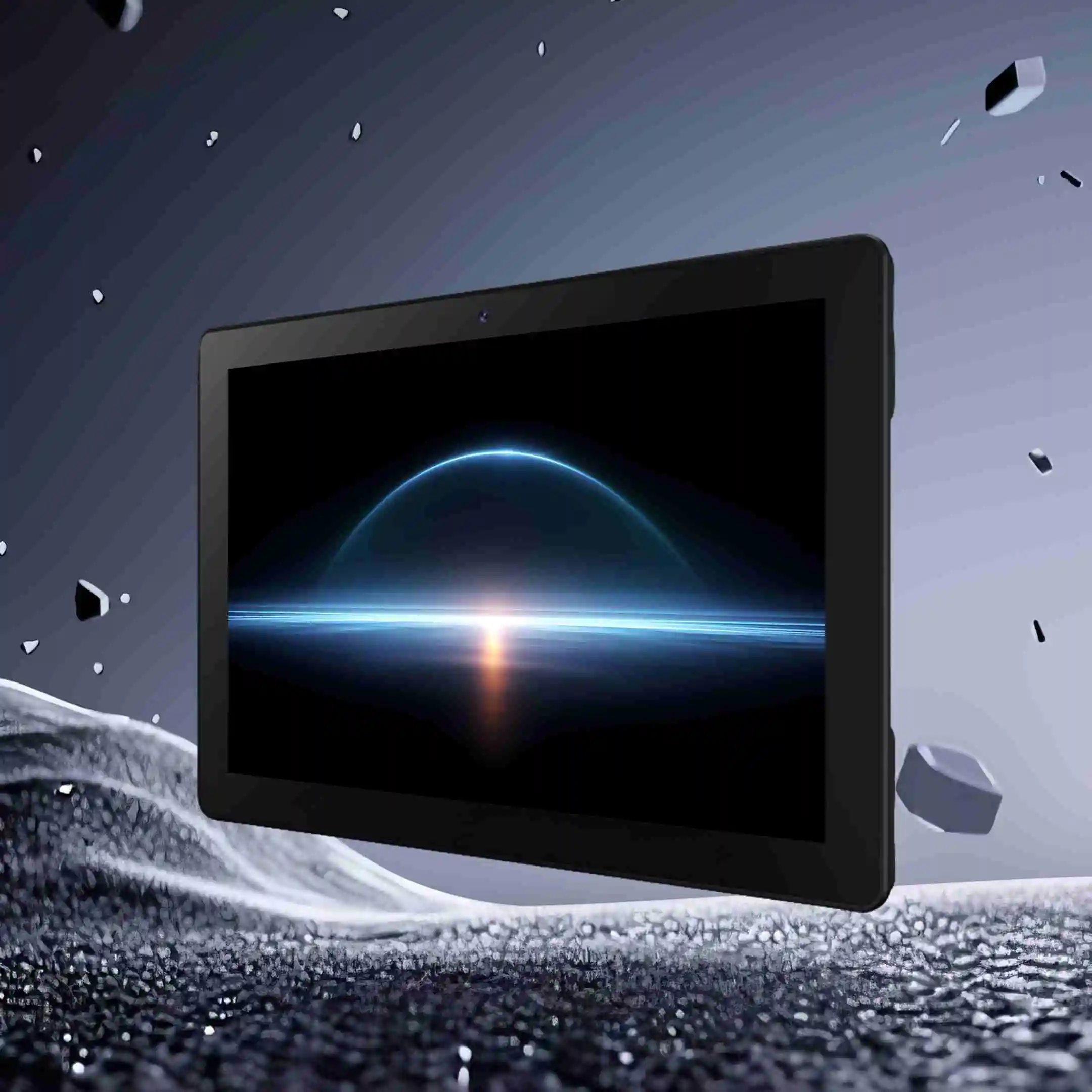

Toughened Glass Panel

Sensitive Touch Control With High Resolution Display, Durable Design

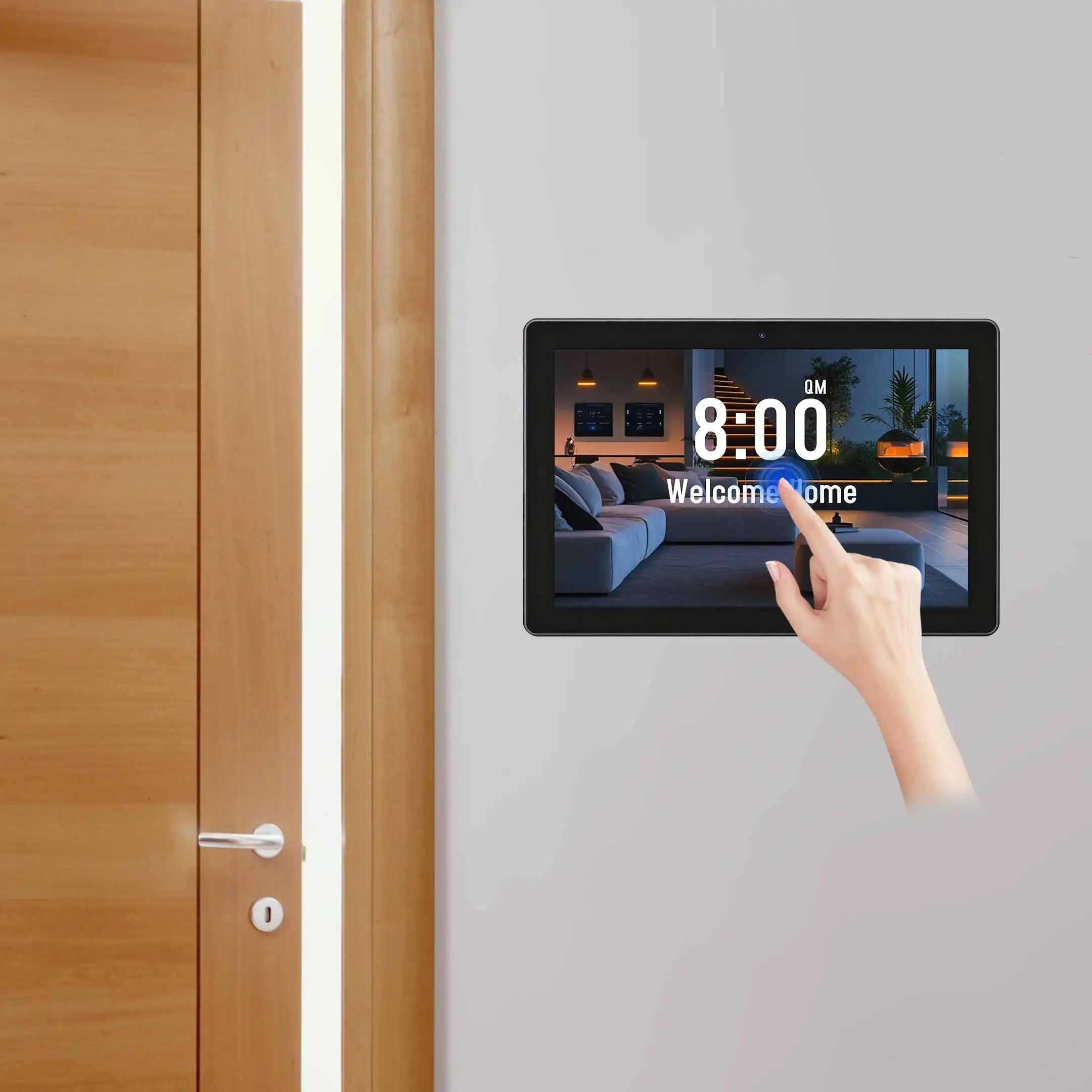

Capacitive 10‑Point Touch

Supports 10‑Point Sensitive Touch, Seamlessly Combining Intuitive Operation With Rapid Response For Efficient And Convenient Development

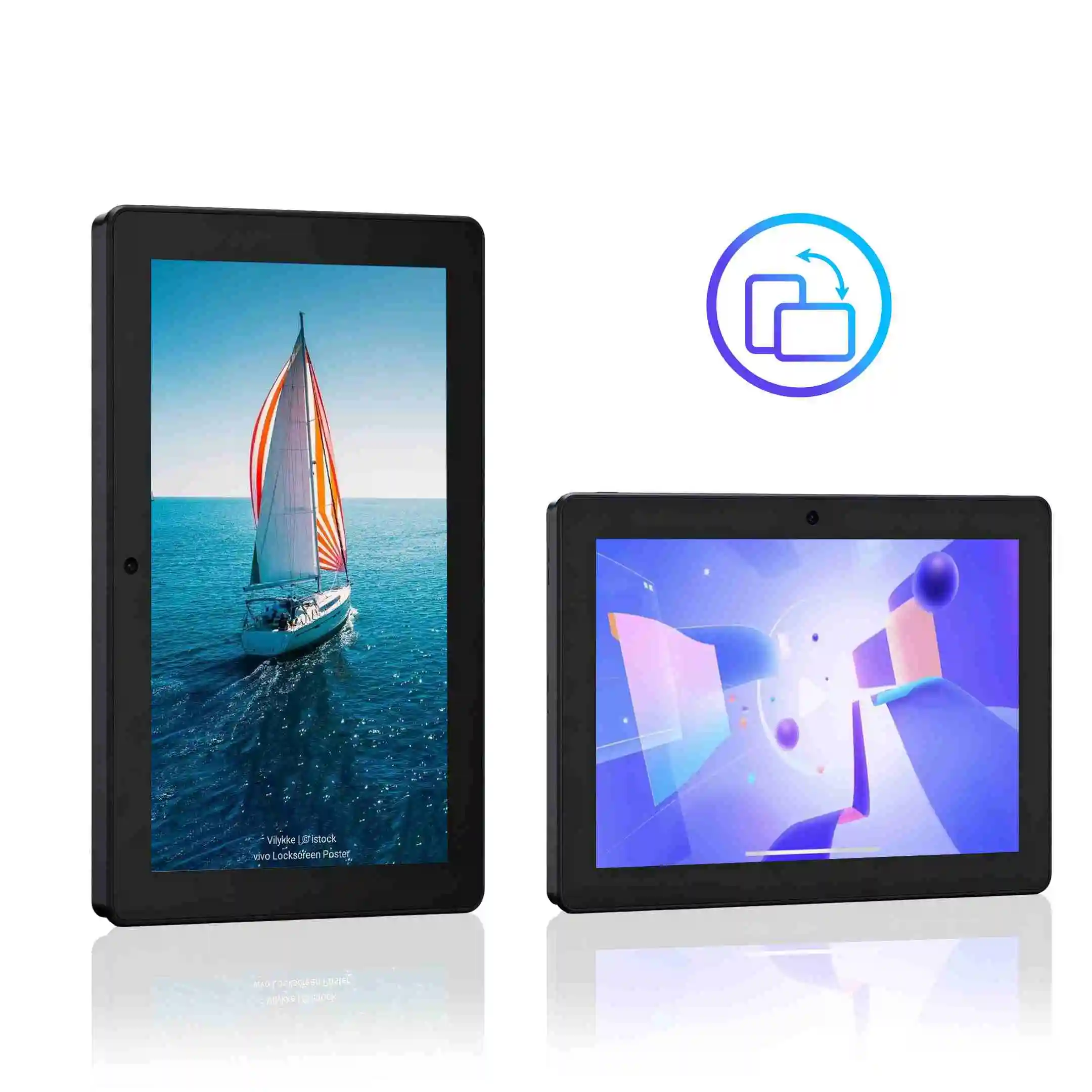

Configurable Display Orientation

The Display Orientation Is Landscape By Default. Change The Software Config For Portrait Display

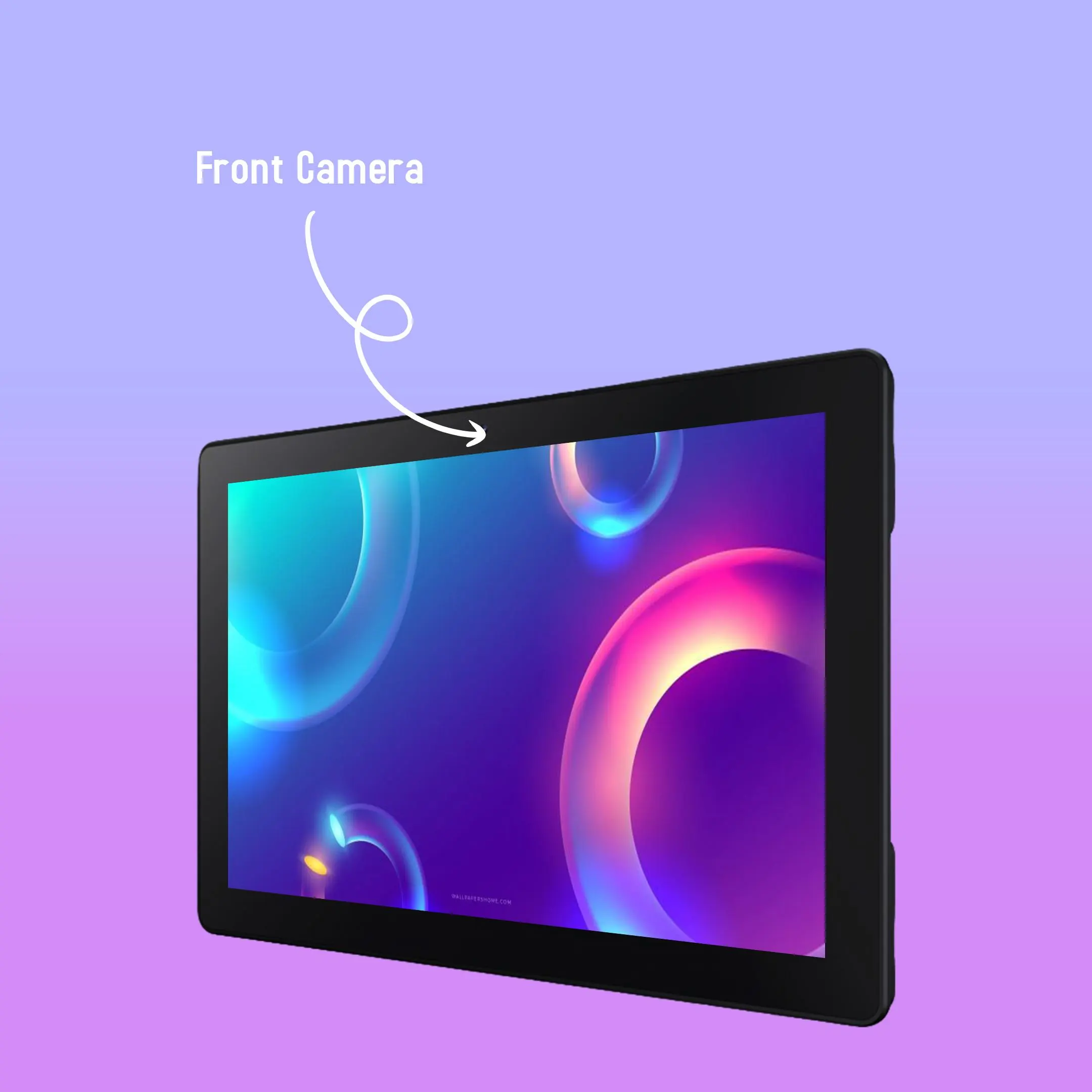

Onboard Front Camera

Built‑in front camera for video call and visual detection scenarios

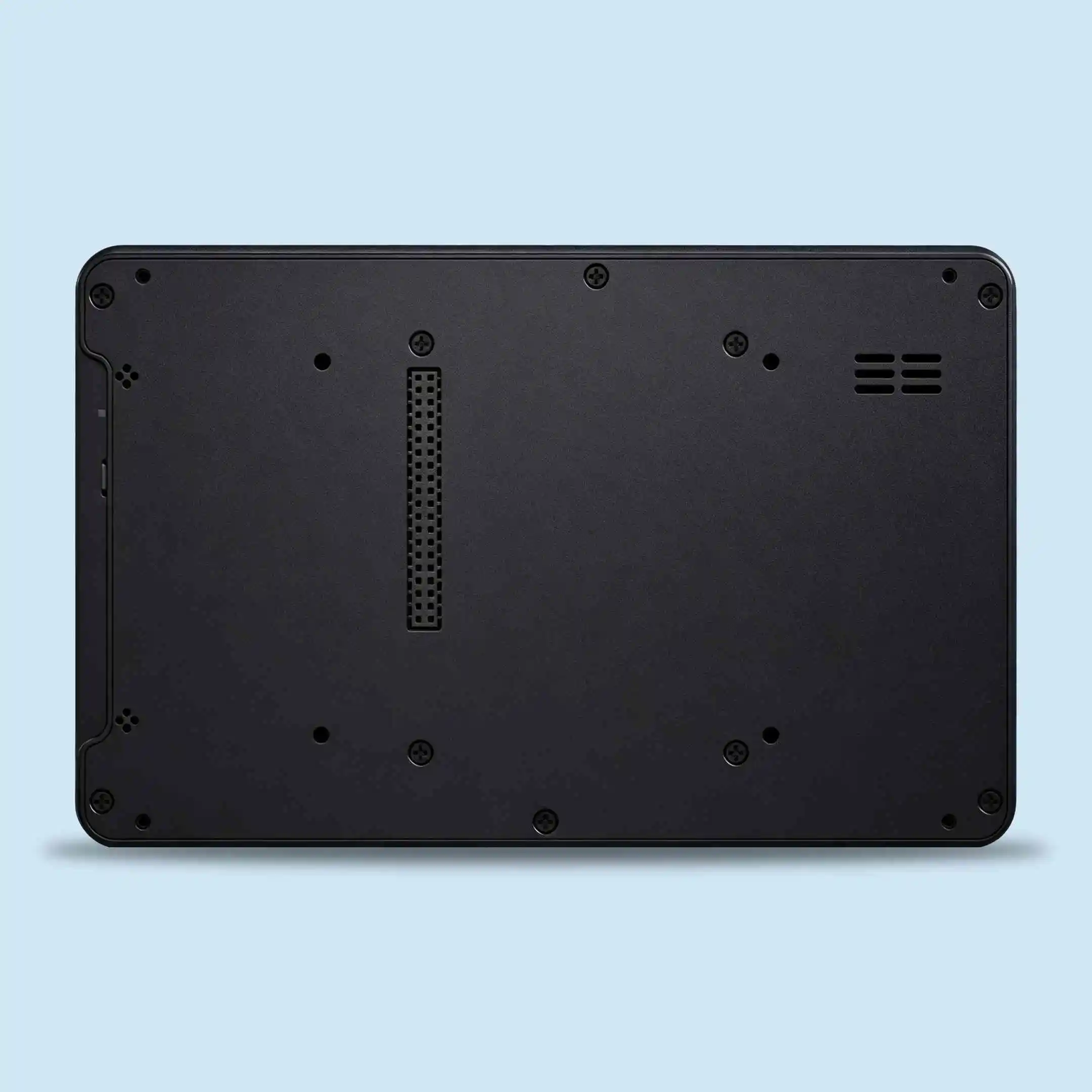

Excellent Heat Dissipation

Full Metal Case With Efficient Thermal Conduction, And Reserved Mounting Holes On The Back For Easy Integration And Embedding

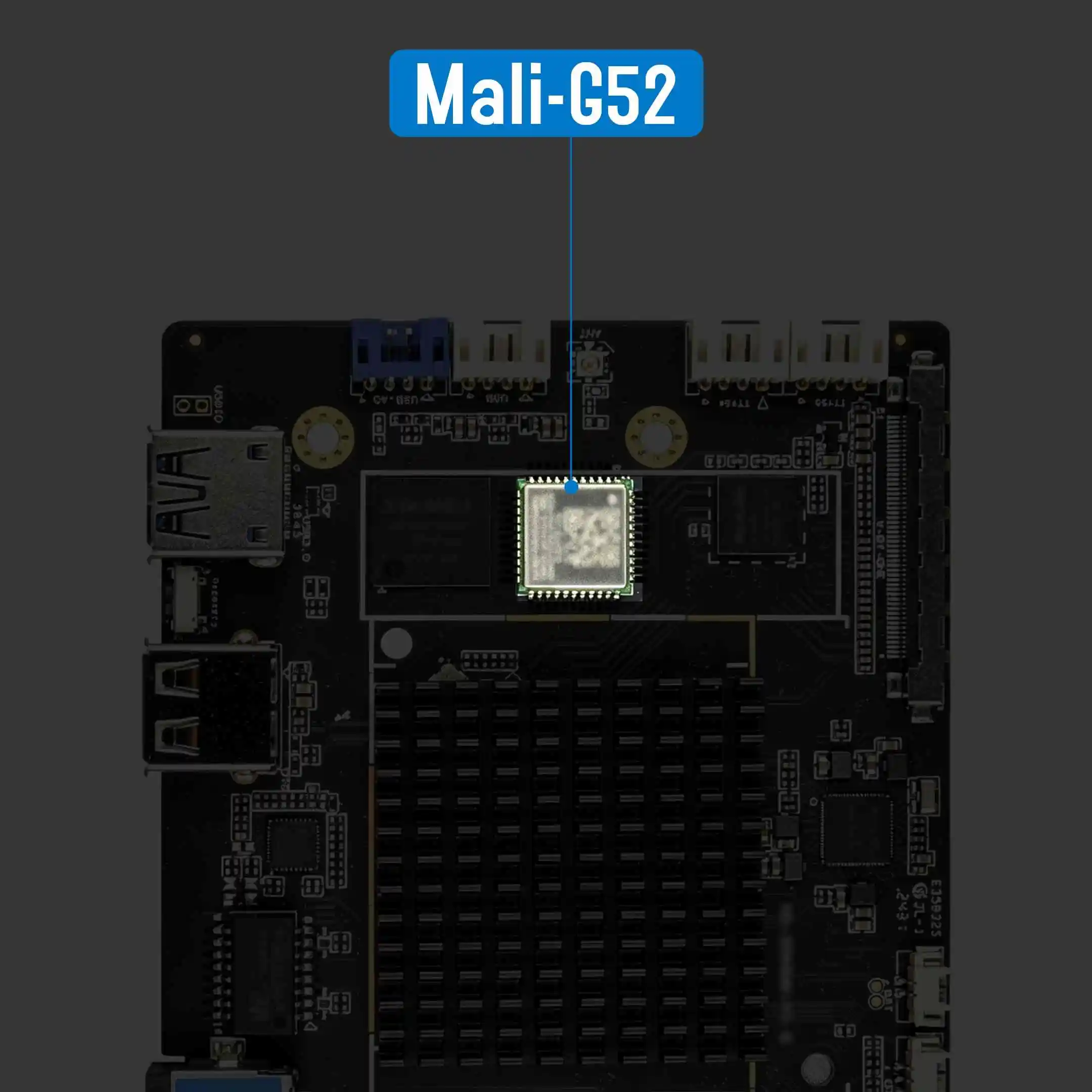

Highly Integrated & Powerful Performance

Adopts Qtenboard‑Core Module, With Built‑in Main Chip And 32MB Nor Flash

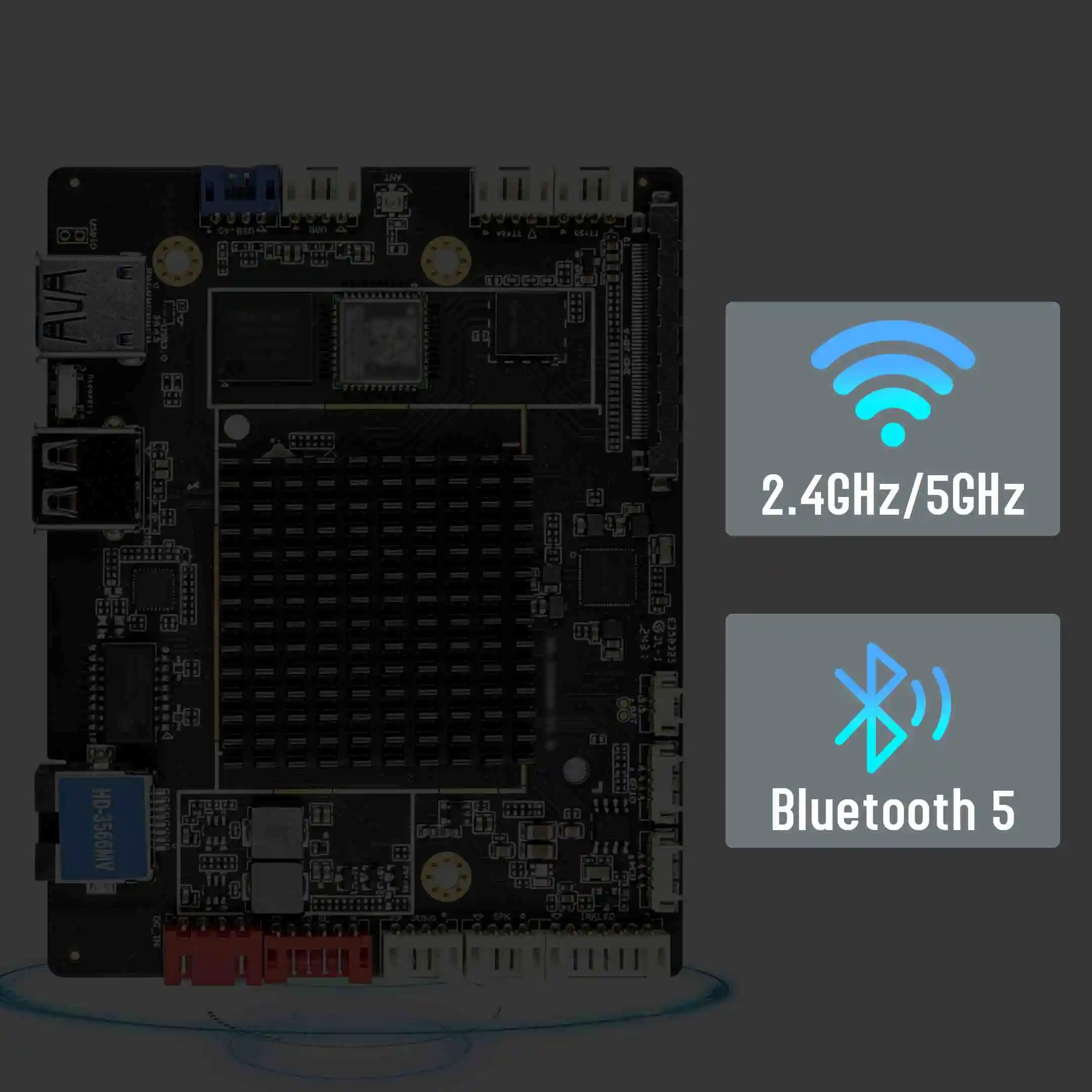

Wi‑Fi 6 And Bluetooth Module

Onboard expansion module extends 2.4GHz Wi‑Fi 6 and Bluetooth 5 (LE), using SDIO interface for stable connection and efficient transmission

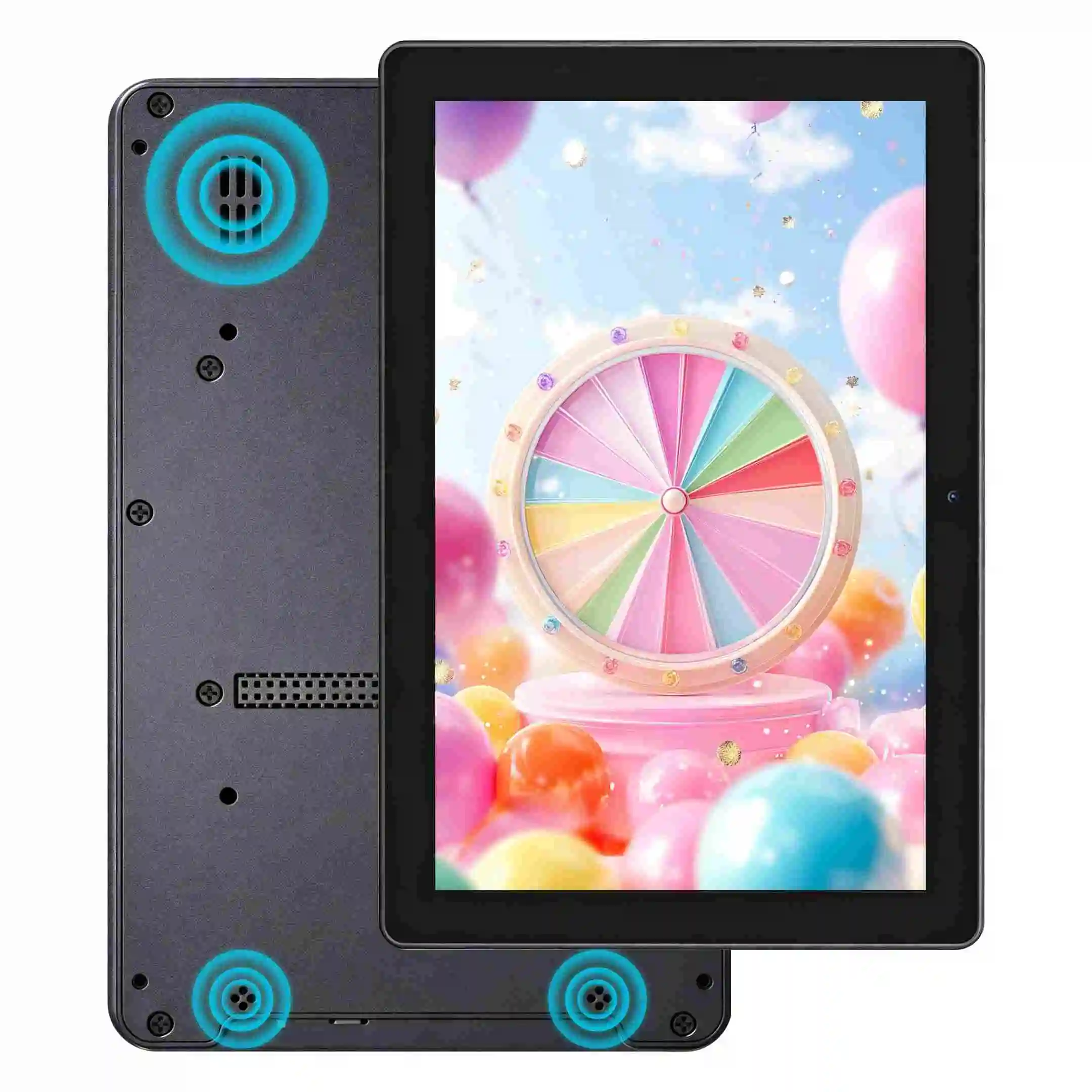

Audio Input / Output

Onboard ES8311 Audio Codec Chip And ES7210 Echo Cancellation Circuit, With Dual Microphones And Speaker For Daily Audio Application Scenarios

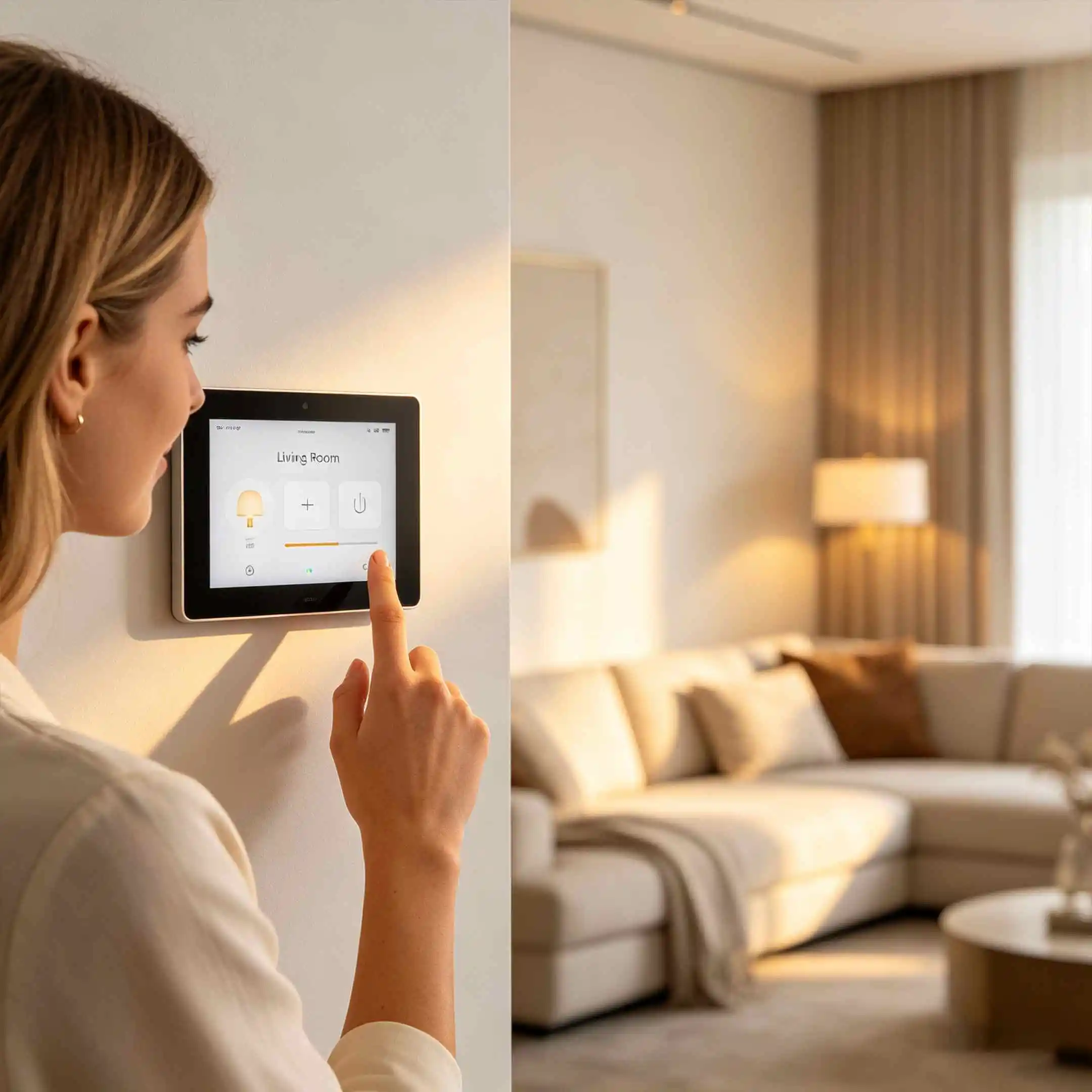

Smart Switch

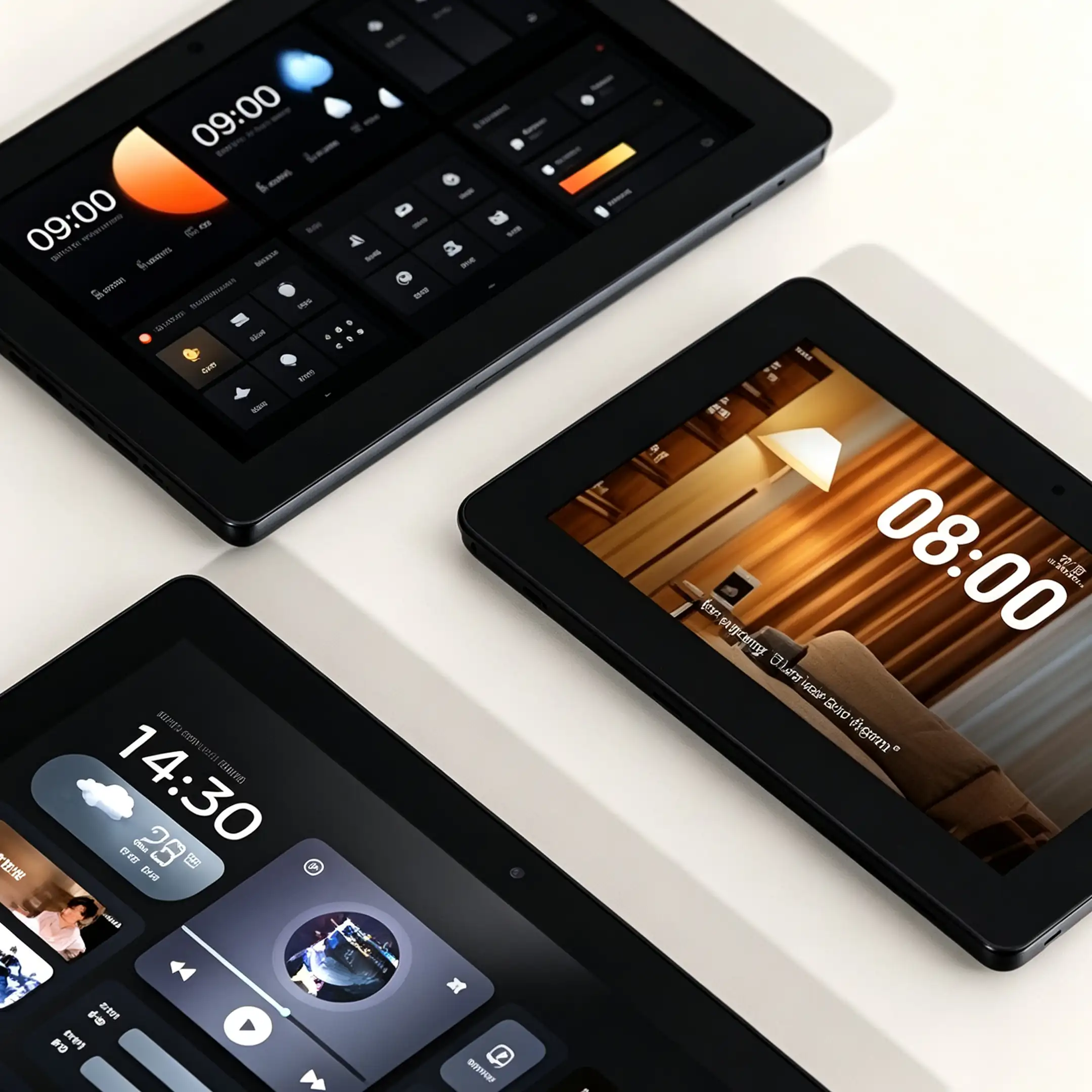

Human‑Machine Interface

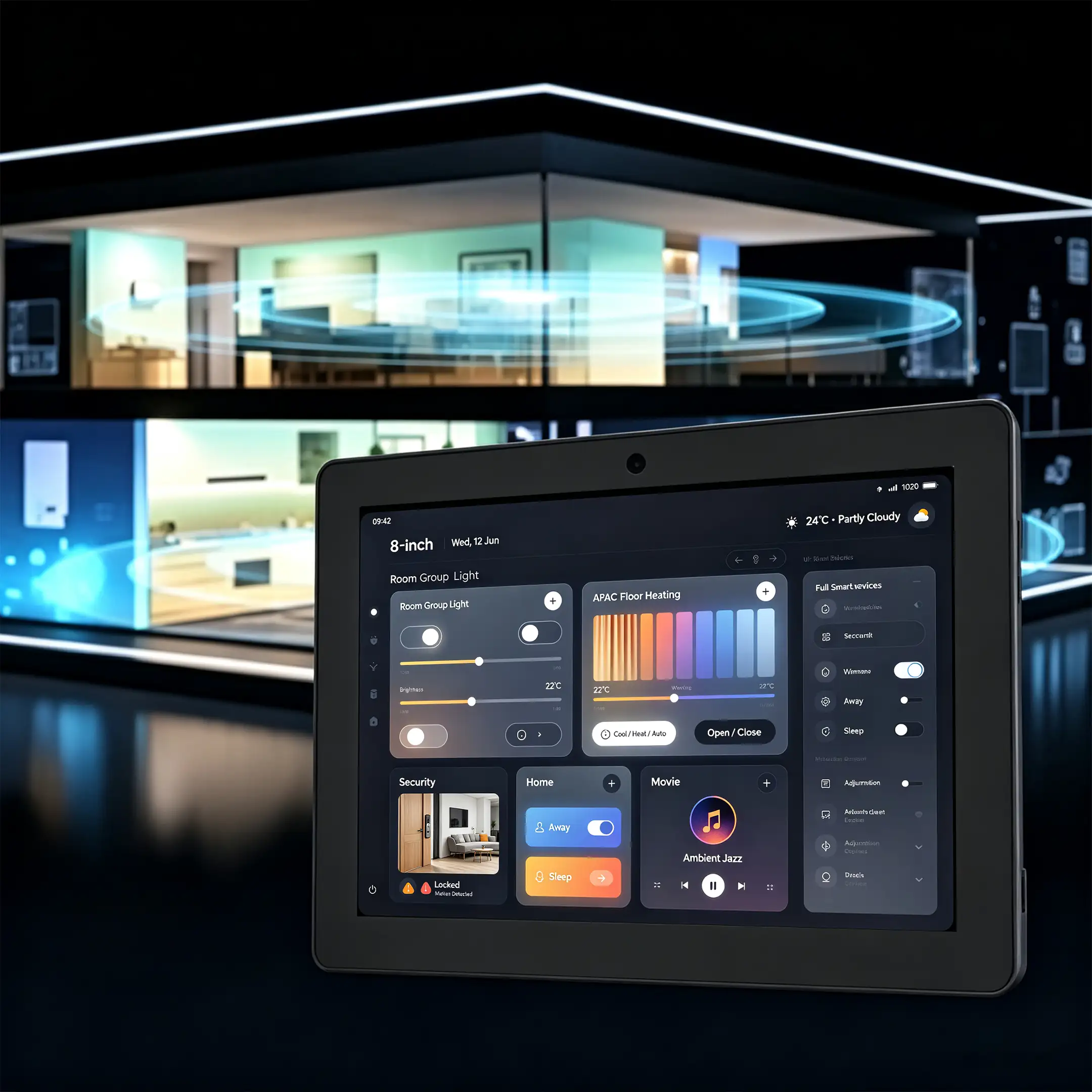

Smart Home Terminal

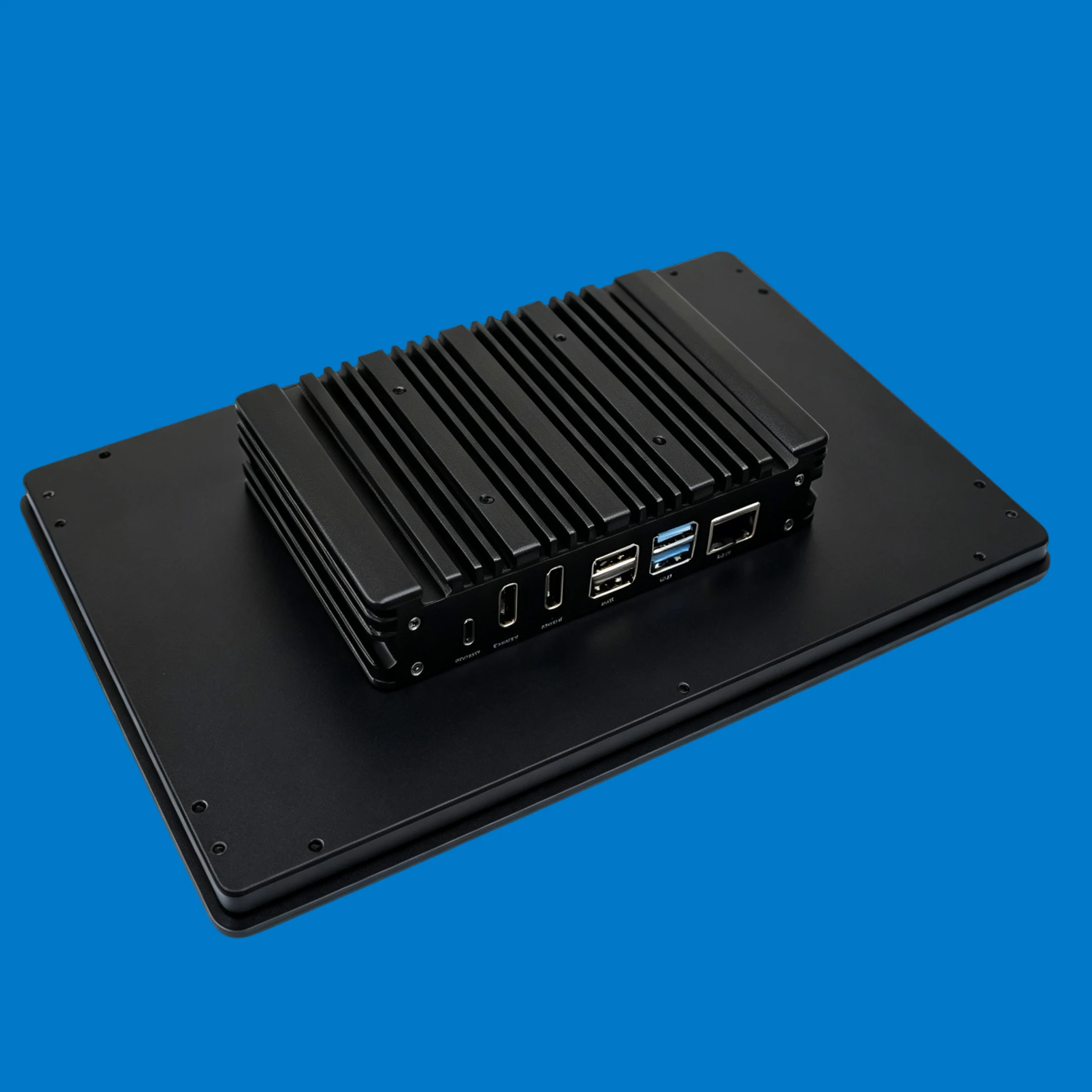

Industrial Control Device

Q1: Can Qtenboard HMI touch display support secondary development?

A: Yes. It is designed for secondary development. You can develop custom UI, IoT logic, audio‑video applications based on Qtenboard SDK.

Q2: Does the device support battery powered operation?

A: 3.7V lithium battery is optional for all three sizes(7"/8"/10.1"). Default standard version is DC power supply only.

Q3: Can I switch between landscape and portrait screen mode?

A: Default is landscape. You can change display orientation via software configuration to portrait mode, no hardware modification needed.

Q4: What wireless standard does the onboard WIFI support?

A: Onboard Wi‑Fi6, support 2.4GHz &5GHz dual‑band, together with Bluetooth5 LE for short‑range wireless connection.

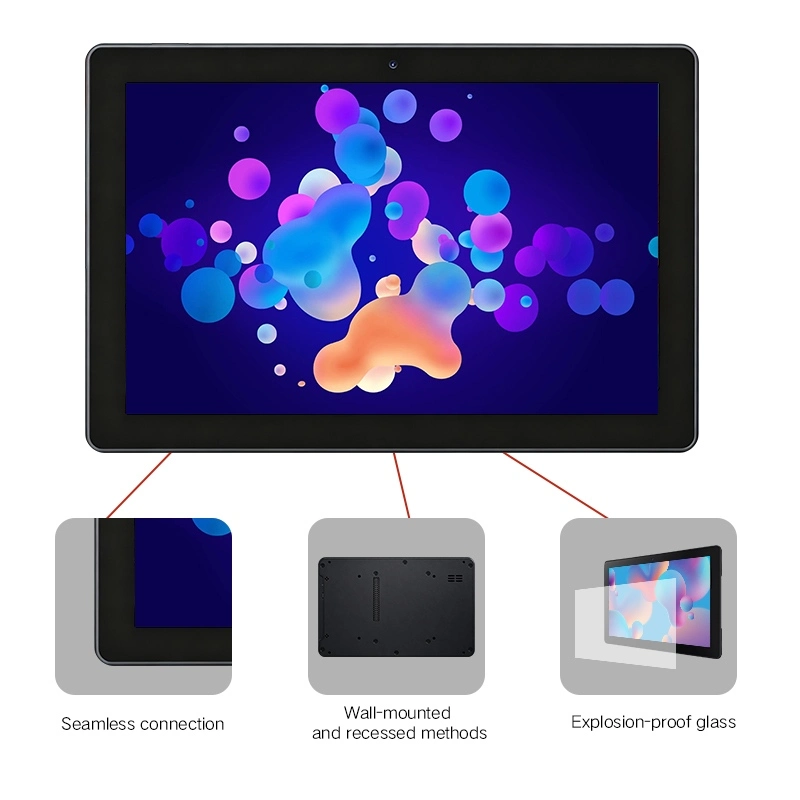

Q5: Is VESA mounting supported for wall‑mount installation?

A: Yes. The metal back shell reserves VESA mounting holes, easy for wall‑mount, embedded and cabinet integration projects.

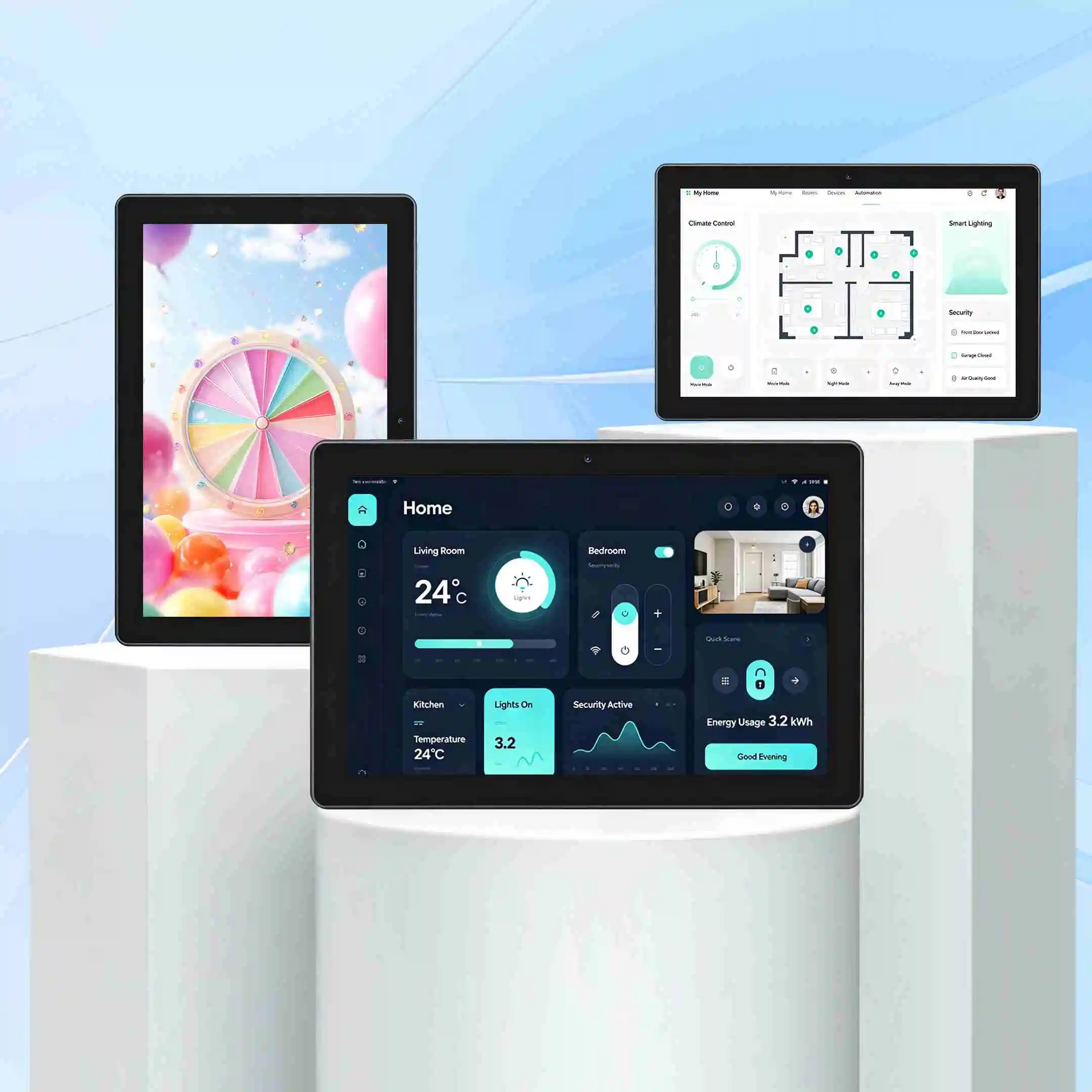

Q6: What application scenarios are suitable for Qtenboard all‑in‑one touch display?

A: Mainly for smart home control panels, IoT HMI terminals, industrial local control units, video intercom devices and custom human‑machine interaction equipment.
