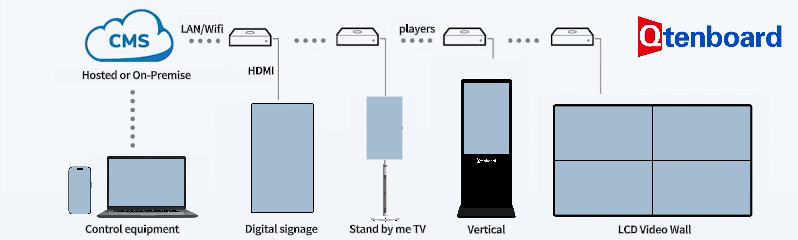

A simple advertising management system that maximizes the impact of your advertisements.

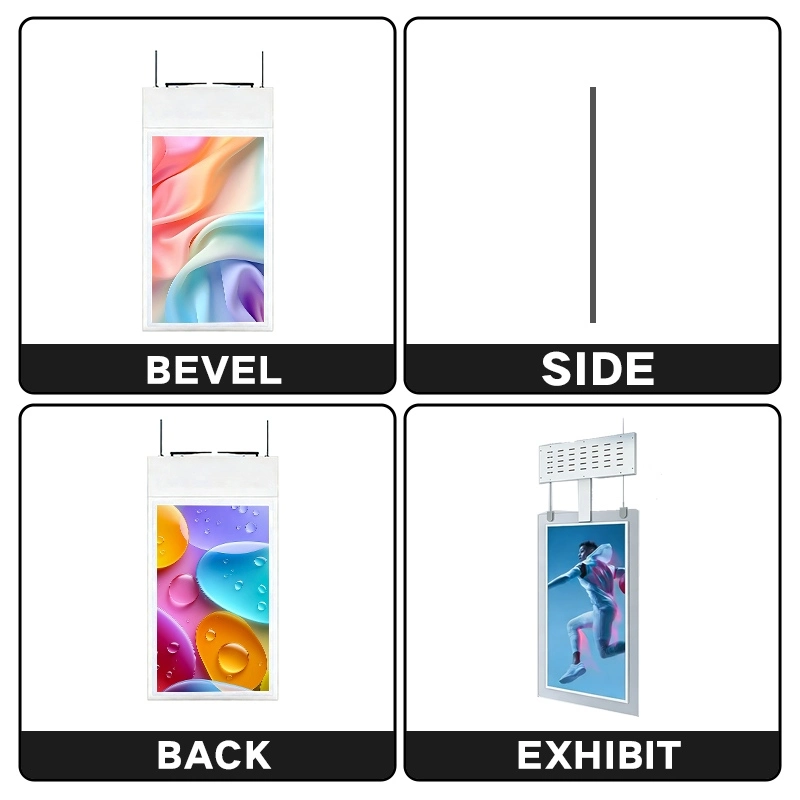

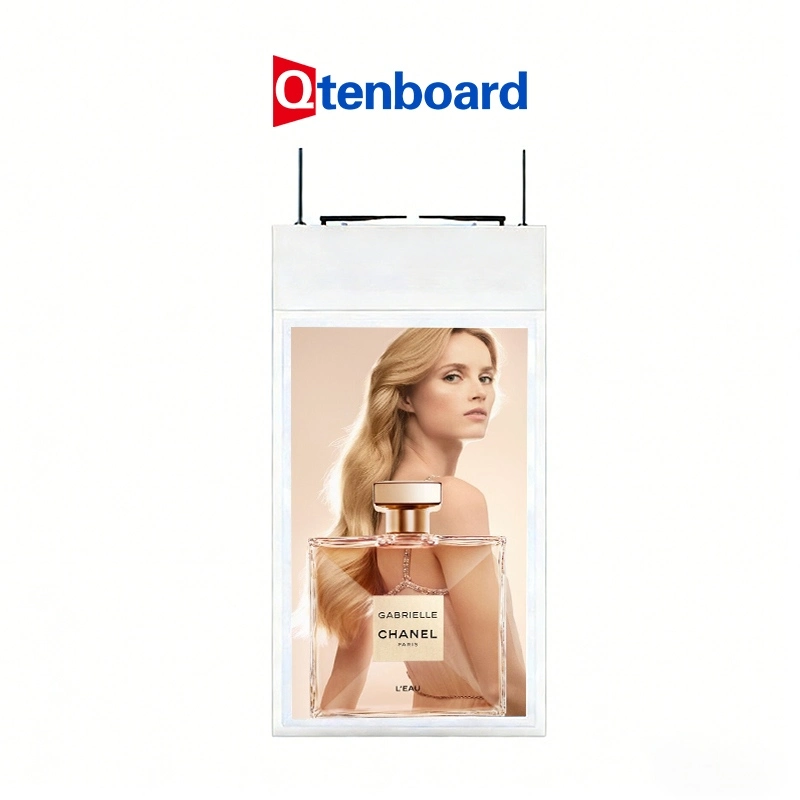

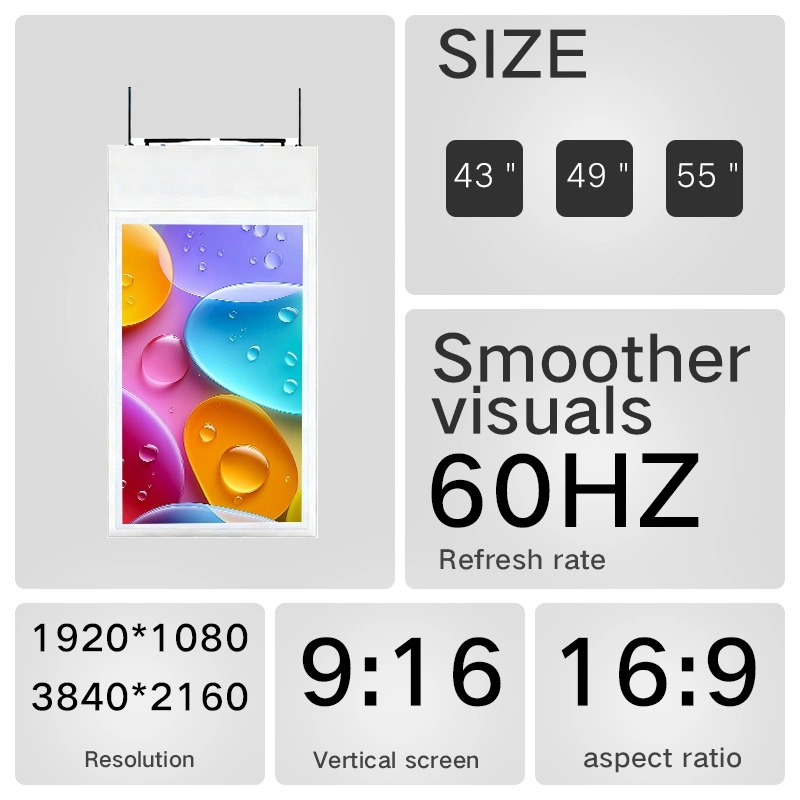

Elevate your storefront with our Hanging Double Sided Window Indoor Digital Signage. Ultra-slim LCD screens designed for retail stores, banks, and malls. High-brightness, 24/7 performance to capture customer attention from both sides.
Qtenboard is a direct manufacturer specializing in ultra-thin LCD digital signage and window display solutions. With two large-scale factories in Shenzhen and Guangzhou totaling 330,000㎡, we operate 16 specialized production facilities. Our production focuses on high-brightness, double-sided hanging screens designed for retail storefronts, banking windows, and commercial display applications in malls, airports, and flagship stores.
We provide full OEM and ODM services tailored for window-facing displays. This includes ultra-slim structural design, hidden cable management for wire-hanging systems, dual-screen synchronization, and specialized thermal management to ensure panels operate reliably under direct sunlight and continuous 24/7 use.

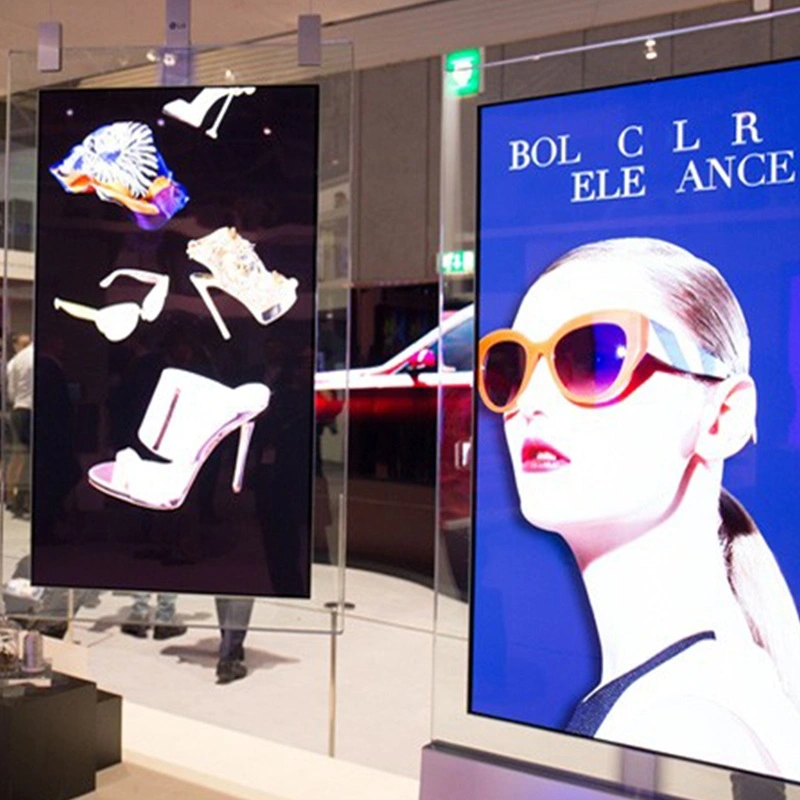

Luxury Retail & Showrooms
High-brightness hanging displays showcase premium products like fashion and accessories with crystal-clear elegance to attract high-end clientele.

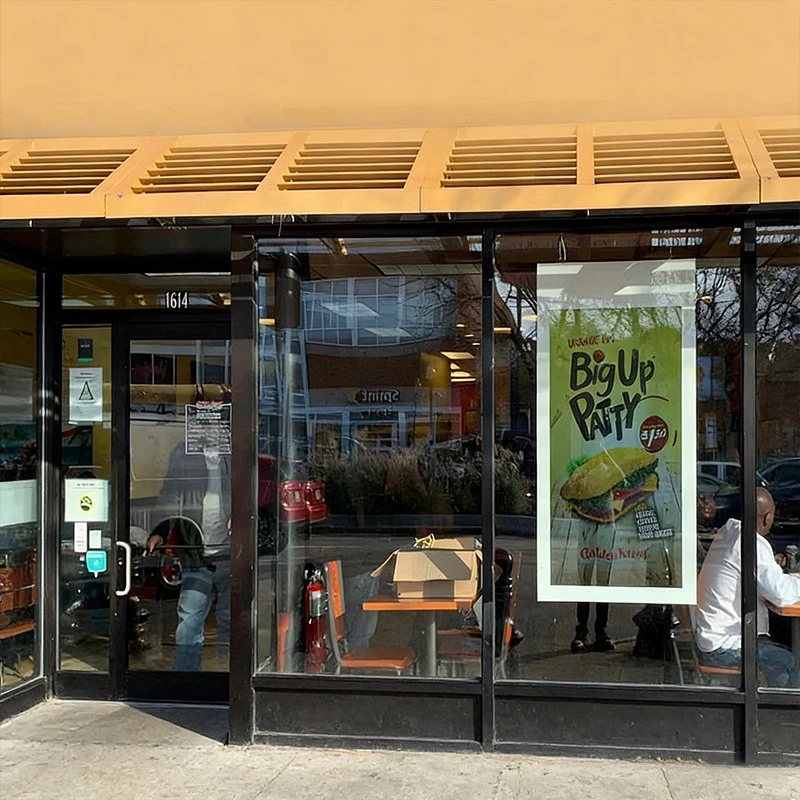

Quick Service Restaurants
Dynamic window-facing digital posters that grab the attention of passersby with vibrant food promotions and limited-time offers.

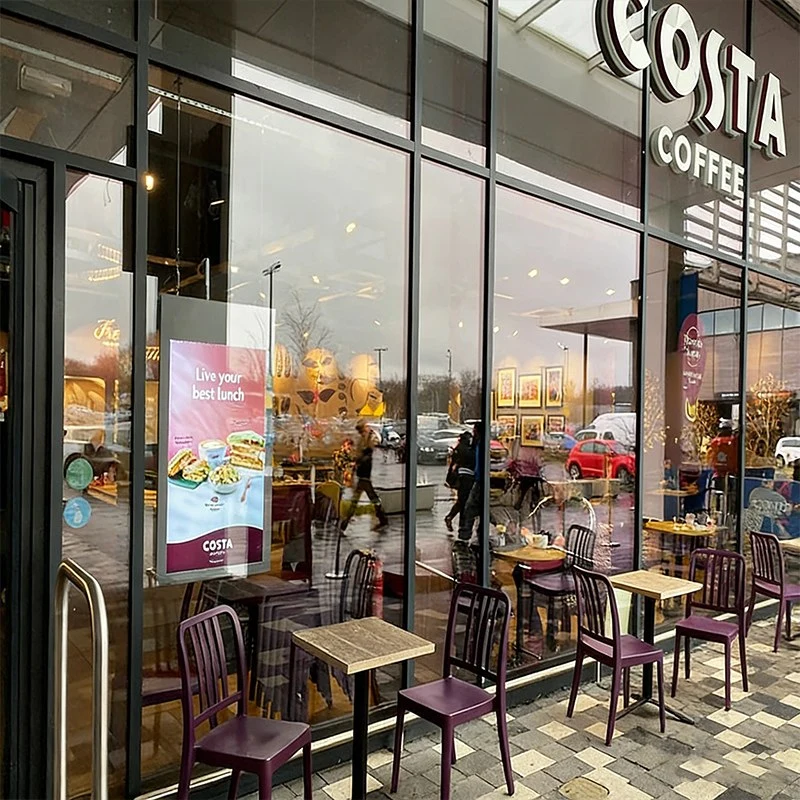

Coffee Shops & Cafes
Enhance the storefront aesthetic while displaying seasonal menus and meal combos to drive foot traffic and boost daily sales.
| Display parameter | |
| The following technical parameters are based on a 43-inch model QM-43EG1. If you need technical parameters for other sizes, please contact Qtenboard. |
|
| Brand | Qtenboard |
| Model | QM-43EG1 |
| Screen Size | 43inch |
| Resolution | 1920*1080，2K； 3840*2160，4K. |
| Angle of view | 178° |
| Contrast ratio | 1200:1 |
| Display rate | 16:9 / 9:16 |
| Display Area | 941.1mm*530mm |
| Brightness | ≥450cd/m2（Optional 350cd/m2 and 700cd/m2) |
| Refresh rate | 60HZ |
| Response Time | 6ms |
| Color | 16.7M(8-bit) / 1.07B(10-bit) |
| System Configuration | |

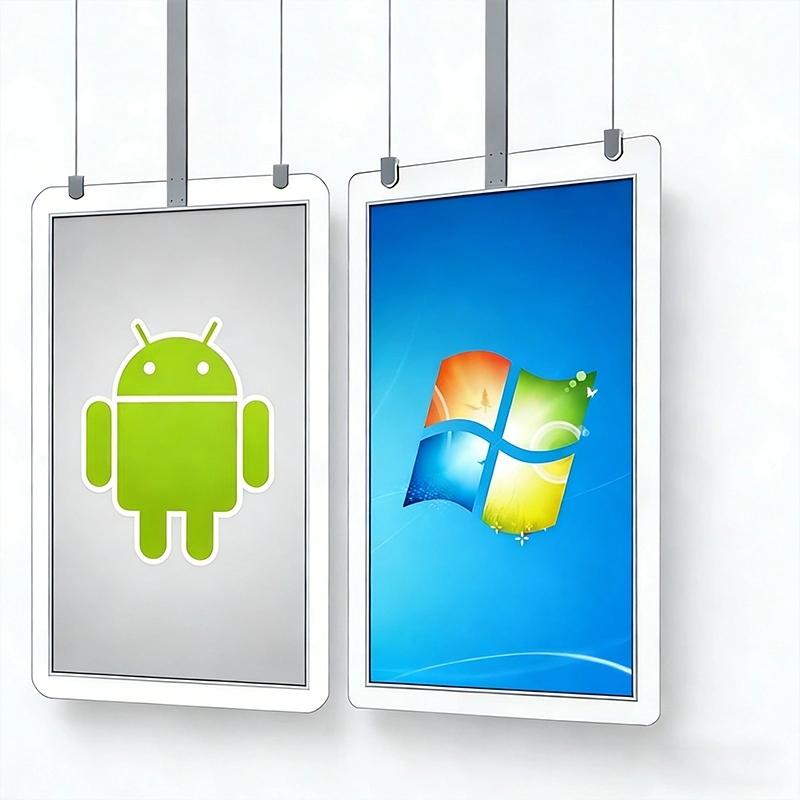

| Operation system | Android |
| Version | 9.0 / 11.0 / 13.0 / 14.0 / 16.0 |
| CPU | A55×8 / A55×4 Cortex-A73×4 Cortex-A53×4 + Cortex-A72×4 |
| GPU | G52 |
| RAM | 1 / 2 / 4 /6 / 8 GB |
| Storage Memory | 8 / 16 / 32 / 64 / 128 GB |
| Interface | HDMI One Output |

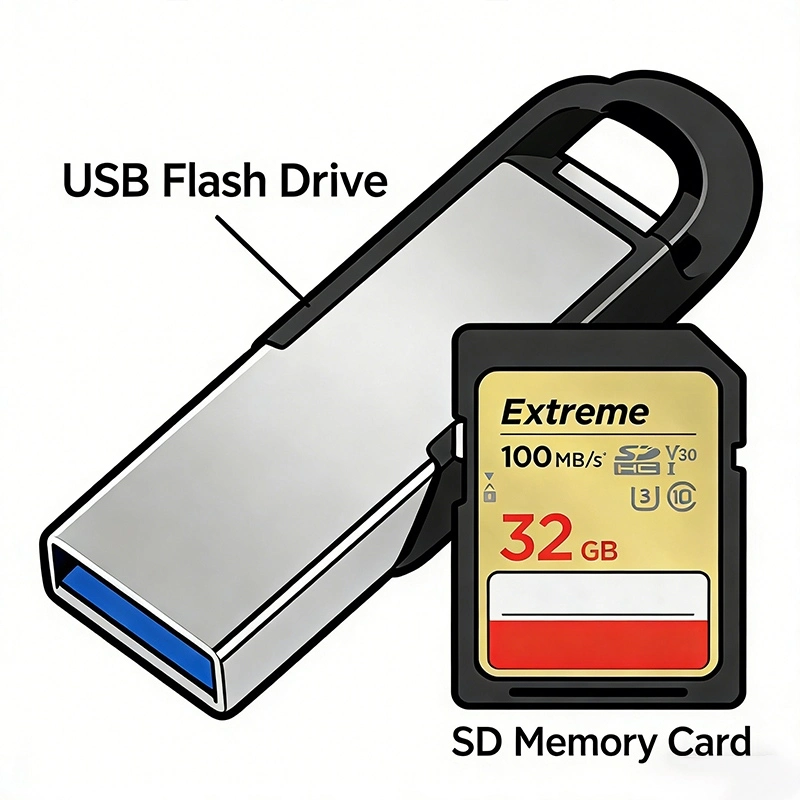

| TF Card | Expanded Up to 64GBTF Card |
| Network Interface | One RJ45 1000M Adaptive Ethernet Port |
| 3G/4G Optional&Match | Support Optional |
| USB | USB 2.0*1 USB 3.0*1 |
| WIFI & Bluetooth | Built in WIFI（2.4G/5G single-signal / Dual-Screen Wi-Fi 6）& BT 4.2 / 5.0 / 5.4 |
| System Function | |
| Decoding Capability | Supports 2/4K video and picture decoding and playback |
| Software Application | Support to install the third-party software |
| Language | English etc language |
| Boot Animation | Support to customize |
| Play Mode |
Audio：MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP etc Picture：JPG、BMP、PNG etc Video：AVI，rm，rmvb， MKV，WMV，MOV，MP4 etc |
| Electrical features | |
| Scenarios | Indoor |
| Rated Voltage | AC100V-240V 50/60HZ |
| Maximum Power | ≦80W |
| Temperature | 0-60 degrees Celsius |
| Humidity | 65% |
| Install Type | Hang |
| Feature | Description |
|---|---|

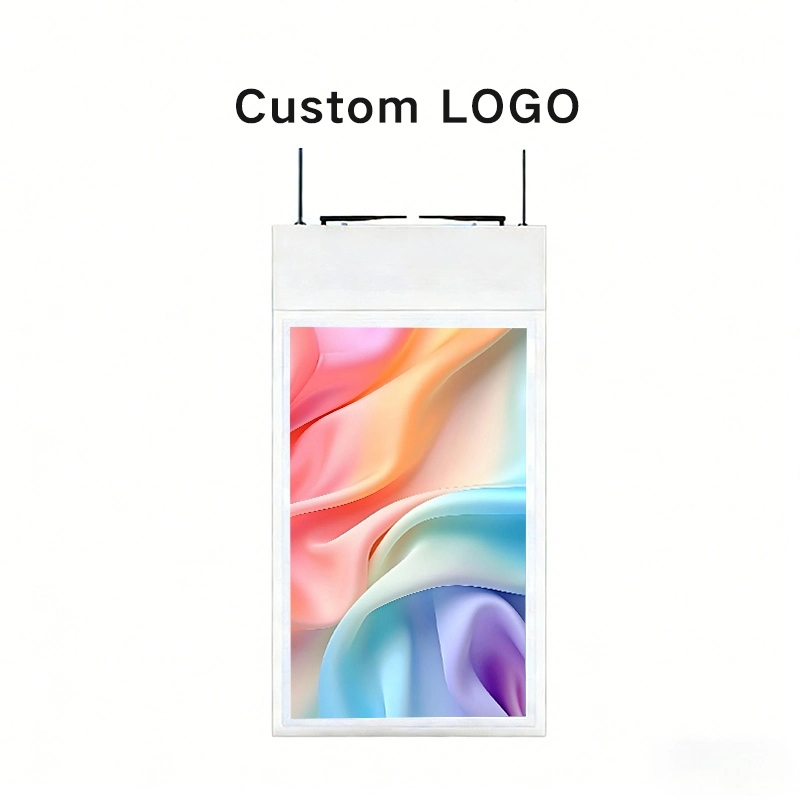

| Brand Logo & Hardware Customization | Support for UI boot logos. The Metal Frame model allows for physical logo silk-screening or laser etching to enhance branding. |
| Independent Dual-Screen Display | Configurable to show different content on each side (e.g., street-facing ads vs. indoor-facing store information) via synchronized CMS. |
| High Brightness & Sunlight Readability | Customizable brightness (350 to 700 nits) specifically designed for window storefronts to ensure clear visibility under direct sunlight. |

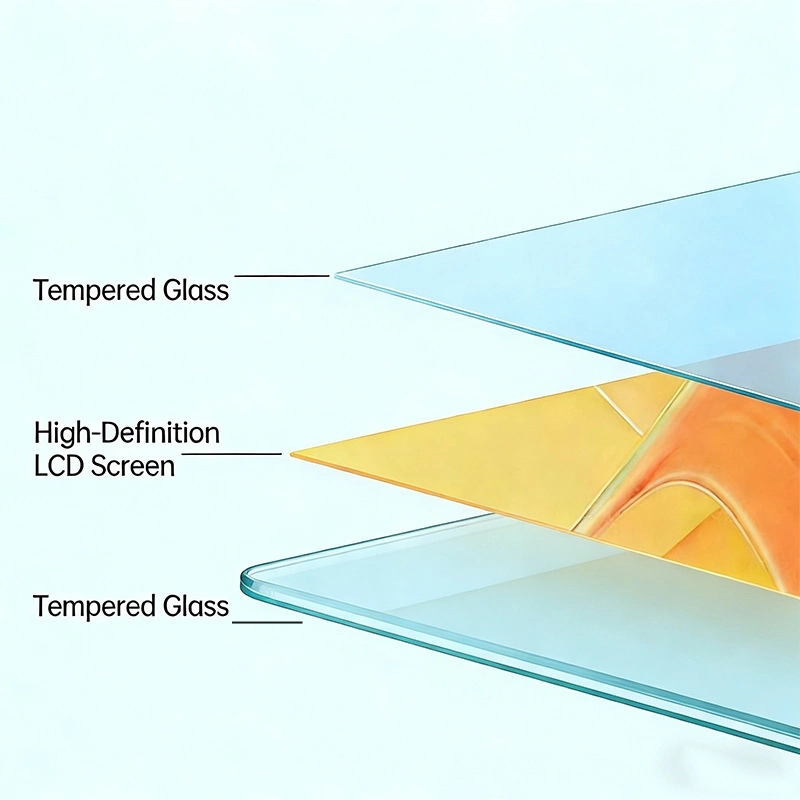

| Premium Material Options | Choose between an "All-Glass" frameless design for a minimalist aesthetic or a "Metal Hardware" enclosure for durability and branding. |

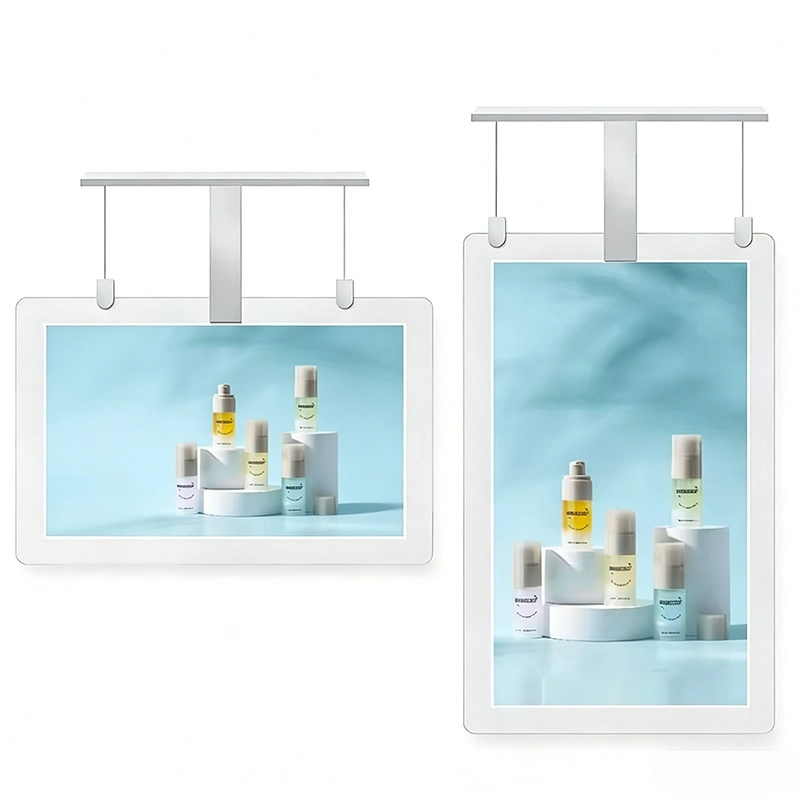

| Wire-Hanging & Ceiling Integration | Customizable cable lengths and ceiling mount kits to fit different window heights while maintaining a clean, "floating" visual effect. |
| SN Tracking & Batch Management | Each unit is assigned a unique serial number for production tracking, simplified maintenance, and large-scale retail deployment control. |
| Professional Retail Solutions | Tailored designs for luxury boutiques, real estate window displays, banks, and shopping mall corridor advertising. |
| CKD/SKD Supply Options | Support for complete units or CKD/SKD delivery to reduce shipping costs and meet local assembly or tender requirements. |
| Thermal & Safety Engineering | Specialized heat dissipation for sun-exposed window environments and load-bearing safety testing for the suspended wire-hanging system. |

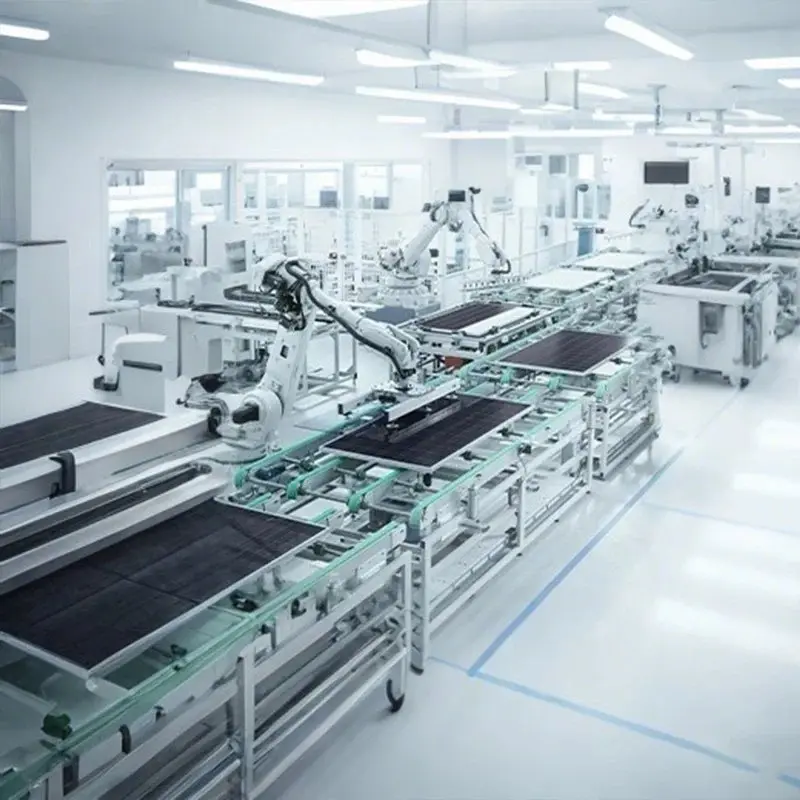

Industrial Robot Operations — Robotic arms handle welding, placement, and installation.
Qtenboard Team — Engineers, production staff, quality inspectors, salespeople - we are together.

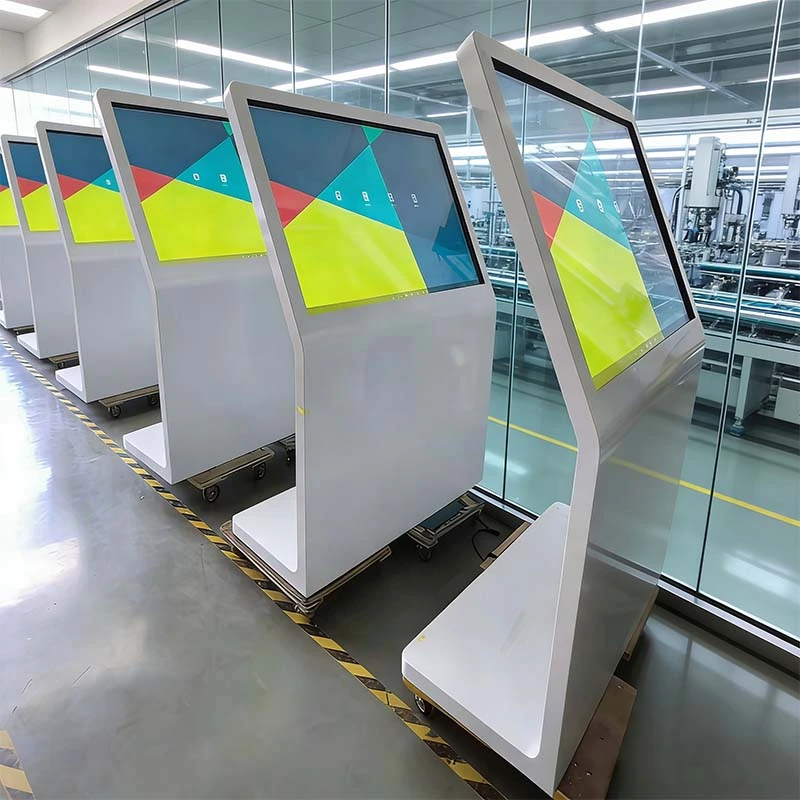

Product aging test — A rigorous 48-hour aging test ensures that every product leaving the factory is in good working order.

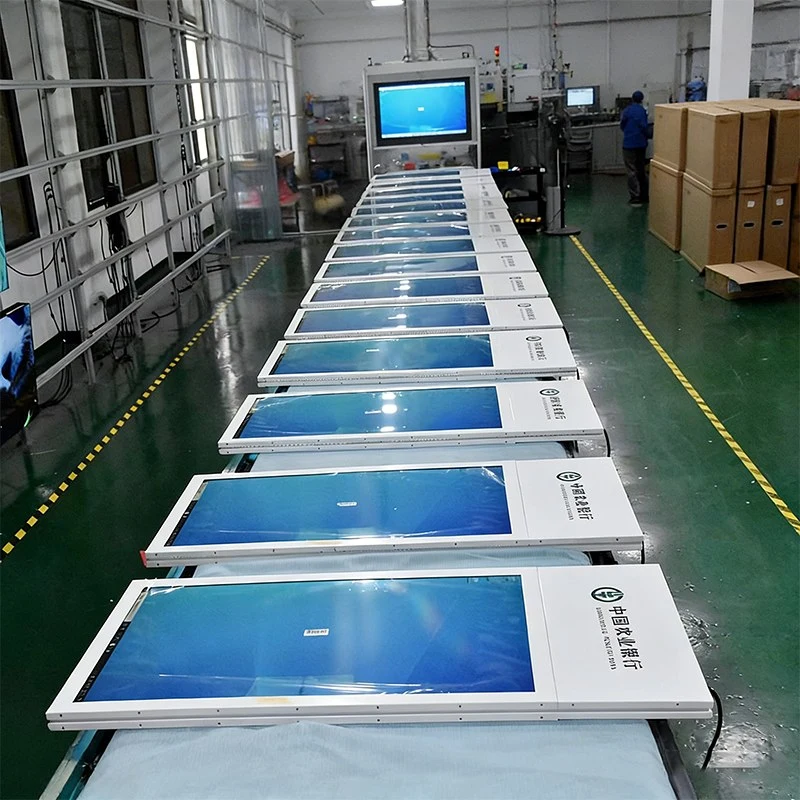

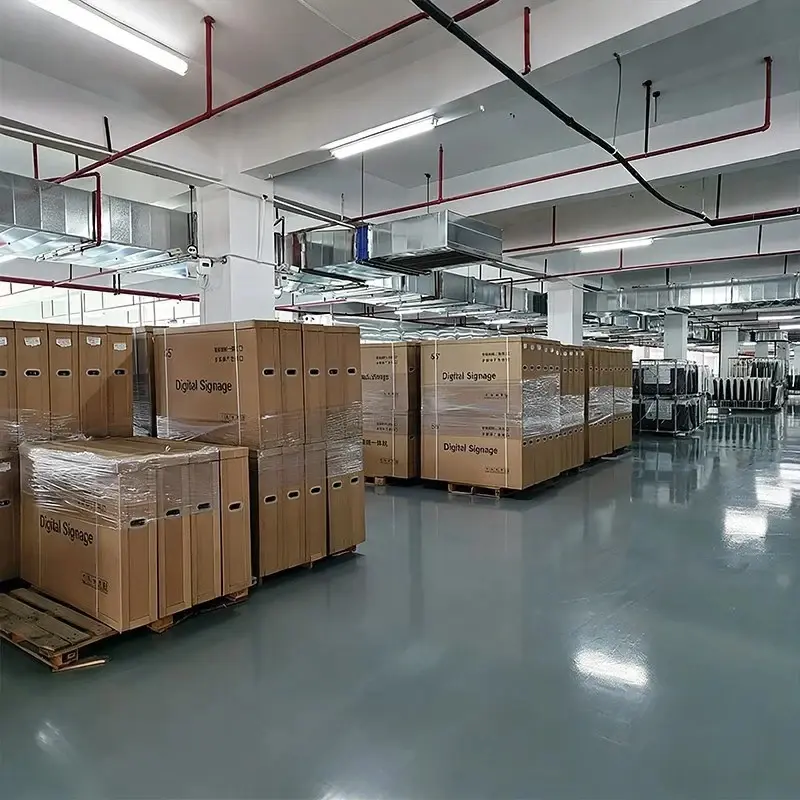

Warehouse — 48-hour With a daily production capacity of 200 units, we can meet the needs of most projects.

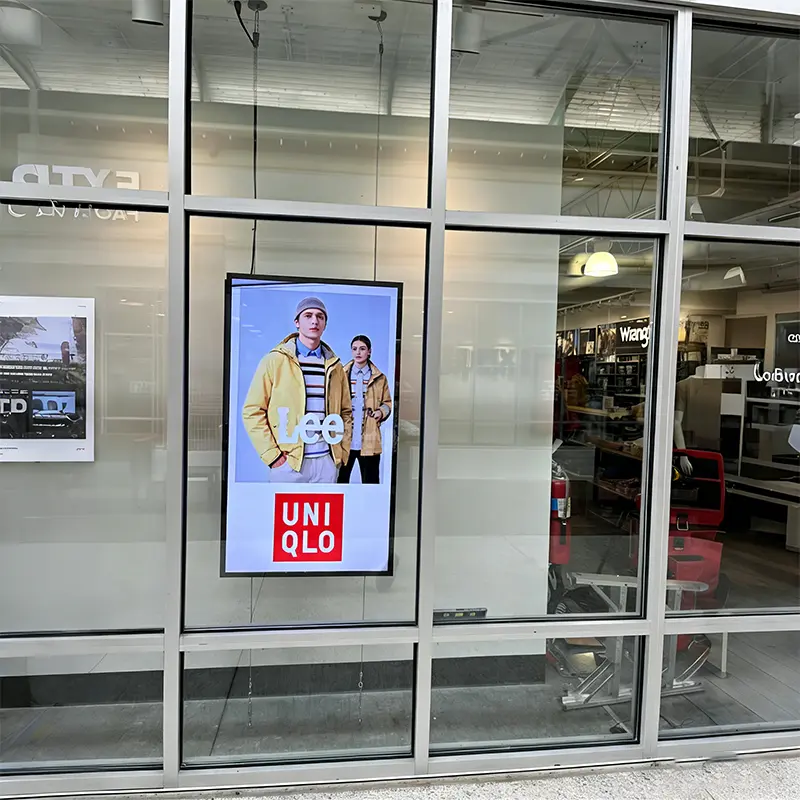

Window Display Screen — Installed in UNIQLO storefronts in the Netherlands to attract foot traffic and showcase brand visuals and promotional content.

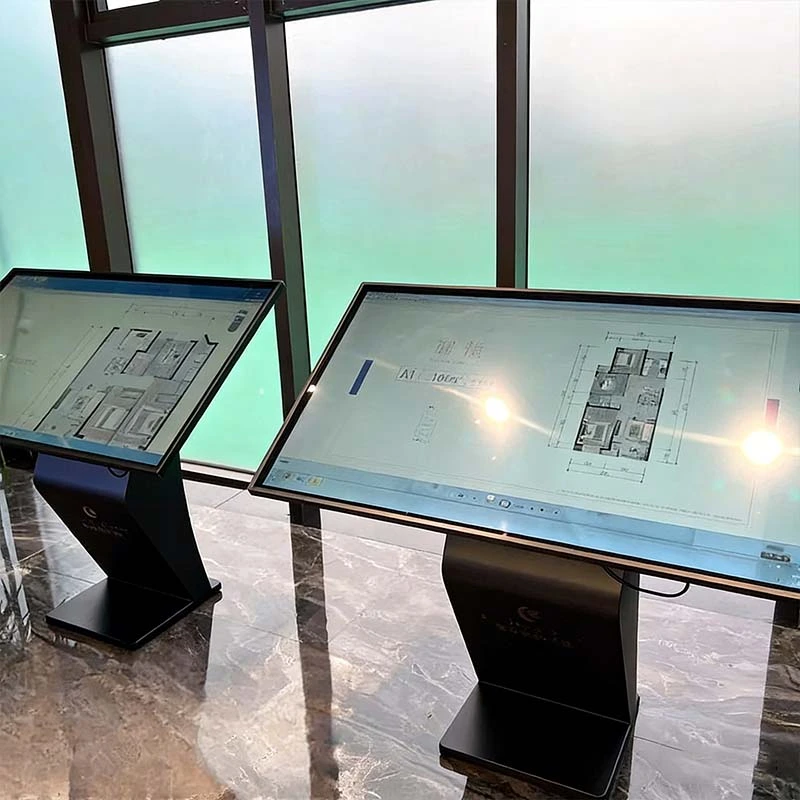

K-Style Digital Kiosk — Deployed in real estate sales centers in the UK for property promotions, project introductions, and interactive customer engagement.

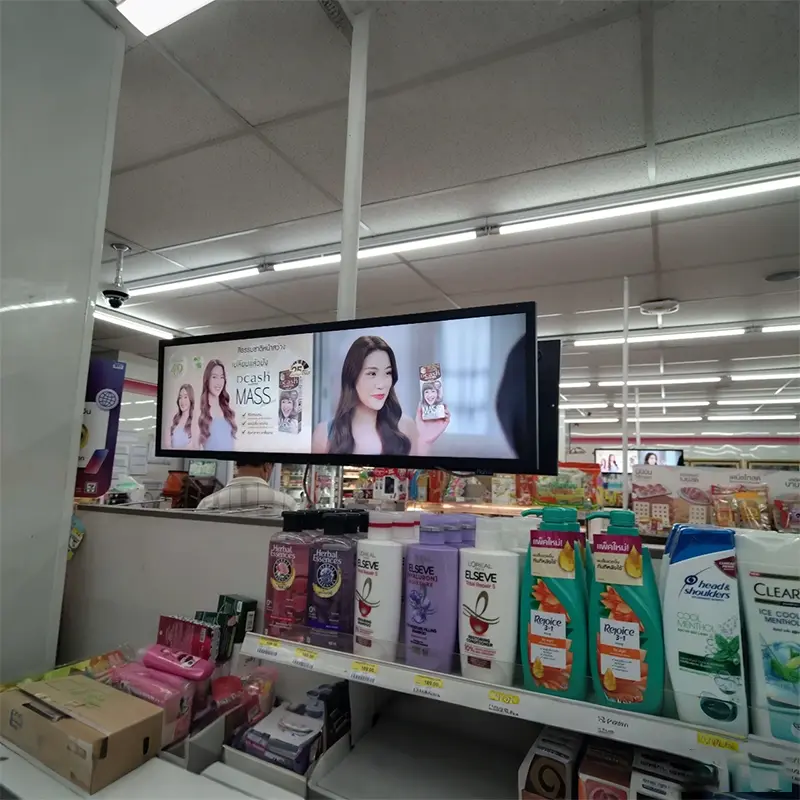

Double-Sided Digital Signage — Installed in 7-Eleven convenience stores in Thailand, delivering high-visibility promotions and brand messaging from both sides.

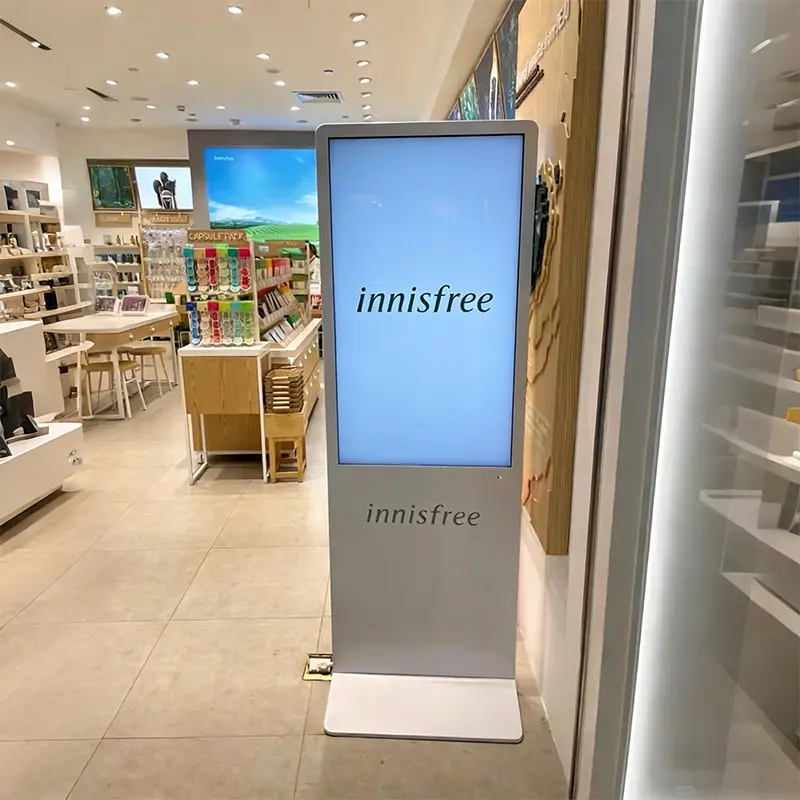

Floor Standing Digital Signage — Used in Innisfree brand stores in Vietnam for product launches, promotional campaigns, and seasonal marketing.

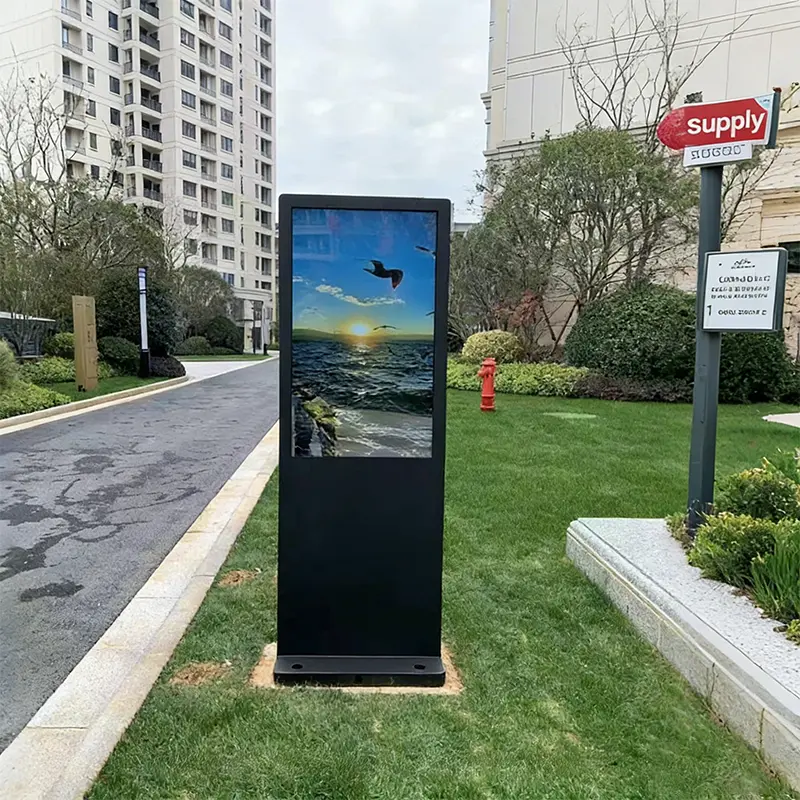

Outdoor Floor Standing Digital Signage — Deployed within residential communities in Singapore for public notices, property announcements, and community information.

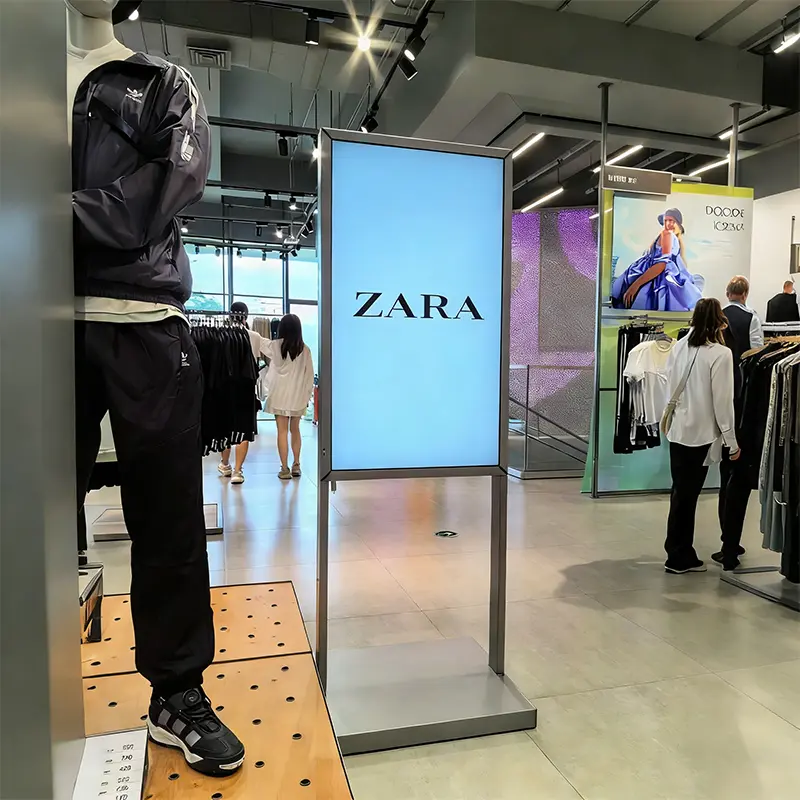

Floor Stand Poster Display — Used in ZARA stores in Hong Kong for fashion campaigns, new arrivals, and in-store branding enhancement.

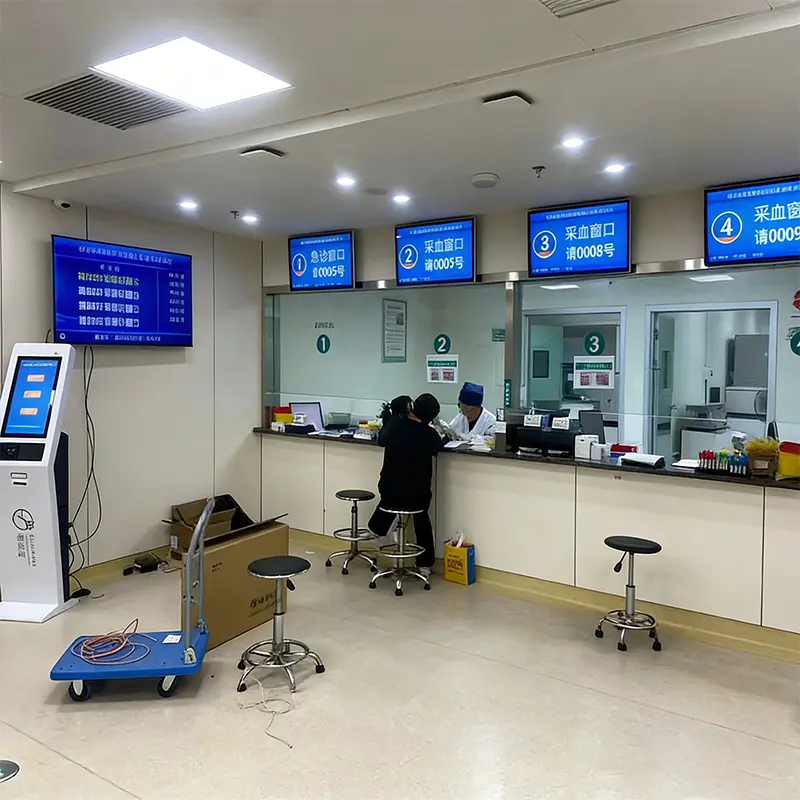

Queue Management System & Display Screens — Applied in hospitals in China to manage patient flow, display queue numbers, and improve service efficiency.
StandbyMe TV — Used by individual users in Malaysia for home entertainment, flexible screen sharing, and mobile lifestyle scenarios.

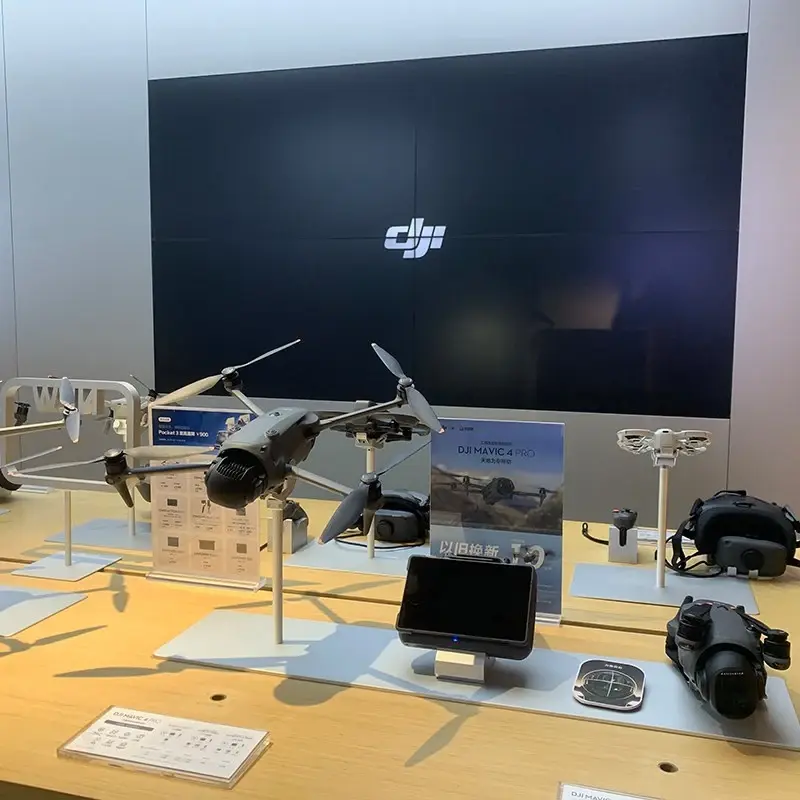

LCD Video Wall — Installed in DJI brand stores in Japan, creating immersive visual experiences for product demonstrations and brand storytelling.
We provide comprehensive services tailored for wayfinding and information kiosk projects, helping shopping malls, libraries, office buildings, and public spaces deploy systems smoothly, ensure reliable operation, and scale efficiently:
1. Pre-Sales Solution Consultation
Professional guidance on kiosk selection, screen size, mounting method, wayfinding structure, directory design, and system architecture based on your space.
2. After-Sales Service & Maintenance
Complete support for installation, system setup, spare parts supply, and long-term maintenance to keep information kiosks running reliably.
3. Technical Support & System Optimization
Remote and on-site assistance including software debugging, touch calibration, firmware updates, and performance optimization for wayfinding systems.
4. OEM/ODM Customization Solutions
Flexible customization of UI design, navigation logic, content modules, hardware structure, and kiosk appearance to match your brand and environment.
5. Content Management & CMS Training
Practical training for administrators on content updates, map management, directory maintenance, and daily system operation.
6. Global Logistics & Delivery
Secure worldwide shipping with reinforced packaging, flexible delivery options, and customs assistance to ensure safe and on-time arrival.
7. Multi-Location & Project Deployment Support
Full support for large-scale wayfinding projects, including batch production, phased delivery, installation coordination, and multi-site rollout planning.
8. Remote Device & Content Management
CMS or third-party platform support for real-time device monitoring, remote content updates, centralized control, and system status tracking.
9. Warranty & Long-Term Reliability
Standard warranty with optional extended coverage, including genuine replacement parts, ensuring stable operation in public and high-traffic environments.
10. Ongoing Optimization & Upgrade Support
Continuous technical assistance for system upgrades, feature expansion, and performance improvements as your wayfinding needs evolve.
