A simple advertising placement system, which supports the establishment of manager accounts and sub-accounts, allowing for smooth and efficient advertising placement.
Elevator-specific advertising display, narrow vertical design, HD screen, perfect for small spaces and effective content delivery
Qtenboard Elevator Lift Digital Signage
Our factory focuses on producing small-screen elevator advertising displays with stable quality and reliable performance. With strong manufacturing lines in Shenzhen and Guangzhou, we offer HD panels, precise assembly, and fast delivery. We support full OEM/ODM customization.
Each display is built for durability, energy efficiency, and long-term use in high-traffic elevator environments. With strict quality control and an experienced engineering team, we ensure consistent performance and modern design.
| Display parameter | |
| The following technical parameters are based on a 55-inch model. If you need technical parameters for other sizes, please contact Qtenboard. | |
| Brand | Qtenboard |
| Model | QM-5515GP |
| Screen Size | 55inch |

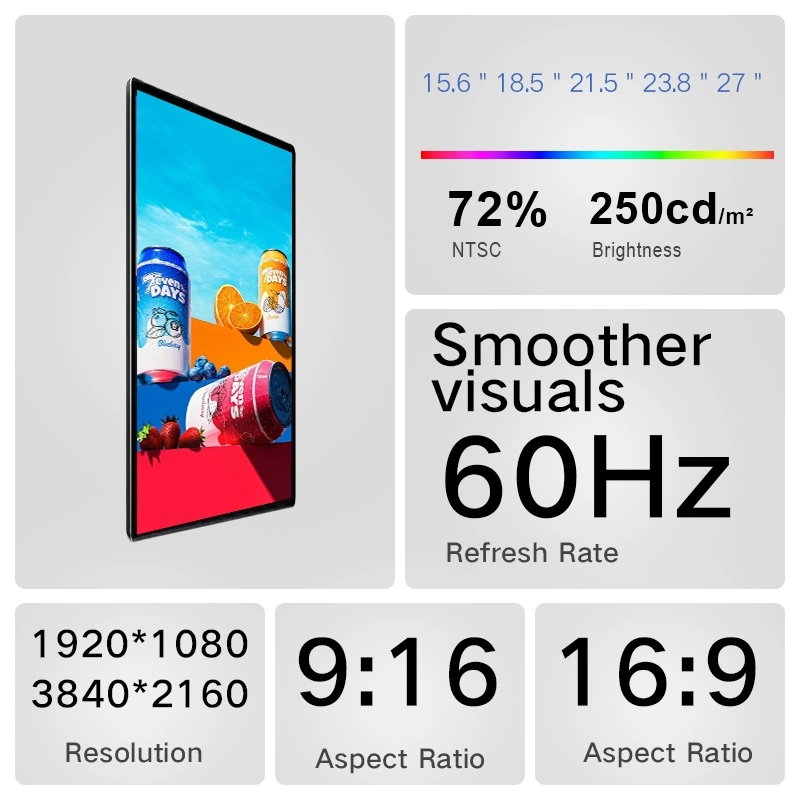

| Resolution | 1920*1080，2K； 3840*2160，4K. |
| Angle of view | 178° |
| Contrast ratio | 3000:1 |
| Display size | 1211.6×682.4mm（H×V） |

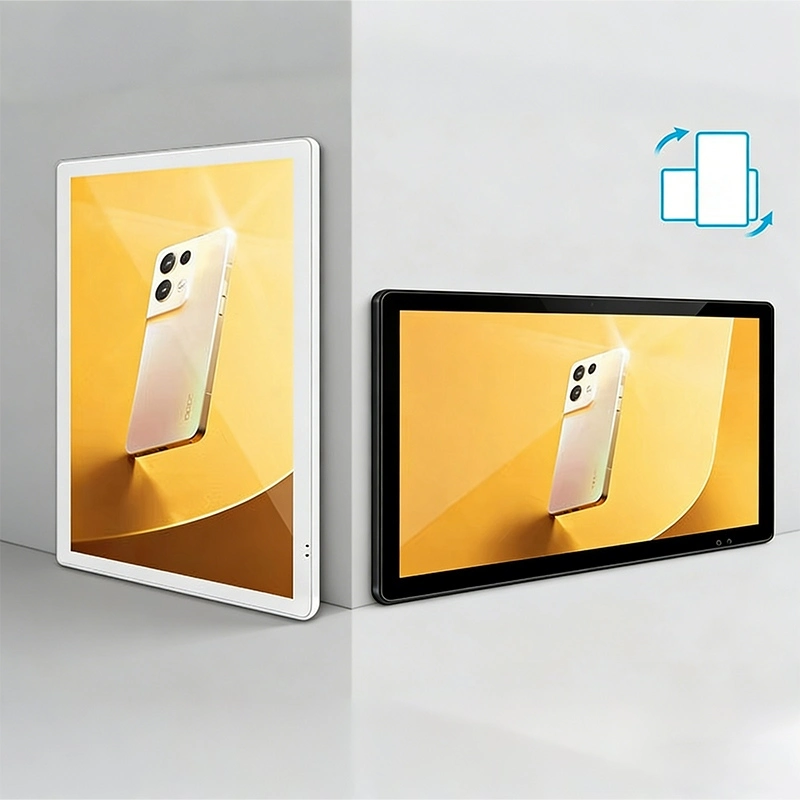

| Display rate | 16:9 / 9:16 |
| Back light | LED |
| Brightness | ≥300cd/㎡ |
| Refresh rate | 60HZ |
| Color | 16.7M(8-bit) / 1.07B(10-bit) |
| System configuration | |
| Operation system | Android |
| Version | 9.0 / 11.0 / 13.0 / 14.0 / 16.0 |
| CPU | A55×8 / A55×4 Cortex-A73×4 Cortex-A53×4 + Cortex-A72×4 |
| GPU | G52 |
| RAM | 1 / 2 / 4 /6 / 8 GB |
| Storage Memory | 8 / 16 / 32 / 64 / 128 GB |

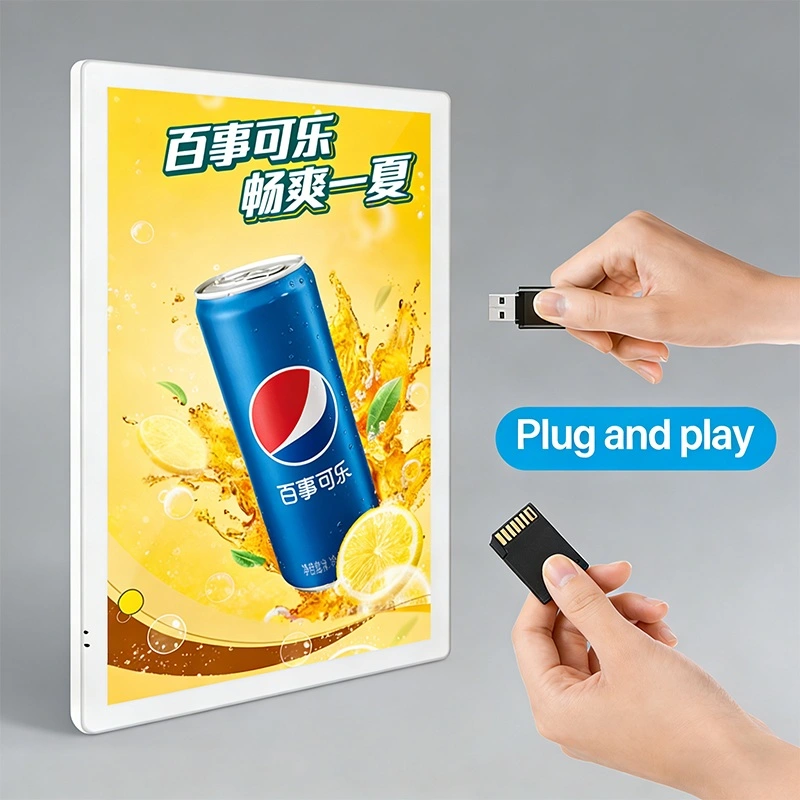

| Interface | HDMI In*1, USB3.0*2, TF card*1, RJ45*1 (Optional) |
| Audio Interface | 3.5mm *1 |
| Network | 1pc, 100 / 1000M |
| WIFI & Bluetooth | Built in WIFI（2.4G/5G single-signal / Dual-Screen Wi-Fi 6）& BT 4.2 / 5.0 / 5.4 |
| System Function | |
| Decoding Capability | Supports 2/4K video and picture decoding and playback |
| Software Application | Support to install the third-party software |
| Language | English etc language |
| Boot Animation | Support to customize |
| Infrared Remote Control | Operate system by remote control |
| Audio Function | Support left/right channel output,built-in double 8Ω power amplifier |
| Power-On / Off | Remote control/timing/network wake-up/self-start |
| System Authorization | Allow root permission and customize software development |
| Mouse Mode | Support wired/wireless mouse or use keyboard |
| System Update | Support local and remote upgrade |
| Play Mode |
Audio：MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP etc Picture：JPG、BMP、PNG etc Video：AVI，rm，rmvb， MKV，WMV，MOV，MP4 etc |
| Typing | Standard Android keyboard as default,can install the third party typing |
| More Functions | Follow instruction manual/video or contact supplier |
| Software Function（CMS Optional） | |
| Background Support | Web/mobile IE（Local network/WAN） |
| Play Mode | Networking / Standalone |
| Play Support | Video/picture/subtitles/PPT/web/weather/clock etc mixture to play |
| Smart Splicing | Support custom playing modes to splice as setting |

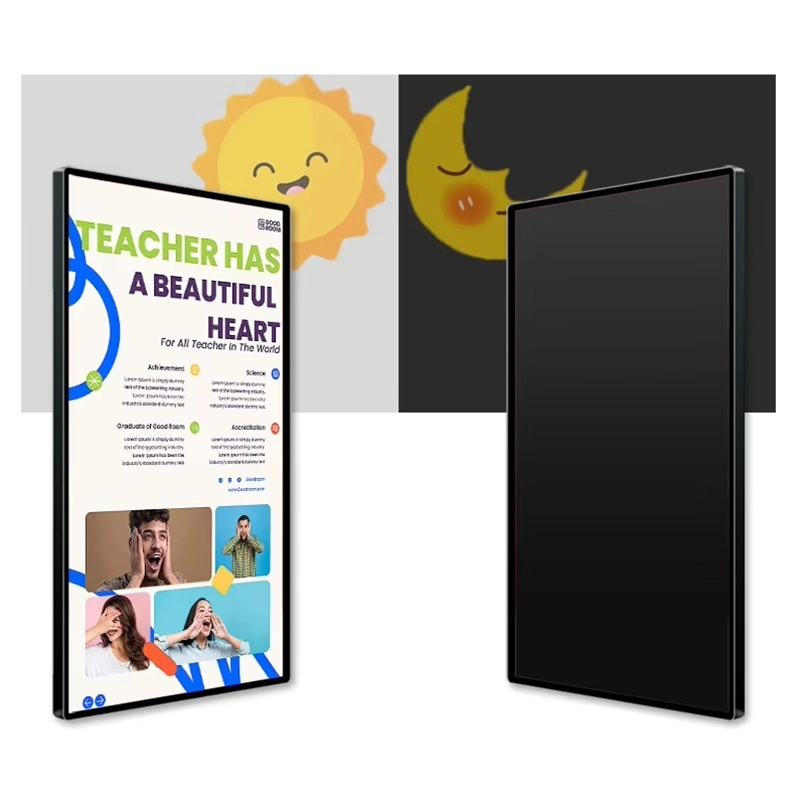

| Timing Function | Support to set playing custom program in time period |
| Terminal Administration | Administrator can create and modify account for level-to level administration |
| More Function | Follow instruction manual / video or contact supplier |
| Machine Parameter | |

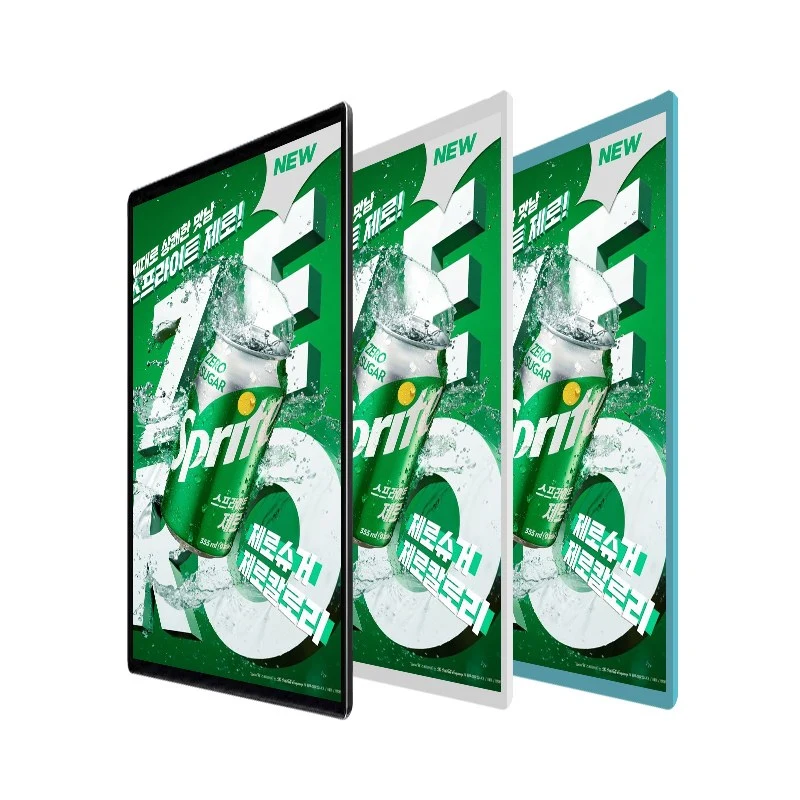

| Color | Black / White / Others |
| Frame Material | Aluminum(Oxidized wire drawing) |
| Body Material | Metal cold rolled steel plate (Metal coating) |

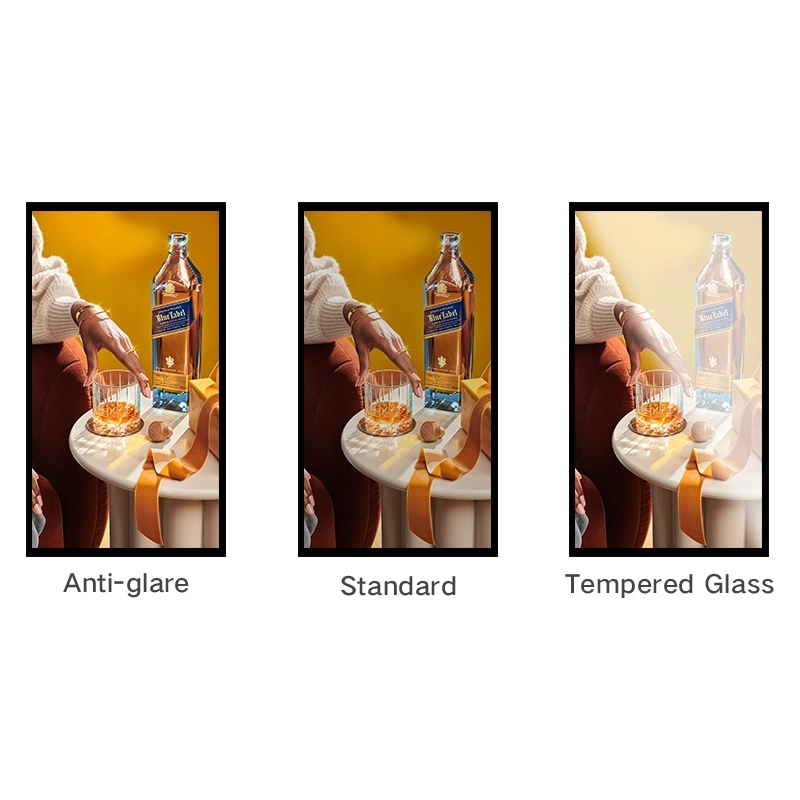

| Surface Material | 3mm tempered glass(Physical) |

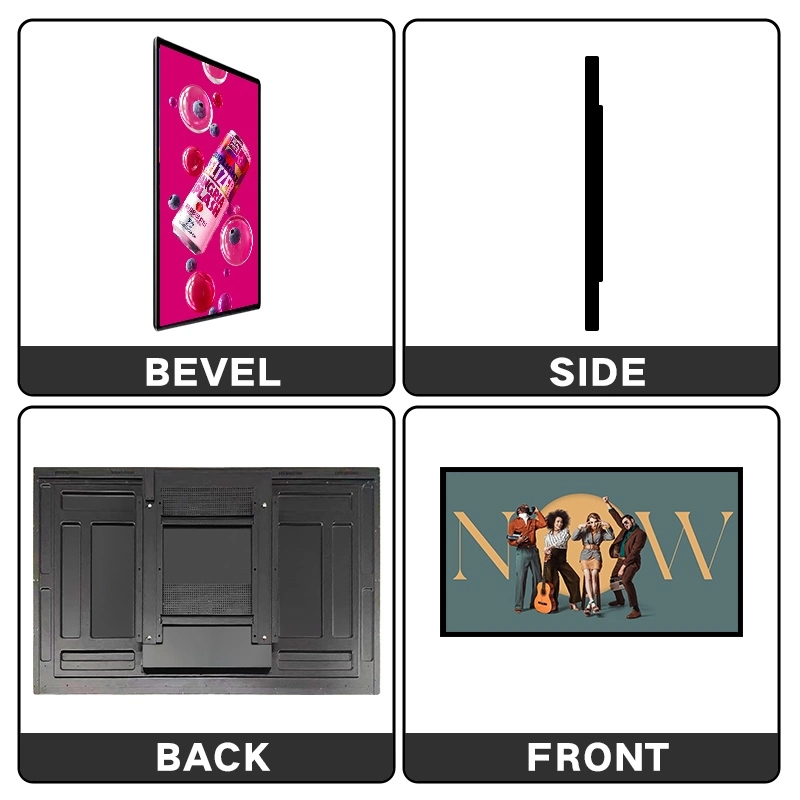

| Product Size | 1246.6*717.4*60.1mm (For reference only) |
| Packing Size | 1380*135*855mm(For reference only) |
| Packing Material | Neutral carton / Wooden frame / Wooden box |
| Net / Gross Weight | 30KG/35KG (For reference only) |

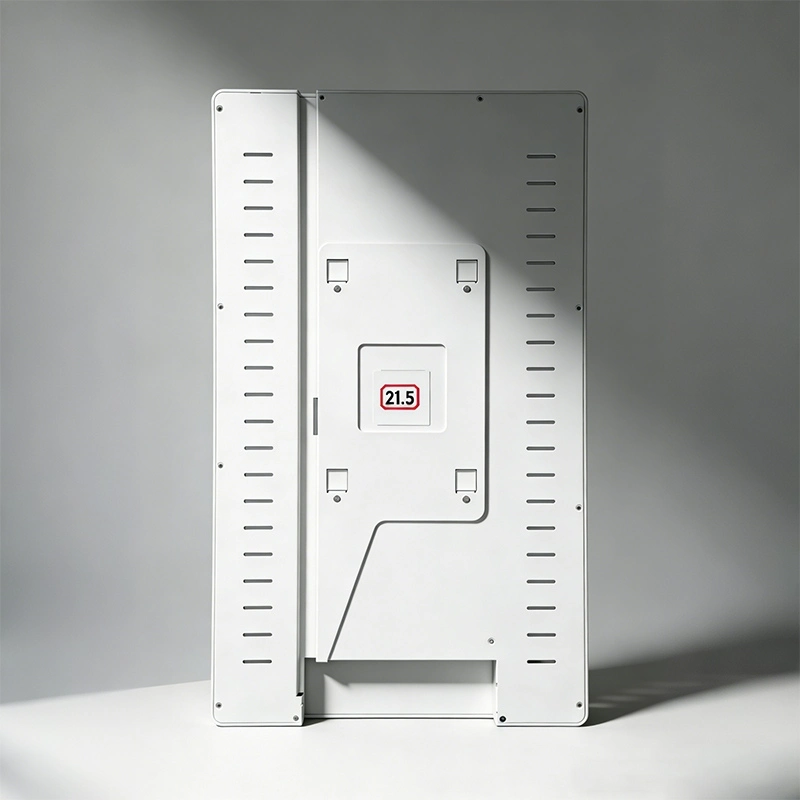

| Install Ways | Mount-on Wall / Embedding / Hang / Bracket |
| Electrical features | |
| Scenarios | Indoor |
| Rated Voltage | AC110-220V |
| Stand by Power | ≦1W |
| Rated Power | ≦85W |
| Suitable Environment | Temperature‐0℃~55℃ / Humidity 10%RH~90%RH |
| Storage Environment | Temperature‐5℃~60℃ / Humidity 10%RH~90%RH |

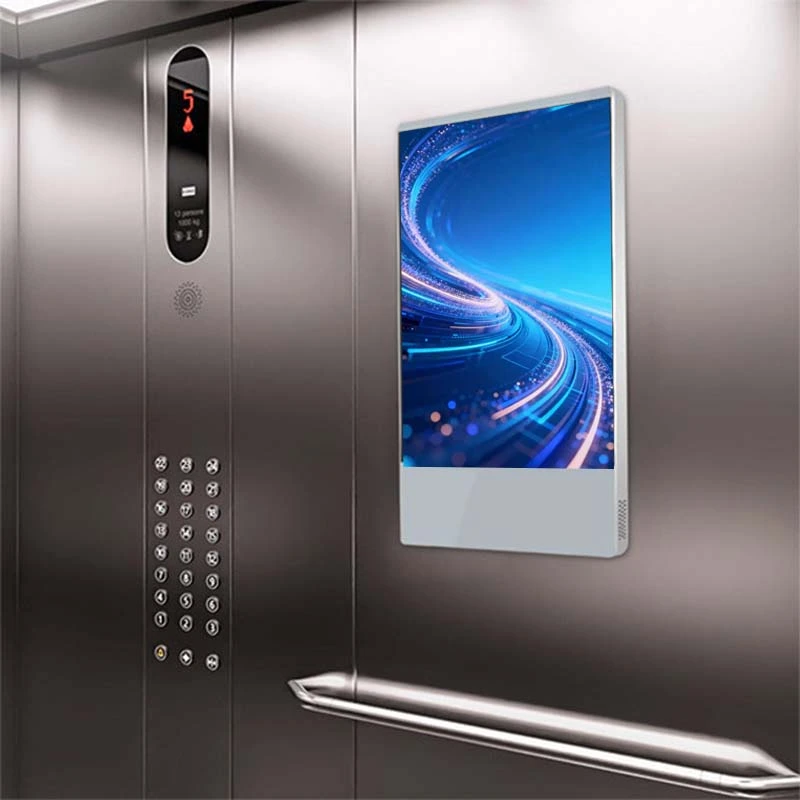

Retail and Shopping Malls - Display ads and promotions in elevators to engage customers and boost store foot traffic.

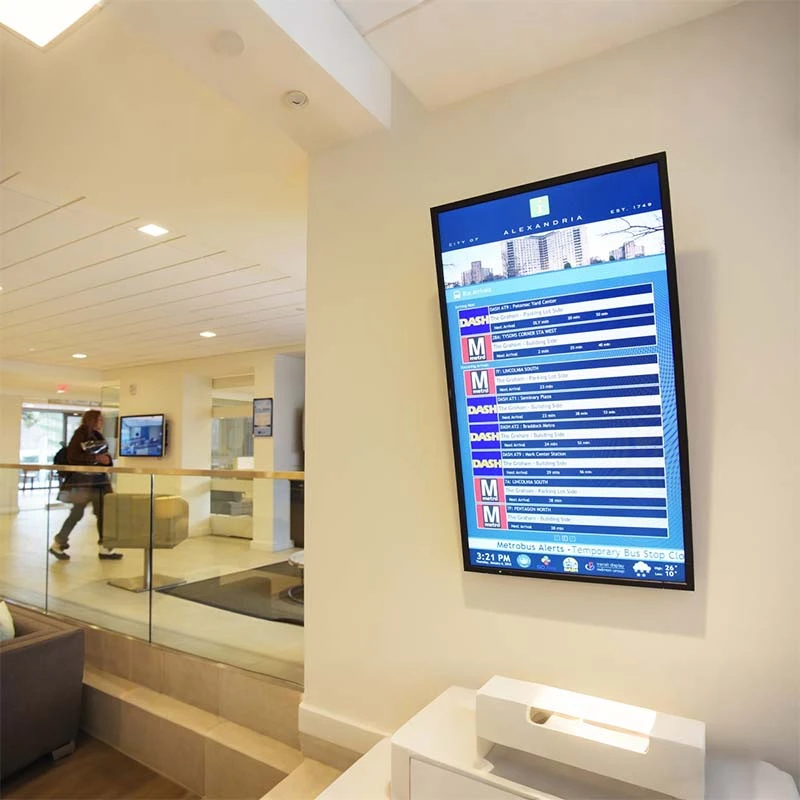

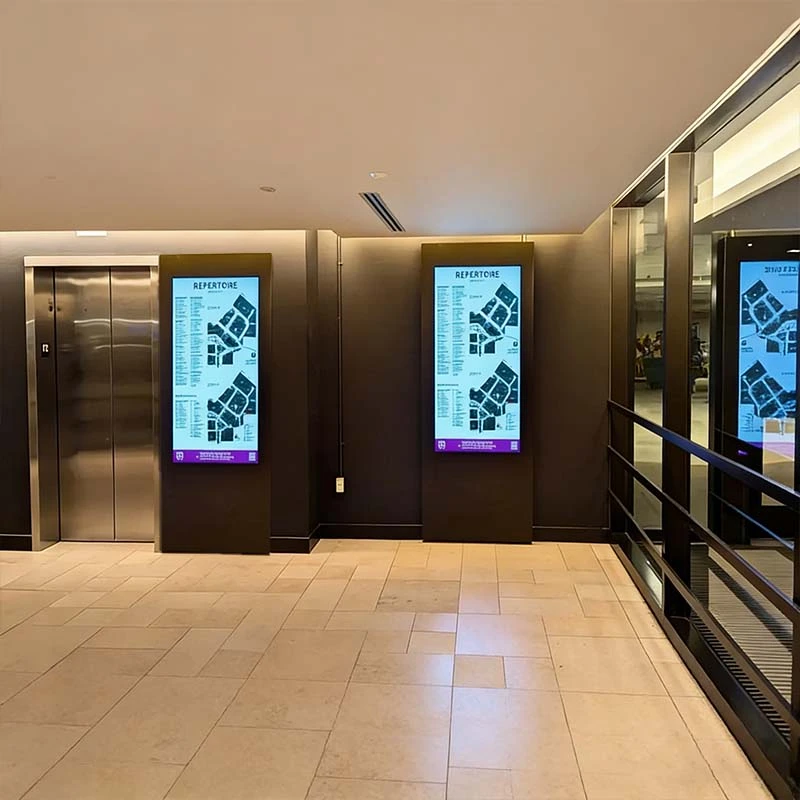

Corporate Offices and Buildings - Share company updates and ads in elevators to keep employees and visitors informed.
Residential Buildings- Display community news, local services, and event information to residents.
| Feature | Description |
|---|---|
| Brand Logo & Boot Animation | Personalize your product with custom logos and startup animations for full brand identity. |
| UI/OS Deep Customization | Tailor system interface, themes, and functionality to match your brand’s unique requirements. |
| Chassis & Mold Modification | Modify device enclosures or design new molds for differentiated product appearance. |
| Packaging Design | Custom packaging to suit your branding and global shipping needs. |
| SN Tracking & Batch Production | Each unit tracked with a unique serial number to ensure quality and manage after-sales efficiently. |
| White Label Services | Offer products ready to market under your own brand name. |
| CKD/SKD Supply Capability | Flexible shipment options: complete, semi-knocked down, or fully assembled units. |
| Software Development & SDK/API Support | Integrate third-party applications or develop proprietary software to meet specific project needs. |
Industrial Robot Operations — Robotic arms handle welding, placement, and installation.
Qtenboard Team — Engineers, production staff, quality inspectors, salespeople - we are together.
Product aging test — A rigorous 48-hour aging test ensures that every product leaving the factory is in good working order.
Warehouse — 48-hour With a daily production capacity of 200 units, we can meet the needs of most projects.
K-Style Digital Kiosk — Deployed in real estate sales centers in the UK for property promotions, project introductions, and interactive customer engagement.
Double-Sided Digital Signage — Installed in 7-Eleven convenience stores in Thailand, delivering high-visibility promotions and brand messaging from both sides.
Floor Standing Digital Signage — Used in Innisfree brand stores in Vietnam for product launches, promotional campaigns, and seasonal marketing.
Outdoor Floor Standing Digital Signage — Deployed within residential communities in Singapore for public notices, property announcements, and community information.
Window Display Screen — Installed in UNIQLO storefronts in the Netherlands to attract foot traffic and showcase brand visuals and promotional content.
Floor Stand Poster Display — Used in ZARA stores in Hong Kong for fashion campaigns, new arrivals, and in-store branding enhancement.
Queue Management System & Display Screens — Applied in hospitals in China to manage patient flow, display queue numbers, and improve service efficiency.
StandbyMe TV — Used by individual users in Malaysia for home entertainment, flexible screen sharing, and mobile lifestyle scenarios.
LCD Video Wall — Installed in DJI brand stores in Japan, creating immersive visual experiences for product demonstrations and brand storytelling.
1. Pre-Sales Support
Our team provides professional guidance before purchase, helping customers select the right products, design solutions, and plan project layouts tailored to their needs.
2. After-Sales Service
From installation to ongoing maintenance, we ensure smooth operation and high uptime, addressing any technical issues promptly.
3. Technical Support
Expert assistance is available online or on-site, including troubleshooting, firmware updates, and performance optimization.
4. Customization Services
We offer flexible options for UI design, device color, software configuration, and hardware features to meet unique project requirements.
5. Training & Guidance
Operators and technicians receive hands-on training to maximize efficiency and fully leverage the capabilities of Qtenboard products.
6. Logistics & Delivery
Global shipping with secure packaging, timely delivery, and customs assistance ensures your products arrive safely and on schedule.
7. Project Assistance
Comprehensive support for large-scale deployments, including solution planning, installation supervision, and project management.
8. Remote Management
Through our CMS and monitoring tools, customers can manage content, track device status, and perform system updates remotely.
9. Warranty & Extended Support
Standard warranties with optional extensions, including replacement parts, ensure peace of mind and long-term reliability.
10. Emergency Response & Value-Added Services
Rapid response for critical issues, plus additional consulting, content design advice, and software upgrades to enhance your business impact.
