Name: Qtenboard OPS Module i7 13th Gen Windows 11 for Display
Brand: Qtenboard
Availability: InStock

Qtenboard OPS Module i7 13th Gen Windows 11 for Display

Windows10 / 11

CPU

Intel® Core™ i5 (10th Gen)

CPU

Intel® Core™ i7 (12th Gen)

CPU

Intel® Core™ i7 (13th Gen)

Technical specifications:

🔒 OPS Accessory Module

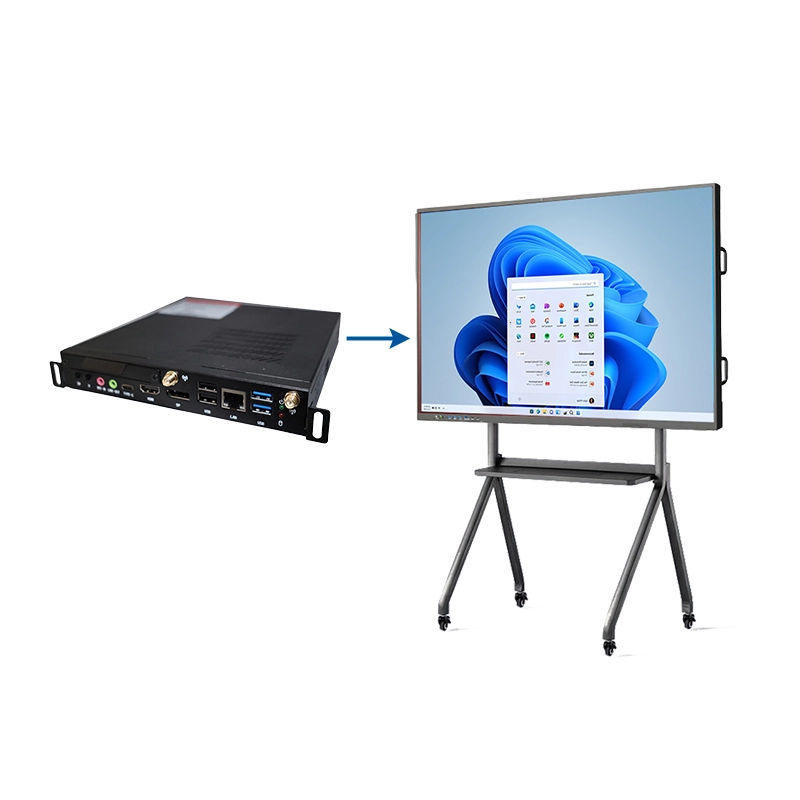

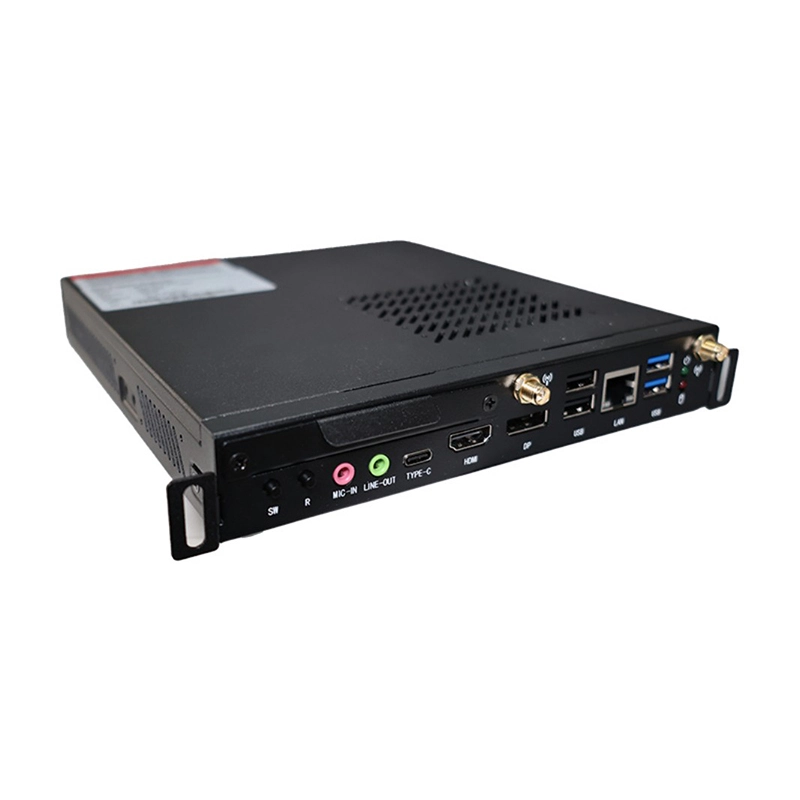

Qtenboard OPS Computer Module
Intel Core i5 / i7 · Windows 10 / 11

A plug-in compute module built for OPS-compatible interactive displays. Slide it in, power on, and your panel becomes a fully functional Windows PC — no cables, no clutter. Available with Intel Core i5 or i7 processors across 10th, 12th, and 13th generations.

Windows 10 / 11

CPU

Intel Core i5 / i7

Generation

10th / 12th / 13th

RAM

Up to 32GB DDR4

Storage

Up to 1TB NVMe

Display out

4K @ 60Hz

Key Features

Designed to extend the life of your display investment with minimal hassle.

🔌

Plug-and-play install

Slides directly into any standard OPS slot. No tools, no external power brick, no extra cables.

⚙️

i5 or i7 — your choice

Choose the performance tier that fits your budget. Both run full Windows smoothly for education and business use.

🔄

Modular upgrades

Swap or upgrade the module without replacing the display. Protects your existing hardware investment.

🔗

Rich connectivity

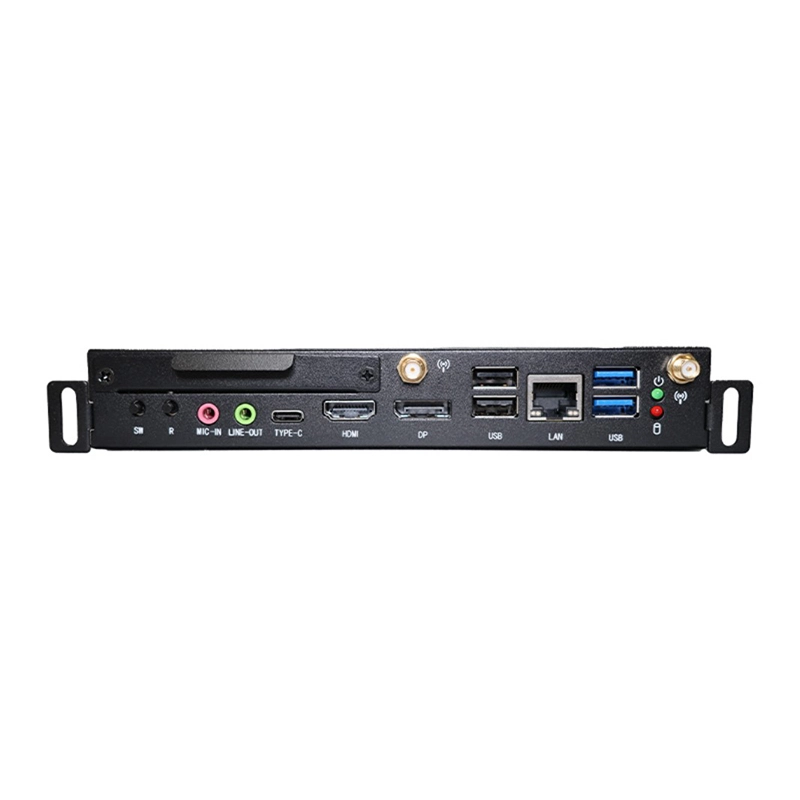

USB 3.1, USB-C, HDMI, DisplayPort, dual Gigabit LAN, and optional Wi-Fi — all in one compact slot-in unit.

🕐

24/7 stable operation

Low-power industrial design built for always-on deployment in classrooms, lobbies, and meeting rooms.

Where It's Used

Widely deployed across education and commercial environments.

Smart classrooms

Works seamlessly with interactive whiteboards and teaching panels to power modern smart classroom environments.

Meeting rooms

Drives high-resolution presentations and interactive collaboration as the core compute unit for conference displays.

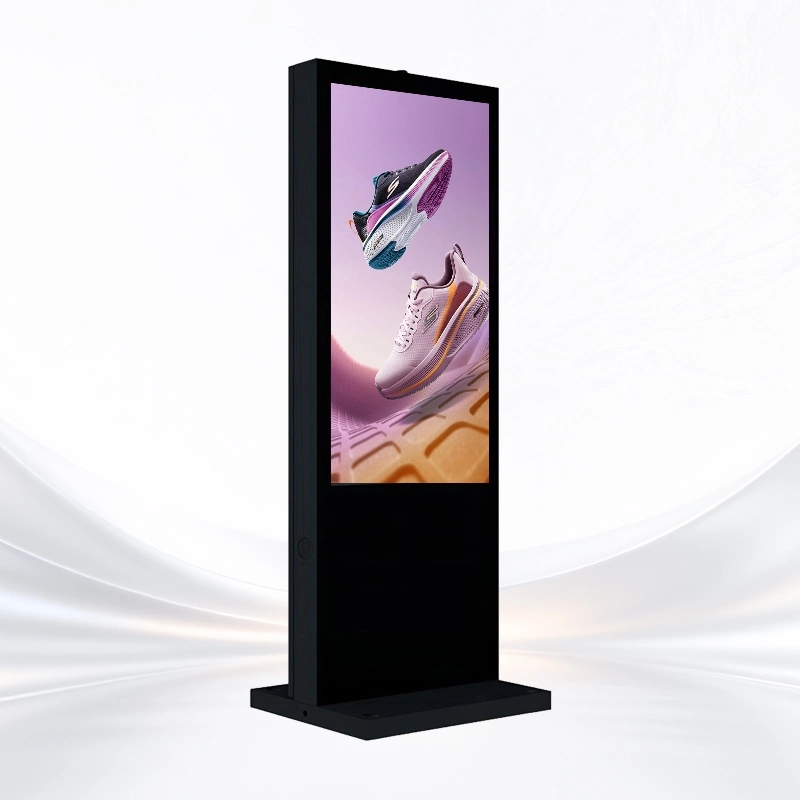

Digital signage

Delivers stable 4K video playback for malls, airports, and public spaces with 24/7 commercial-grade reliability.

Retail kiosks

Powers in-store displays and kiosks to enhance customer engagement and improve retail experiences.

Specifications

Full technical spec — contact us to confirm options for your project.

📄 Qtenboard OPS Module — Key Specifications

CPU	Intel Core i5 or i7 — 10th / 12th / 13th Generation
OS	Windows 10 / Windows 11
RAM	DDR4 SODIMM, 2400 / 2666 / 3200 MHz — up to 32GB
Storage	M.2 SATA or NVMe SSD — up to 1TB
Graphics	Intel Integrated GPU (CPU-dependent)
Display output	DisplayPort + HDMI + OPS-HDMI — up to 4096×3840 @ 60Hz
USB ports	USB 3.1 ×2 (incl. Type-C) · USB 2.0 ×2
Network	Dual Gigabit LAN (RTL8111F) · Optional M.2 Wi-Fi
Audio	Line-out + Mic-in · 80-pin LINE-OUT + MIC support
Power input	DC 12V / 5A or 19V / 4.74A
Dimensions	Type A: 180×119×30mm · Type B: 195×180×30/42mm
Temperature	Operating: 0–55°C · Storage: −20–70°C

FAQ

Common questions from buyers and system integrators.

Which displays are compatible?

Any display with a standard OPS slot — including Qtenboard interactive panels, digital signage screens, and third-party OPS-ready displays.

Do I need tools to install it?

No. The module slides directly into the OPS slot and is secured with a single screw. No special skills or additional hardware required.

Can I upgrade RAM or storage later?

Yes. The module supports field upgrades for both memory and SSD, so you can scale performance without replacing the display or purchasing a new module.

What is the difference between i5 and i7?

Both handle standard classroom and signage workloads reliably. The i7 is better suited for heavier multitasking — running multiple applications simultaneously or processing video. The i5 is a cost-efficient choice for presentations and everyday teaching software.

Need volume pricing or a custom configuration?

OEM / ODM available · 24-hour response · Factory direct

✉ Get a Quote
