A simple advertising placement system, which supports the establishment of manager accounts and sub-accounts, allowing for smooth and efficient advertising placement.

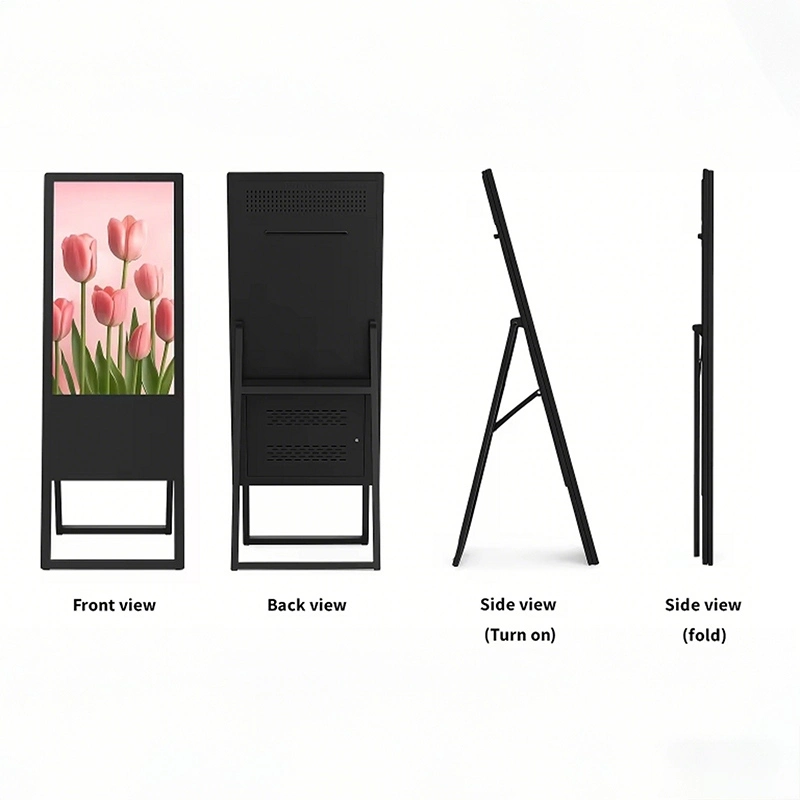

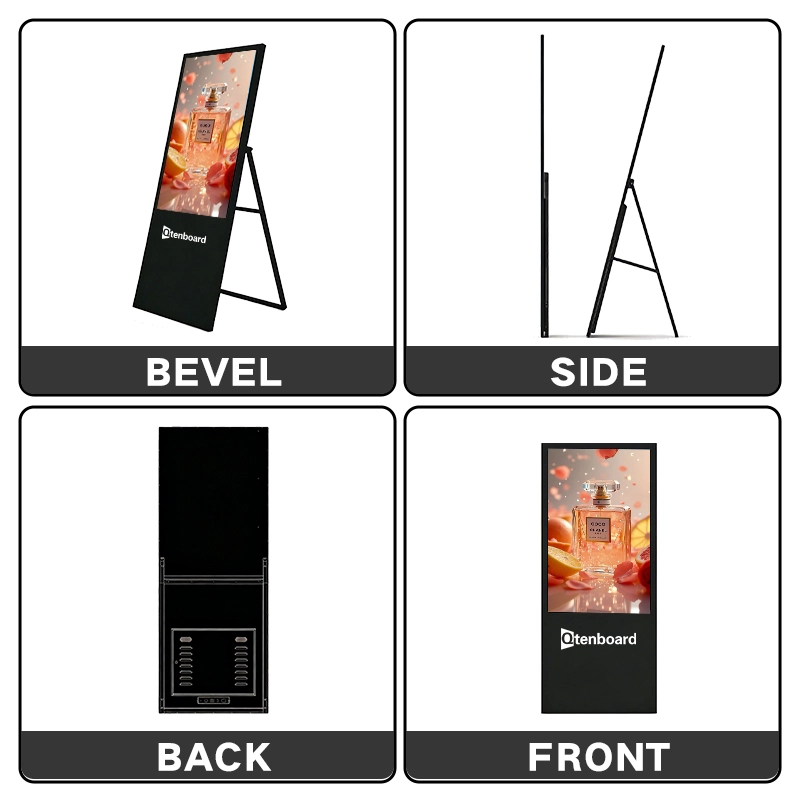

Standing Vertical Digital Signage is a sleek, space-saving display solution perfect for advertising in high-traffic areas. Features vibrant visuals, easy-to-use interface, and customizable content options.
Our factory, located in Shenzhen and Guangzhou, spans over 330,000 square meters with 16 modern buildings. With over 20 years of experience, we produce 200 units daily, supporting both large and small orders for OEM, ODM, and CKD/SKD services.
Equipped with advanced production lines, we ensure top-quality products through automated processes, precise testing, and comprehensive aging checks. Our warehouse management system ensures efficient material supply and timely delivery.
We prioritize sustainability, following strict environmental regulations and using green manufacturing practices. Our factory also offers flexible customization options for products and packaging, meeting diverse market needs.
With professional pre-sales and after-sales support, we guarantee high-quality products and optimal results for our clients.

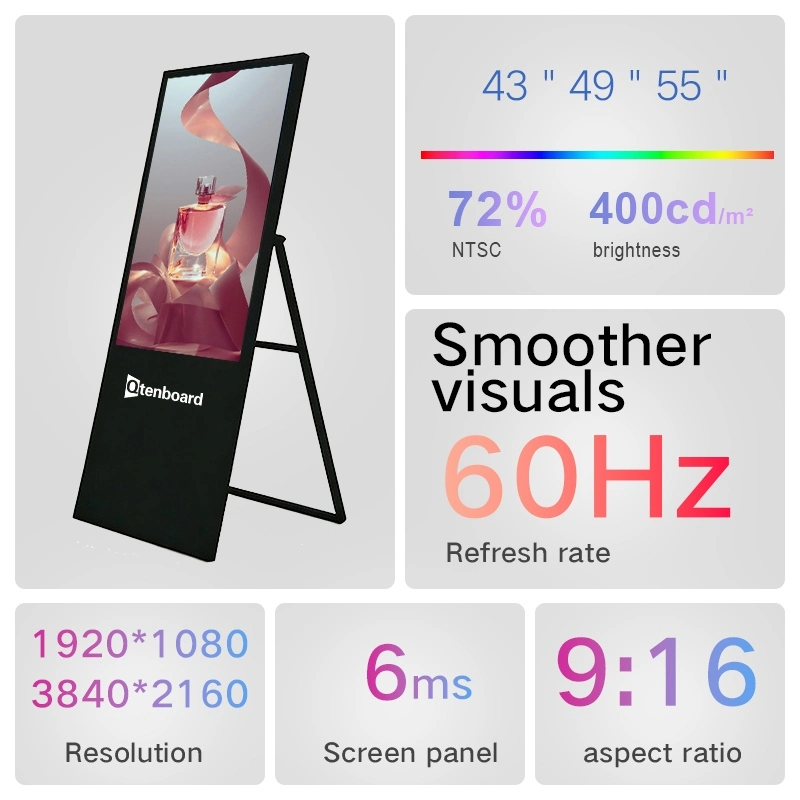

| Display Parameter | |
| The following technical parameters are based on a 55-inch model QM-5516GL-S. If you need technical parameters for other sizes, please contact Qtenboard. |
|
| Brand | Qtenboard |
| Model | QM-5516GLS |
| Size | 55 inch |

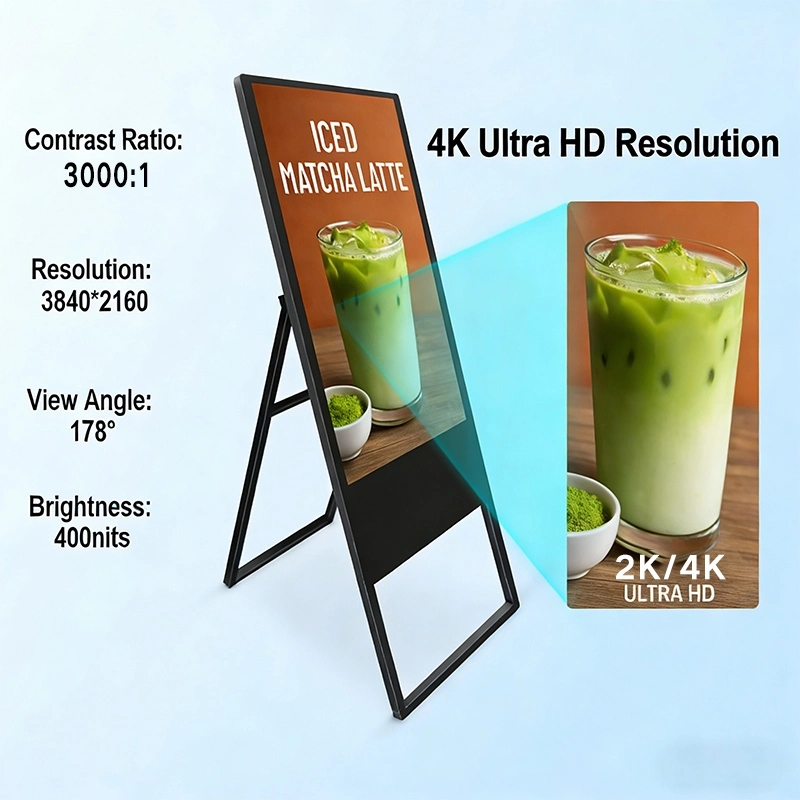

| Resolution | 2K / 4K |
| Angle of view | 178° |
| Contrast Ratio | 3000:1 |
| Display Size | 682.2*1211.4mm（H×V） |
| Display Rate | 16:9 |
| Back Light | LED |
| Brightness | ≥300cd/㎡ |
| Refresh Rate | 60-120HZ |
| Color | 16.7M(8-bit) |
| System Parameters | |

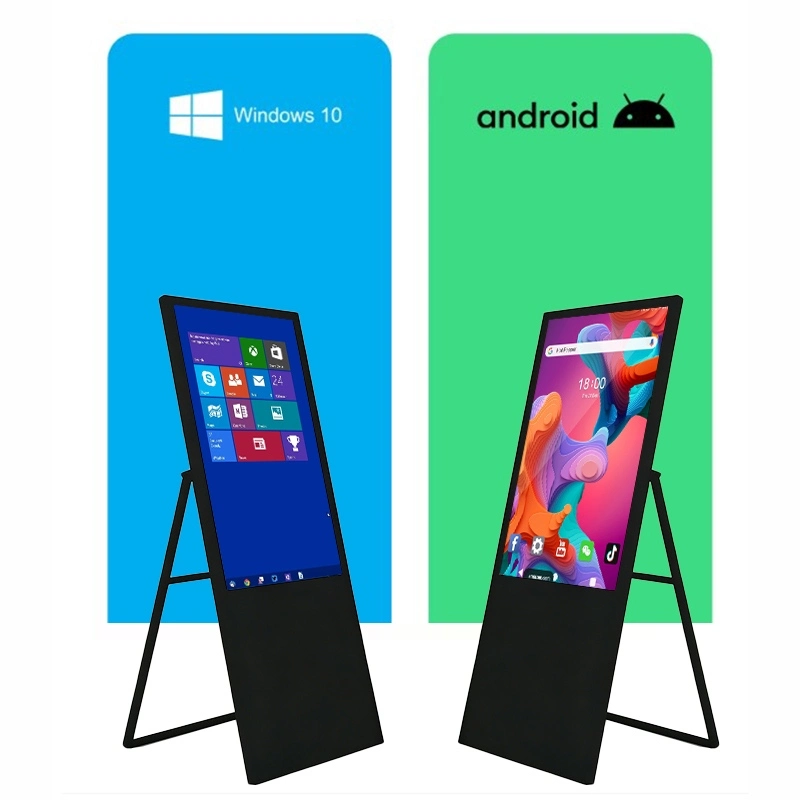

| Operation system | Android |
| Version | 9.0 / 11.0 / 13.0 / 14.0 / 16.0 |
| CPU | A55×8 / A55×4 Cortex-A73×4 Cortex-A53×4 + Cortex-A72×4 |
| GPU | G52 |
| RAM | 1 / 2 / 4 /6 / 8 GB |
| Storage Memory | 8 / 16 / 32 / 64 / 128 GB |
| Input Ports | HDMI In*3, USB3.0*2, USB 2.0 *1, TF card*1, RJ45*1. Type-C*1 (Optional) |
| Audio Interface | 3.5mm *1 |
| Network | 1pc, 100 / 1000M |
| WIFI & Bluetooth | Built in WIFI（2.4G/5G single-signal / Dual-Screen Wi-Fi 6）& BT 4.2 / 5.0 / 5.4 (Optional) |
| System Function | |
| Decoding Capability | Supports 4K video and picture decoding and playback |
| Software Application | Support to install the third-party software |
| Language | English or the others |
| Boot Animation | Support to Customize |
| Infrared Remote Control | Operate system by remote control |
| Audio Function | Support left/right channel output,built-in double 8Ω power amplifier |
| Power-On / Off | Remote control/timing/network wake-up/self-start |
| System Authorization | Allow root permission and customize software development |
| Mouse Mode | Support wired/wireless mouse or use keyboard |
| System Update | Support local and remote upgrade |
| Play Mode | Audio:MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP etc Picture：JPG、BMP、PNG etc Video：AVI，rm，rmvb， MKV，WMV，MOV，MP4 etc; |
| Typing | Standard Android keyboard as default,can install the third party typing |
| More functions | Follow instruction manual/video or contact supplier |
| Software Function | |
| Background Support | Web/mobile IE（local network/WAN） |
| Play Mode | Networking / Standalone |
| Play Support | Video/picture/subtitles/PPT/web/weather/clock etc mixture to play |
| Smart Splicing | Support custom playing modes to splice as setting |

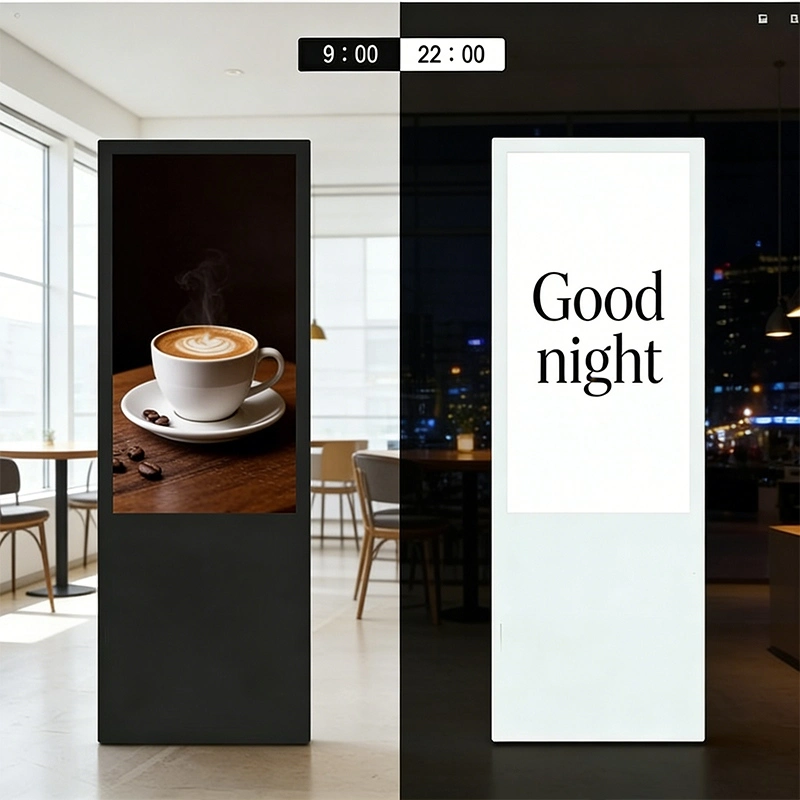

| Timing Function | Support to set playing custom program in time period |
| Terminal Administration | Administrator can create and modify account for level-to level administration |
| More Function | Follow instruction manual/video or contact supplier |
| Machine Parameter | |

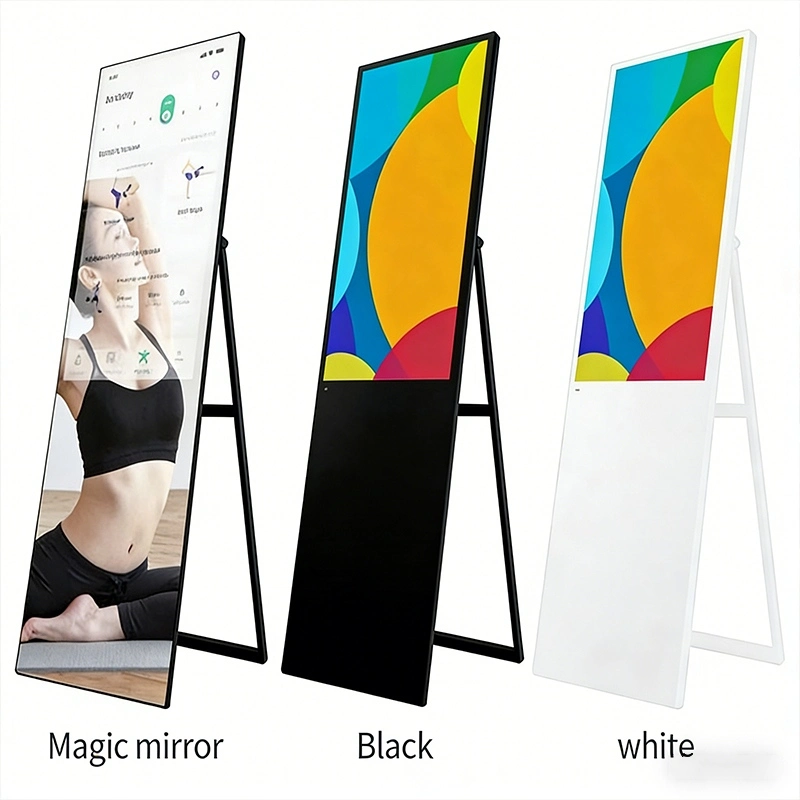

| Color | Black / Silver |
| Frame Material | Aluminum(oxidized wire drawing) |
| Body Material | Metal cold rolled steel plate (metal coating) |
| Surface Material | 3mm tempered glass(physical) |
| Product Size | 747.1*1895*21mm(for reference only) |
| Packing Size | 2015*165*860mm(for reference only) |
| Packing Material | Neutral carton |
| Net/Gross weight | 56.5KG/60KG(for reference only) |
| Access Lock | Maintain power and circuit board |
| Install Ways | Bracket |
| Electrical Features | |
| Scenarios | Indoor |
| Rated Voltage | AC110-220V |
| Stand by Power | ≦1W |
| Rated power | ≦85W |
| Suitable Environment | Temperature-0℃~55℃/humidity 10%RH~90%RH |
| Storage Environment | Temperature-5℃~60℃/humidity 10%RH~90%RH |

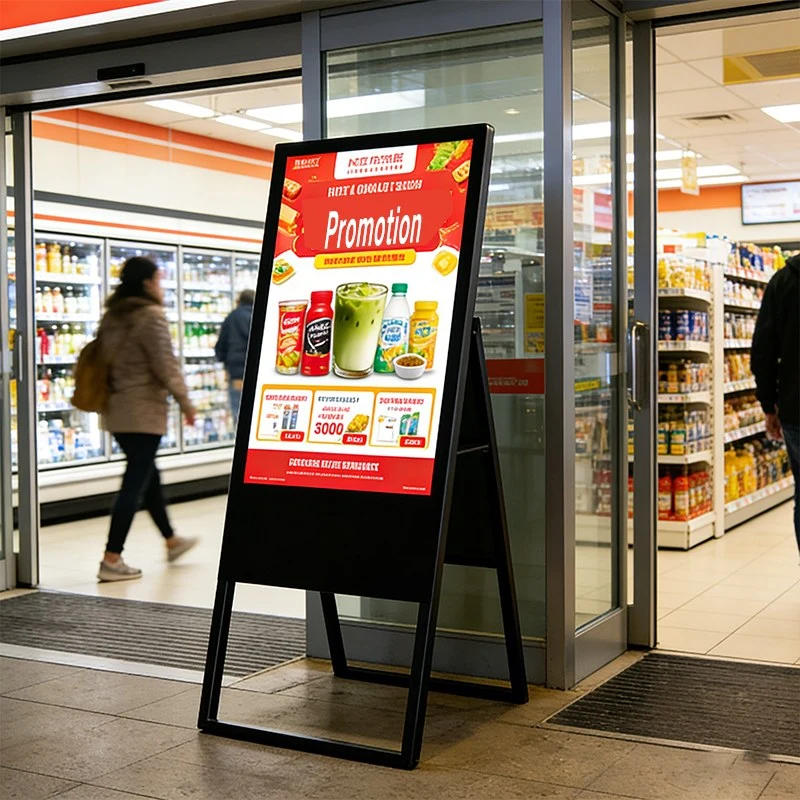

Supermarket/Convenience Store Entrance - High-frequency exposure at entrances strengthens the primary promotion of FMCG, boosting in-store conversion.
Exhibition/Event Venues - Quick deployment + flexible mobility, suitable for temporary venues, enabling efficient capture of high-traffic promotional spots.

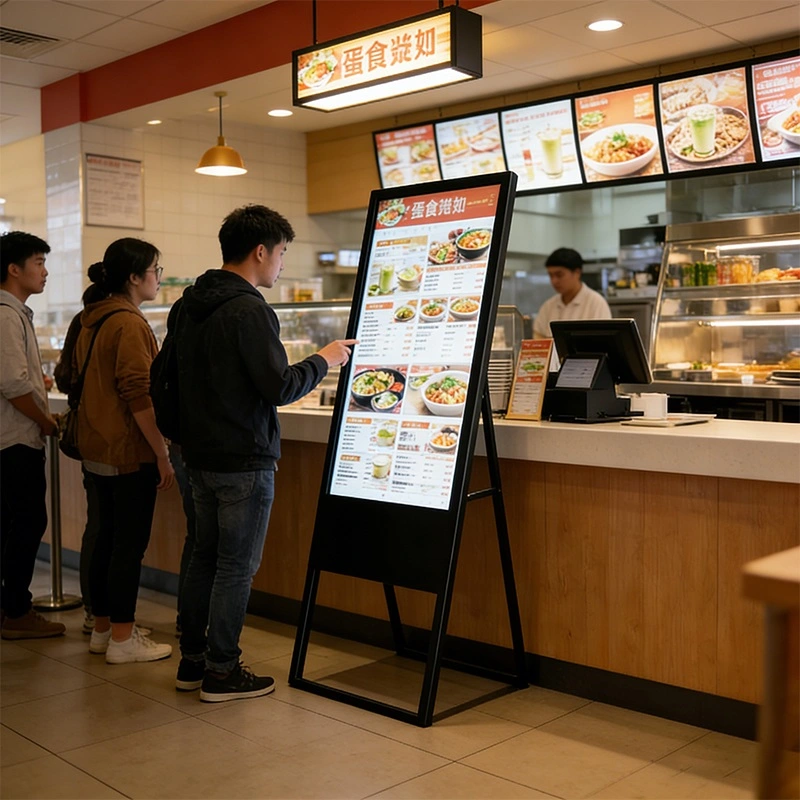

F&B Stores - Reach customers during queuing, accelerate decision-making, and improve ordering efficiency & average order value (AOV).
| Feature | Description |
|---|---|
| Brand Logo & Boot Animation | Personalize your product with custom logos and startup animations for full brand identity. |
| UI/OS Deep Customization | Tailor system interface, themes, and functionality to match your brand’s unique requirements. |
| Chassis & Mold Modification | Modify device enclosures or design new molds for differentiated product appearance. |
| Packaging Design | Custom packaging to suit your branding and global shipping needs. |
| SN Tracking & Batch Production | Each unit tracked with a unique serial number to ensure quality and manage after-sales efficiently. |
| White Label Services | Offer products ready to market under your own brand name. |
| CKD/SKD Supply Capability | Flexible shipment options: complete, semi-knocked down, or fully assembled units. |
| Software Development & SDK/API Support | Integrate third-party applications or develop proprietary software to meet specific project needs. |

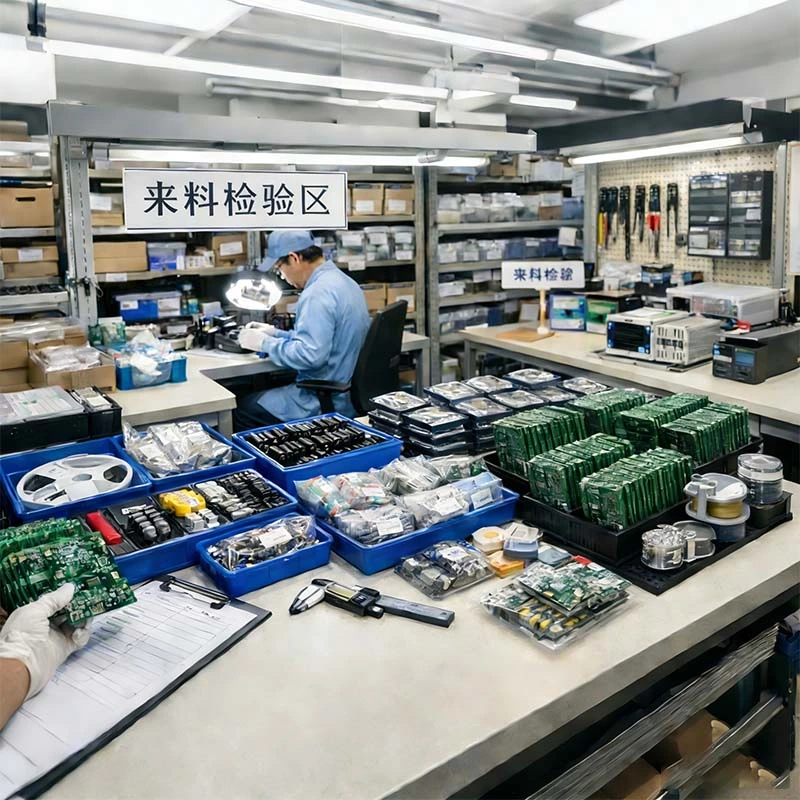

Raw Material Preparation — Incoming boards, electronic components, and materials are inspected and organized for production.
SMT Production Line — Automated surface-mount technology line for precise PCB assembly.
AI Testing & Debugging — Core boards and AI modules are tested for performance and accuracy.
Display Assembly — Screens and touch panels are integrated into the mainframe.
Floor Standing Digital Signage — Used in Innisfree brand stores in Vietnam for product launches, promotional campaigns, and seasonal marketing.
Window Display Screen — Installed in UNIQLO storefronts in the Netherlands to attract foot traffic and showcase brand visuals and promotional content.
K-Style Digital Kiosk — Deployed in real estate sales centers in the UK for property promotions, project introductions, and interactive customer engagement.
Double-Sided Digital Signage — Installed in 7-Eleven convenience stores in Thailand, delivering high-visibility promotions and brand messaging from both sides.
Outdoor Floor Standing Digital Signage — Deployed within residential communities in Singapore for public notices, property announcements, and community information.
Floor Stand Poster Display — Used in ZARA stores in Hong Kong for fashion campaigns, new arrivals, and in-store branding enhancement.
Queue Management System & Display Screens — Applied in hospitals in China to manage patient flow, display queue numbers, and improve service efficiency.
StandbyMe TV — Used by individual users in Malaysia for home entertainment, flexible screen sharing, and mobile lifestyle scenarios.
LCD Video Wall — Installed in DJI brand stores in Japan, creating immersive visual experiences for product demonstrations and brand storytelling.
We deliver a full spectrum of tailored services to empower global brand partners, ensuring seamless project execution and long-term operational excellence:
1. Pre-Sales Consultation
Our team provides professional guidance before purchase, helping customers select the right products, design solutions, and plan project layouts tailored to their needs.
2. Comprehensive After-Sales Service
End-to-end support from on-site installation to ongoing maintenance, guaranteeing high device uptime and prompt resolution of technical issues.
3. Expert Technical Support
Flexible online and on-site assistance, including troubleshooting, firmware updates, and performance optimization for peak device functionality.
4. Customization Solutions
Flexible customization options spanning UI design, device color schemes, software configuration, and hardware features to meet unique project requirements.
5. Hands-On Training & Guidance
Targeted training for operators and technicians to maximize operational efficiency and unlock the full potential of Qtenboard products.
6. Global Logistics & Delivery
Secure global shipping with reinforced packaging, timely delivery, and dedicated customs assistance to ensure safe, on-schedule arrival of your orders.
7. Large-Scale Project Management
Comprehensive support for bulk deployments, including end-to-end solution planning, installation supervision, and full-cycle project coordination.
8. Remote Device Management
Efficient remote control via our proprietary CMS and monitoring tools, enabling content management, real-time device status tracking, and one-click system updates.
9. Warranty & Extended Protection
Standard warranty coverage with optional extensions, including genuine replacement parts, to ensure long-term device reliability and peace of mind.
10. Emergency Response & Value-Added Services
Rapid 24/7 response for critical issues, plus value-added consulting on content design and software upgrades to amplify your business impact.
