Industrial DID panel for non‑stop security monitoring
Near‑seamless multi‑screen splicing visual effect
Flexible business modes for global integrators
Batch control & OTA firmware remote upgrade
Qtenboard provides high‑performance LCD video wall systems designed for 24/7 CCTV monitoring and security command rooms.
Built with industrial‑grade DID panels and professional display controllers, our walls deliver ultra‑clear images, seamless splicing, and continuous reliability for mission‑critical environments.
With 20+ years of factory experience, we support OEM / ODM / CKD / SKD business models for global brands and system integrators.
Qtenboard ensures stable quality, fast customization, and full solution support — from display panels to brackets, processors, and accessories.

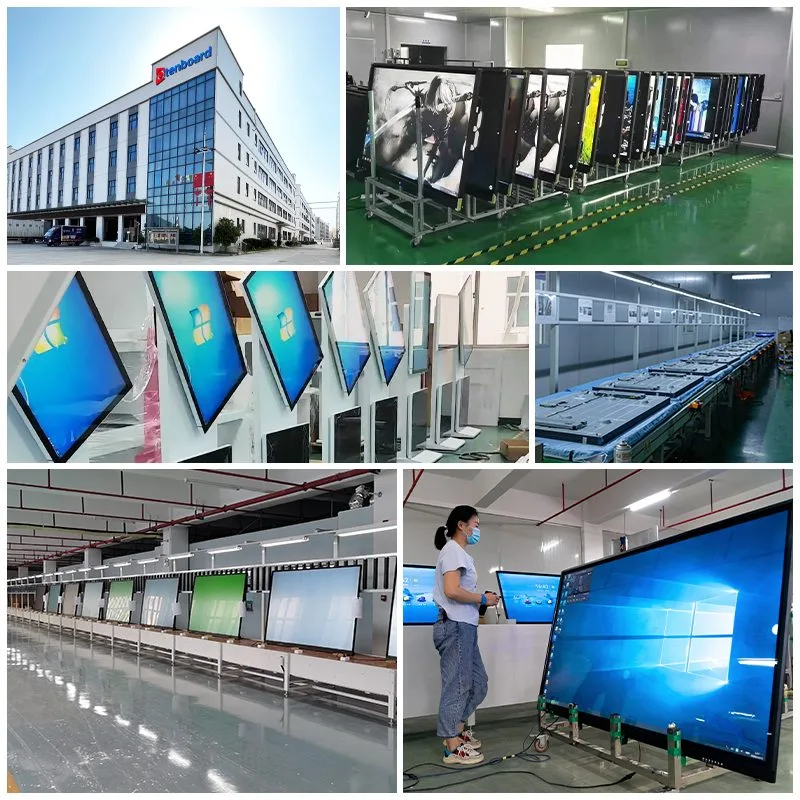

330,000m² Factory | ISO‑Certified | High‑Capacity Manufacturing

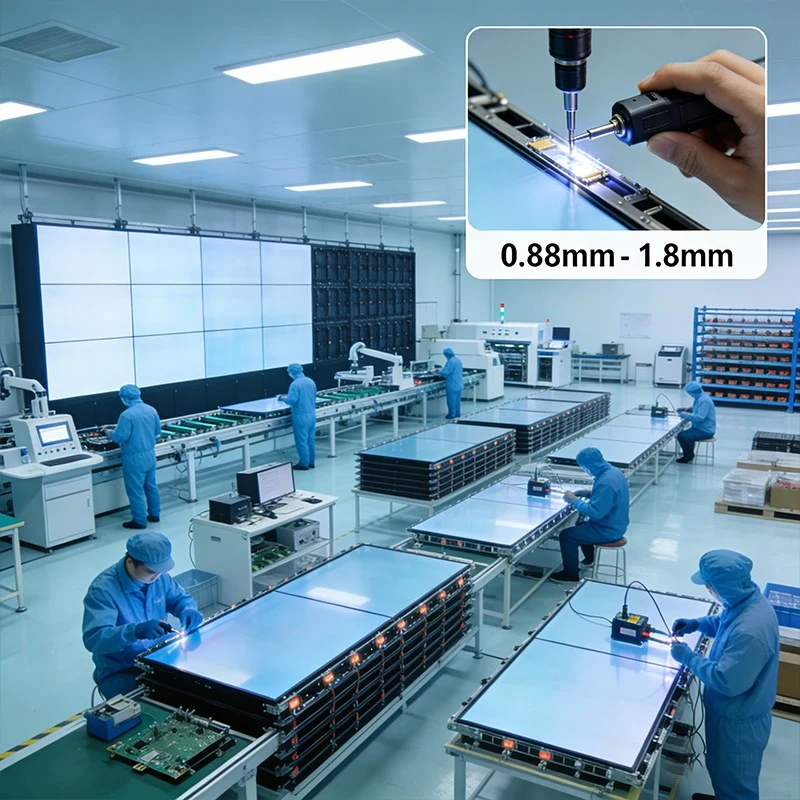

Qtenboard operates its own 100% self‑owned manufacturing base with full production lines covering SMT, panel assembly, calibration, and aging tests.
Daily capacity exceeds 200 units, ensuring reliable supply for large‑scale CCTV and government projects.
Our production strictly follows ISO9001 and CE/FCC/RoHS standards. Each panel undergoes 48‑hour continuous aging tests and color calibration to ensure brightness uniformity and long‑term durability.
Backed by China Export & Credit Insurance Corporation, Qtenboard guarantees secure international transactions and on‑time delivery.
Print your brand logo on panel, packaging & UI boot screen; keep our standard hardware platform.
Custom bezel, brightness, interface, software function according to your project requirement.
Complete knocked‑down kits including panels, power board, controller, housing for local assembly overseas.
Semi‑finished assembled units, reduce your local production workload for fast delivery.
Qtenboard provides flexible customization options for different CCTV command room applications:
Panel Sizes: 46”, 49”, 55”, 65”
Bezel Options:0mm / 0.88mm / 1.8mm / 3.5mm
Brightness: 500–700 nits
Signal Inputs: Power, DVI, HDMI, USB
Installation: Wall‑mount, cabinet embedded, or floor stand
Power Supply: 100–240V universal
For integrators, Qtenboard offers turnkey solutions — including video processors, signal splitters, mounting brackets, and control software — ensuring seamless system integration and project deployment.

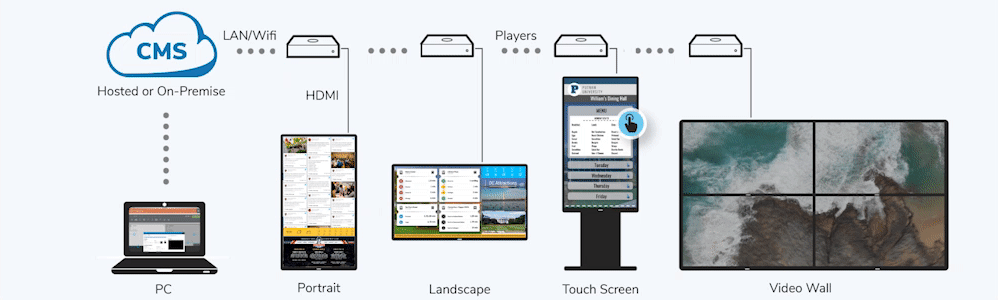

Qtenboard’s cloud‑based management platform allows remote control and real‑time monitoring of multiple displays:
• Remote signal source switching and layout scheduling
• Online/offline device status tracking
• Automatic temperature & brightness adjustment
• Firmware OTA updates and batch control
• Multi‑region support for international projects
This simplifies maintenance for security integrators, allowing unified monitoring, reducing downtime, and enhancing operational efficiency for command centers.

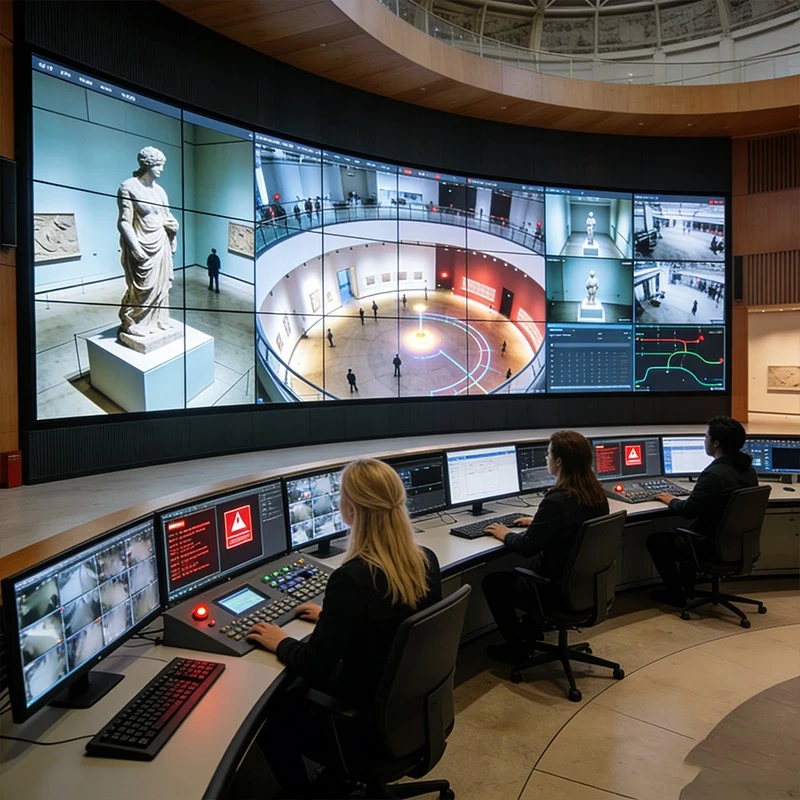

CCTV Security Command Room

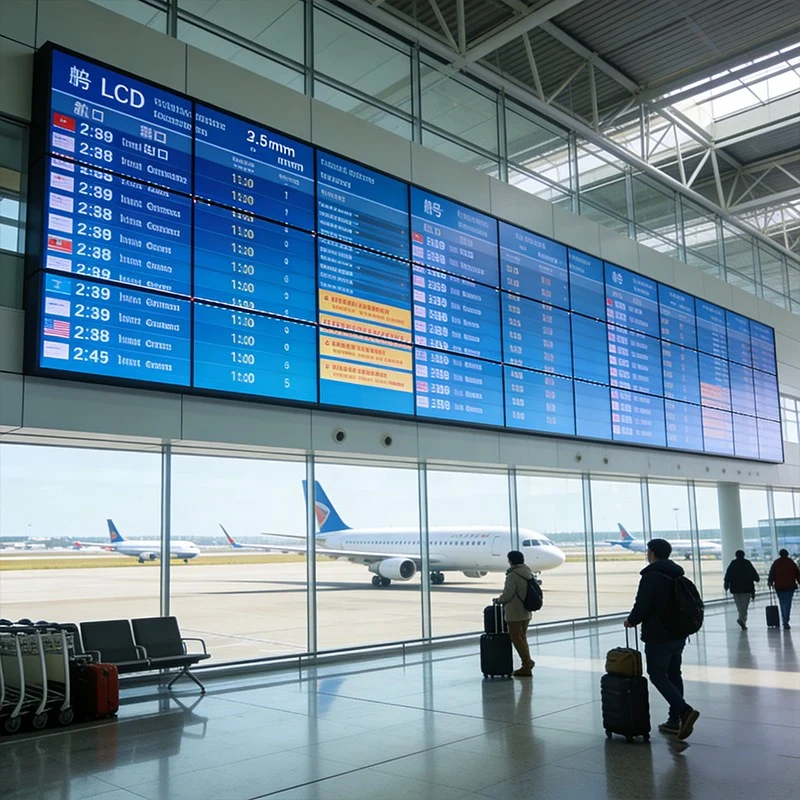

Airport Information Display
Smart City Police Monitoring
Distributor
Matrix
Processor
Decoder
Cabinet
Hydraulic Stand
Infrared Frame
AI Conference Camera
Playback Box
Casting Device
| Parameters | Details |
|---|---|
| Screen Size | 43 / 46 / 49 / 55 / 65 / 75 inch |
| Splicing Gap | 8mm / 3.5mm / 1.8mm / 1.7mm / 0.88mm / 0mm |
| Backlight | LED |
| Aspect Ratio | 16:9 |
| Max Resolution | 1920×1080 / 2K |
| Contrast Ratio | 4500:1 |
| Brightness | 500cd/㎡ |
| Active Area | 1018.08mm(H)×572.67mm(V) |
| Color Saturation | 97% |
| Response Time | 6.5ms |
| Viewing Angle | 178° |
| Service Life | about 60,000 hours |
| Panel Color | Black / Custom color |
| Signal Format | PAL/NTSC adapting 480I, 576I, 720I, 720P, 1080I, 1080P |
| Interface | Input: Power, DVI, HDMI, USB |
| Control Port | Input: serial port(RS232), Output: serial port(RS232)×2 |
| Panel Control | Remote control |
| Display Function Overview | Multi‑signal split screen display, whole screen display, any combination of display, subtitles display |
| Power Consumption | Operating ≤180W; Standby ≤3W |
| Language | English/Chinese; Multilingual optional |
| Installation | Cabinet type, wall hanging, ceiling optional |
| Structure | Strong solid metal casing, anti‑static, anti magnetic field, anti strong interference |
| Operating Temp/Humidity | 0℃～50℃ / 20%～80% (non‑condensing) |
| Storage Temp/Humidity | ‑10℃～60℃ / 5%～95% (non‑condensing) |
| Accessories | Manual, Power cable, Certification, Warranty card |
| Unit Dimension(mm) | 1022(L)×576.6(H)×70.1(D) |
| Unit Weight | about 15kg (excluding accessories) |
| Optional Features | Third‑party control (mobile, iPad, remote info software), PIP/PBP/roaming/overlay, DP/VGA/BNC port optional |

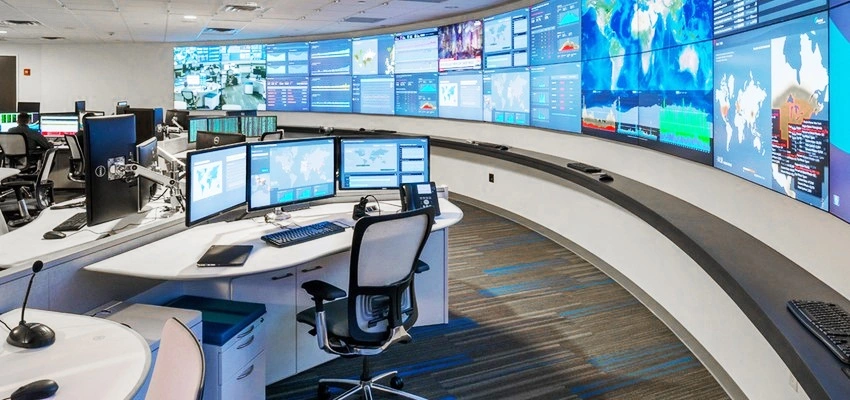

Trusted by Global Security Integrators and Government Contractors
Qtenboard LCD video walls have been deployed in more than 100 countries, serving major CCTV monitoring rooms, transportation command centers, police headquarters, airports, and smart city projects.
With comprehensive export documentation, certifications, and long‑term spare parts supply, Qtenboard ensures project safety, reliability, and long‑term support.
We don’t just sell panels — we provide complete project solutions, from design consultation to installation guidance and post‑sale technical service.
✨ Qtenboard – Powering Global CCTV Monitoring with Reliable Visual Solutions
Share your screen size, splicing gap, installation requirement or OEM/CKD request. Our engineering team will reply within 24 working hours.
Project drawing support | Sample available | Global project reference offered
Answer: Yes, our industrial‑grade LCD panels and cooling design support continuous operation for 24 hours a day, which is highly suitable for use in CCTV monitoring and command centers.
Answer: Yes, we offer OEM/ODM services. Logo can be printed on housing, packaging and boot‑up screen.
Answer: Supports HDMI, DVI, VGA, BNC, RS232, USB, RJ45 interfaces. It can be controlled via RS232 or IR loop, and is also compatible with matrix switchers.
Answer: With the Qtenboard cloud‑based CMS system, one can remotely monitor the device status, perform batch control, and carry out OTA upgrades. There is no need for on‑site operations, significantly reducing the operation and maintenance costs.
Answer: We have our own factories and complete production lines, which support global exports. We provide technical guidance, spare parts supply, and long‑term after‑sales support to ensure the smooth delivery of the project and its long‑term stable operation.
Answer: Absolutely. We provide CKD complete knock‑down kits and SKD semi‑finished units, helping partners lower import tax and carry out local assembly work.
