Ensures clear, vibrant visuals from almost any direction, ideal for public spaces and high-traffic areas.
Floor-standing information wayfinding kiosk with K-shape design for wayfinding, directory display and public information. Touch or non-touch, OEM/ODM supported.

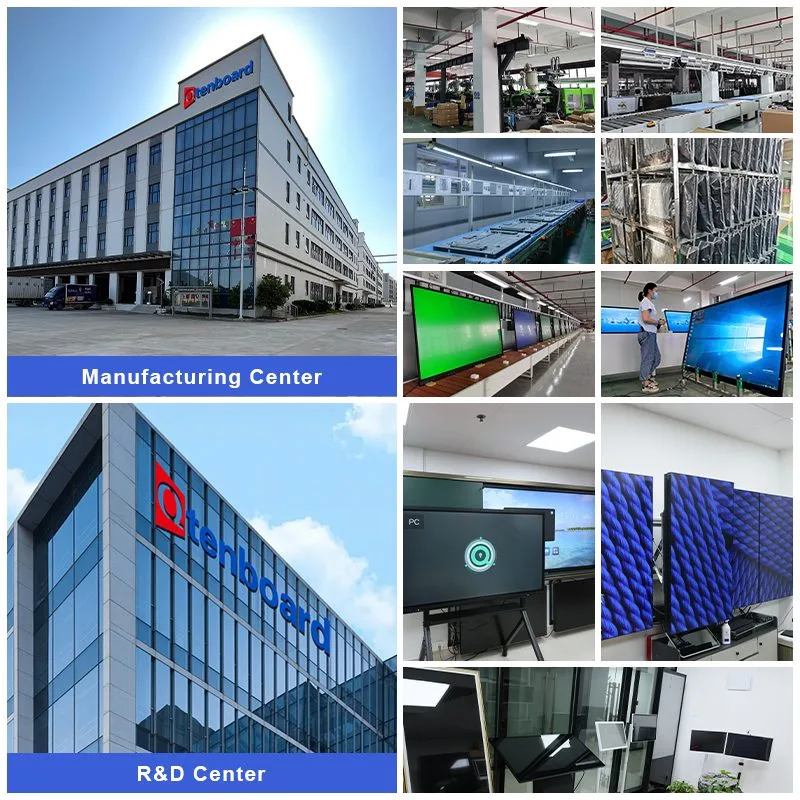

Qtenboard is a direct manufacturer of interactive information and wayfinding kiosks, with two large-scale factories in Shenzhen and Guangzhou totaling 330,000㎡ across 16 production facilities. Our production focuses on durable, high-performance kiosks designed for wayfinding, directory display, and public information applications in malls, hospitals, airports, and corporate buildings.
We provide full OEM and ODM services, including structural design, internal component layout, cable management, thermal printer integration, and software compatibility, ensuring each kiosk operates reliably under continuous daily use.
Every unit undergoes strict testing for touch accuracy, structural stability, and peripheral reliability. With a daily output of 200 kiosks, Qtenboard can support nationwide deployments, multi-location rollouts, and long-term procurement plans for large-scale wayfinding projects.
High-Traffic Public Service Areas
Interactive Kiosk for malls, helping visitors find stores, services, and promotions easily.
Library Information Kiosk
Provides book search, library maps, and event info for quick, self-service navigation.
Corporate Elevator Directory Kiosk
Displays floor directories, office locations, and employee info for smooth building navigation.
| Display parameter | |
| The following technical parameters are based on a 55-inch model. If you need technical parameters for other sizes, please contact Qtenboard. | |
| Brand | Qtenboard |
| Model | QM-5515GP |
| Screen Size | 55inch |
| Resolution | 1920*1080，2K； 3840*2160，4K. |
| Angle of view | 178° |
| Contrast ratio | 3000:1 |
| Display size | 1211.6×682.4mm（H×V） |
| Display rate | 16:9 / 9:16 |
| Back light | LED |
| Brightness | ≥300cd/㎡ |
| Refresh rate | 60HZ |
| Color | 16.7M(8-bit) / 1.07B(10-bit) |
| System configuration | |
| Operation system | Android |
| Version | 9.0 / 11.0 / 13.0 / 14.0 / 16.0 |
| CPU | A55×8 / A55×4 Cortex-A73×4 Cortex-A53×4 + Cortex-A72×4 |
| GPU | G52 |
| RAM | 1 / 2 / 4 /6 / 8 GB |
| Storage Memory | 8 / 16 / 32 / 64 / 128 GB |
| Interface | HDMI In*1, USB3.0*2, TF card*1, RJ45*1 (Optional) |
| Audio Interface | 3.5mm *1 |
| Network | 1pc, 100 / 1000M |
| WIFI & Bluetooth | Built in WIFI（2.4G/5G single-signal / Dual-Screen Wi-Fi 6）& BT 4.2 / 5.0 / 5.4 |
| System Function | |
| Decoding Capability | Supports 2/4K video and picture decoding and playback |
| Software Application | Support to install the third-party software |
| Language | English etc language |
| Boot Animation | Support to customize |
| Infrared Remote Control | Operate system by remote control |
| Audio Function | Support left/right channel output,built-in double 8Ω power amplifier |
| Power-On / Off | Remote control/timing/network wake-up/self-start |
| System Authorization | Allow root permission and customize software development |
| Mouse Mode | Support wired/wireless mouse or use keyboard |
| System Update | Support local and remote upgrade |
| Play Mode |
Audio：MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP etc Picture：JPG、BMP、PNG etc Video：AVI，rm，rmvb， MKV，WMV，MOV，MP4 etc |
| Typing | Standard Android keyboard as default,can install the third party typing |
| More Functions | Follow instruction manual/video or contact supplier |
| Software Function（CMS Optional） | |
| Background Support | Web/mobile IE（Local network/WAN） |
| Play Mode | Networking / Standalone |
| Play Support | Video/picture/subtitles/PPT/web/weather/clock etc mixture to play |
| Smart Splicing | Support custom playing modes to splice as setting |
| Timing Function | Support to set playing custom program in time period |
| Terminal Administration | Administrator can create and modify account for level-to level administration |
| More Function | Follow instruction manual / video or contact supplier |
| Machine Parameter | |
| Color | Black / White / Others |
| Frame Material | Aluminum(Oxidized wire drawing) |
| Body Material | Metal cold rolled steel plate (Metal coating) |
| Surface Material | 3mm tempered glass(Physical) |
| Product Size | 1246.6*717.4*60.1mm (For reference only) |
| Packing Size | 1380*135*855mm(For reference only) |
| Packing Material | Neutral carton / Wooden frame / Wooden box |
| Net / Gross Weight | 30KG/35KG (For reference only) |
| Install Ways | Mount-on Wall / Embedding / Hang / Bracket |
| Electrical features | |
| Scenarios | Indoor |
| Rated Voltage | AC110-220V |
| Stand by Power | ≦1W |
| Rated Power | ≦85W |
| Suitable Environment | Temperature‐0℃~55℃ / Humidity 10%RH~90%RH |
| Storage Environment | Temperature‐5℃~60℃ / Humidity 10%RH~90%RH |
| Feature | Description |
|---|---|
| Brand Logo & Boot Interface | Customize startup logo, boot screen, and on-screen branding to match your corporate or public environment. |
| Wayfinding UI & Navigation Layout | Custom map interface, directory structure, multilingual support, and navigation logic for intuitive wayfinding. |
| Directory & Information Modules | Support for floor directories, tenant lists, room search, public notices, and interactive information display. |
| K-Shape Chassis & Structural Design | Floor-standing K-shape kiosk design with customizable materials, colors, screen sizes, and enclosure structure. |
| CMS & Content System Integration | Compatible with content management systems for real-time updates of maps, directories, and information pages. |
| SN Tracking & Project Deployment | Each kiosk assigned a unique serial number for production tracking, installation management, and maintenance support. |
| White Label & Multi-Location Rollout | White-label solutions designed for shopping malls, libraries, offices, and multi-building wayfinding projects. |
| CKD/SKD Supply Options | Support for complete units or CKD/SKD delivery to meet local assembly, cost control, and logistics requirements. |
| Software SDK & API Compatibility | SDK and API support for custom wayfinding software, map engines, directory systems, and third-party platforms. |
Industrial Robot Operations — Robotic arms handle welding, placement, and installation.
Qtenboard Team — Engineers, production staff, quality inspectors, salespeople - we are together.
Product aging test — A rigorous 48-hour aging test ensures that every product leaving the factory is in good working order.
Warehouse — 48-hour With a daily production capacity of 200 units, we can meet the needs of most projects.
K-Style Digital Kiosk — Deployed in real estate sales centers in the UK for property promotions, project introductions, and interactive customer engagement.
Double-Sided Digital Signage — Installed in 7-Eleven convenience stores in Thailand, delivering high-visibility promotions and brand messaging from both sides.
Floor Standing Digital Signage — Used in Innisfree brand stores in Vietnam for product launches, promotional campaigns, and seasonal marketing.
Outdoor Floor Standing Digital Signage — Deployed within residential communities in Singapore for public notices, property announcements, and community information.
Window Display Screen — Installed in UNIQLO storefronts in the Netherlands to attract foot traffic and showcase brand visuals and promotional content.
Floor Stand Poster Display — Used in ZARA stores in Hong Kong for fashion campaigns, new arrivals, and in-store branding enhancement.
Queue Management System & Display Screens — Applied in hospitals in China to manage patient flow, display queue numbers, and improve service efficiency.
StandbyMe TV — Used by individual users in Malaysia for home entertainment, flexible screen sharing, and mobile lifestyle scenarios.
LCD Video Wall — Installed in DJI brand stores in Japan, creating immersive visual experiences for product demonstrations and brand storytelling.
We provide comprehensive services tailored for wayfinding and information kiosk projects, helping shopping malls, libraries, office buildings, and public spaces deploy systems smoothly, ensure reliable operation, and scale efficiently:
1. Pre-Sales Solution Consultation
Professional guidance on kiosk selection, screen size, mounting method, wayfinding structure, directory design, and system architecture based on your space.
2. After-Sales Service & Maintenance
Complete support for installation, system setup, spare parts supply, and long-term maintenance to keep information kiosks running reliably.
3. Technical Support & System Optimization
Remote and on-site assistance including software debugging, touch calibration, firmware updates, and performance optimization for wayfinding systems.
4. OEM/ODM Customization Solutions
Flexible customization of UI design, navigation logic, content modules, hardware structure, and kiosk appearance to match your brand and environment.
5. Content Management & CMS Training
Practical training for administrators on content updates, map management, directory maintenance, and daily system operation.
6. Global Logistics & Delivery
Secure worldwide shipping with reinforced packaging, flexible delivery options, and customs assistance to ensure safe and on-time arrival.
7. Multi-Location & Project Deployment Support
Full support for large-scale wayfinding projects, including batch production, phased delivery, installation coordination, and multi-site rollout planning.
8. Remote Device & Content Management
CMS or third-party platform support for real-time device monitoring, remote content updates, centralized control, and system status tracking.
9. Warranty & Long-Term Reliability
Standard warranty with optional extended coverage, including genuine replacement parts, ensuring stable operation in public and high-traffic environments.
10. Ongoing Optimization & Upgrade Support
Continuous technical assistance for system upgrades, feature expansion, and performance improvements as your wayfinding needs evolve.
