Qtenboard Outdoor SeriesA floor-standing landscape outdoor digital signage solution for high-visibility advertising, wayfinding, public information and interactive service projects. Configure the display, brightness, weatherproof enclosure, thermal system, operating platform and CMS to fit your installation environment.
If your location shows video commercials, brand films, route information, schedules, maps or multi-zone layouts, a landscape outdoor digital signage kiosk delivers more usable screen area than a portrait display. The horizontal 16:9 screen matches standard video assets, web interfaces, digital menus and transportation information panels without cropping or letterboxing.

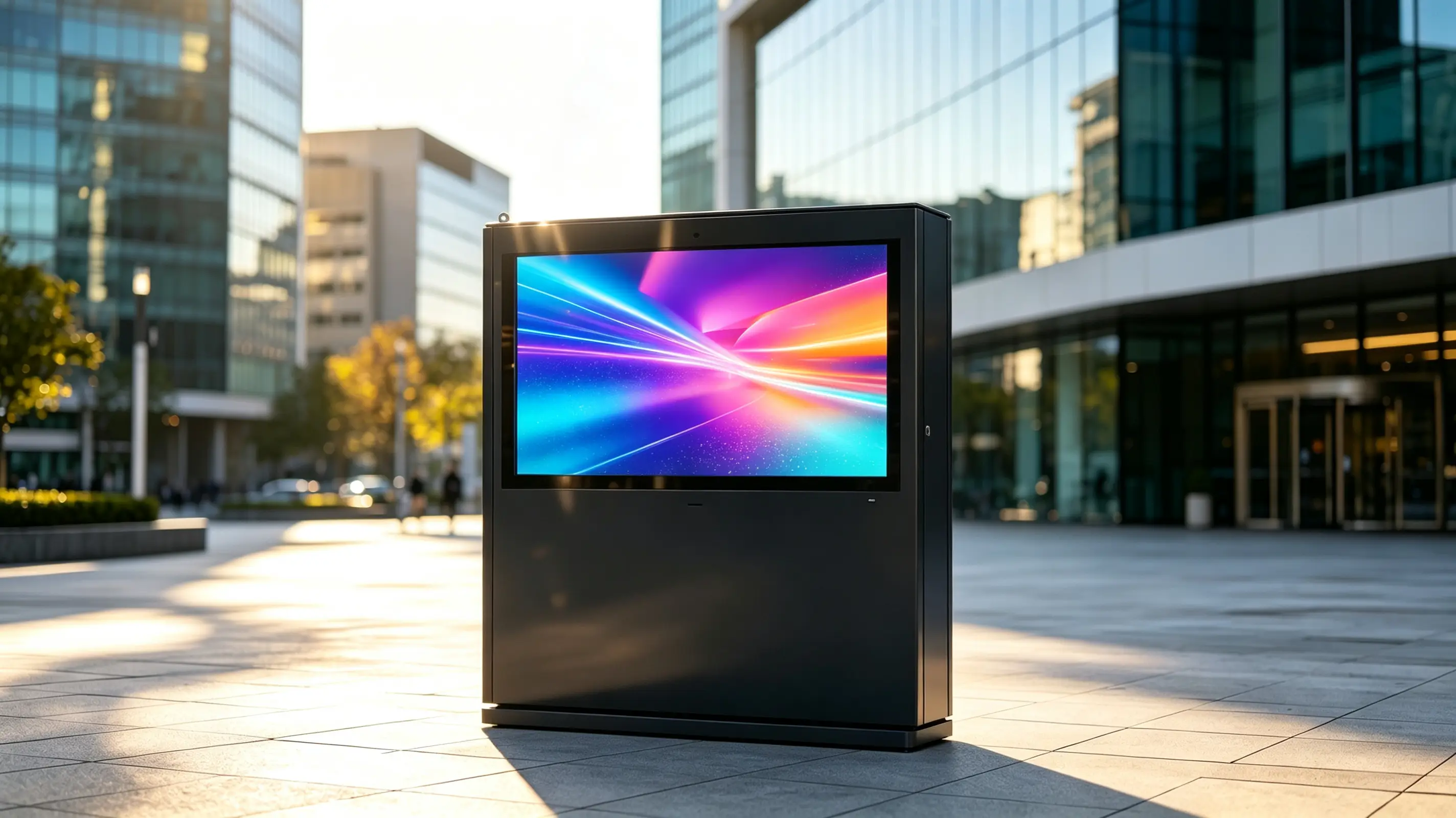

A landscape outdoor digital signage kiosk creates a high-impact communication point for locations where wide-format content is more effective than a portrait display. It can present advertising, directions, schedules, maps, public notices and interactive services in a clear horizontal layout. Designed as a freestanding integrated kiosk, the system can be configured for commercial, public-space and project-based outdoor deployment.
Choose a standard semi-outdoor configuration for covered locations, a sunlight-readable high-brightness version for exposed outdoor areas, or an interactive service kiosk for wayfinding, lookup and self-service applications. Final configuration depends on site conditions, content type and system requirements.
| Version | Recommended For | Typical Configuration | Confirm Before Purchase |
|---|---|---|---|
| Semi-Outdoor Standard | Covered entrances, retail street canopies, semi-outdoor passages | Standard high-brightness LCD, anti-glare glass, fan cooling, Android or Windows option | Sunlight hours, viewing distance, network method |
| Full Outdoor High-Brightness | Plazas, transport hubs, fully exposed sunny areas | Sunlight-readable high-brightness LCD, IP-rated enclosure, air-conditioning/heating thermal control, auto dimming | Maximum/minimum temperature, IP rating, wind load |
| Interactive Service Kiosk | Wayfinding, information lookup, QR access, self-service | PCAP touch, Windows industrial PC, QR code / camera / printer expansion | Software interface, payment certification, waterproof openings, maintenance method |
The landscape outdoor kiosk is a single integrated unit: cabinet, display, internal controller and base are built in one body, reducing procurement complexity and installation work compared with assembling separate brackets, hoods and players on site.
The horizontal screen is designed for wide-format content that portrait displays handle poorly:

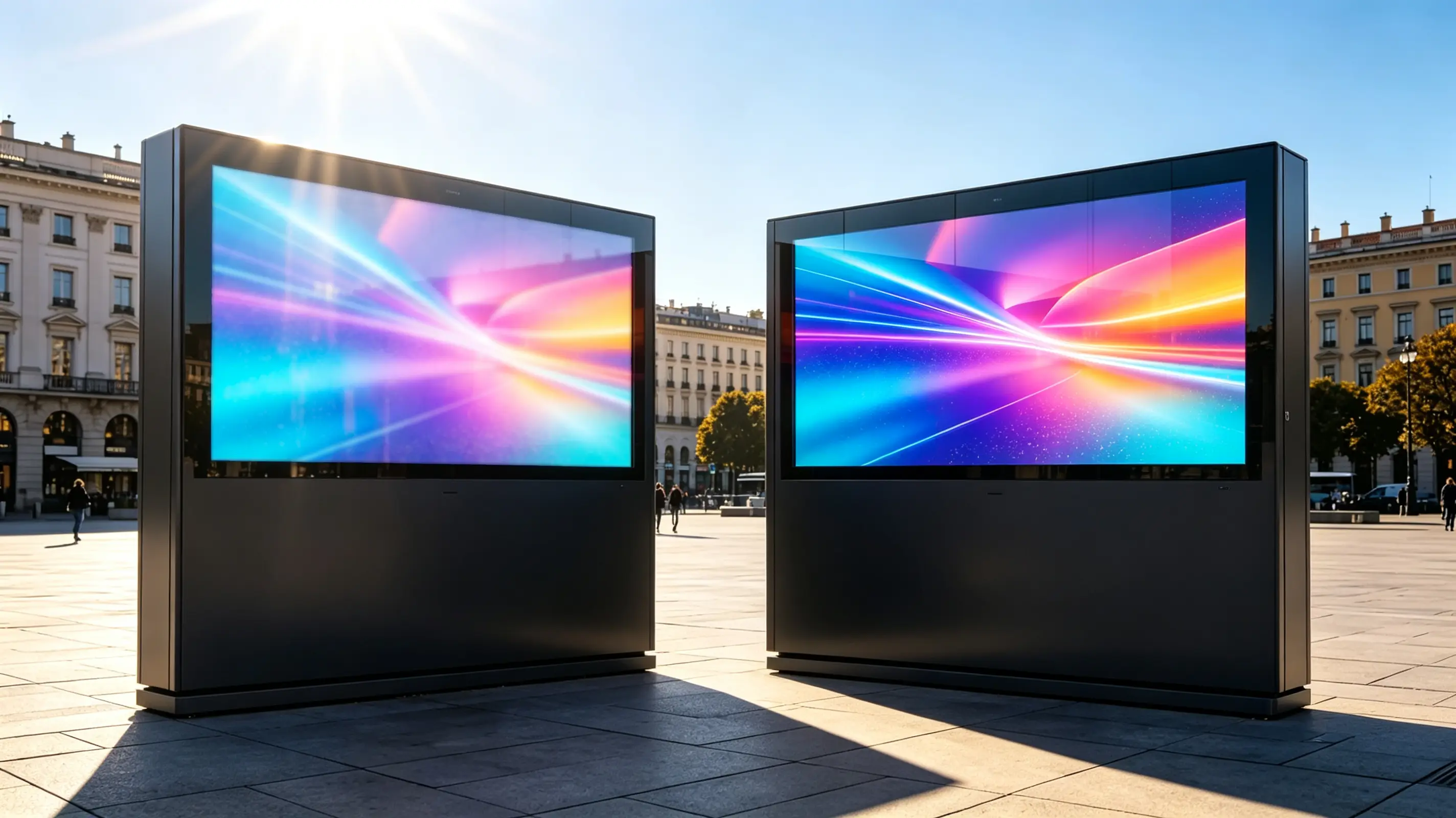

Outdoor brightness is not one fixed number — it must match the installation environment. Covered canopies, store entrances, semi-outdoor passages and fully exposed areas need different brightness, glass and auto-dimming solutions.
| Installation Environment | Page Recommended Description | Confirm with Customer |
|---|---|---|
| Covered semi-outdoor | Bright display for covered outdoor applications | Light intensity, glass reflection, viewing distance |
| Store entrance / street canopy | Enhanced-brightness display for semi-outdoor visibility | Morning/afternoon direct sun, screen orientation |
| Fully exposed outdoor | Sunlight-readable high-brightness LCD option | Sunlight hours, maximum temperature, content contrast |
| Night-oriented scenes | Day-to-night brightness control option | Business hours, surrounding brightness, power budget |
Match the controller, operating platform and connectivity to your existing software stack — Android CMS for remote content management, Windows industrial PC for custom applications, or monitor-only for your own media player and AV system.
Windows availability, version, licensing, hardware configuration and third-party software compatibility should be confirmed for each project.
| Connection | Common Use Cases | Confirm Before Purchase |
|---|---|---|
| LAN | Fixed commercial projects, parks, transport stations | Cabling, IP address, back-office access |
| Wi-Fi | Semi-outdoor areas with stable signal | Signal coverage, network security, maintenance |
| 4G/5G | Advertising sites without wired network, scenic areas, temporary projects | Data cost, SIM card, local frequency bands |
| USB | Standalone playback or on-site maintenance | Update frequency, maintenance staffing |
| HDMI/DP | External player or customer industrial PC | Resolution, cable length, device compatibility |
| RS232/RS485 | Central control or device-linkage projects | Protocol, baud rate, control logic |
| GPIO | Sensors, alarms or external triggers | I/O point count and system logic |
Horizontal outdoor kiosks serve advertising networks, retail, transport, smart city and hospitality projects where wide-format, remotely updatable information replaces static posters and printed signage.

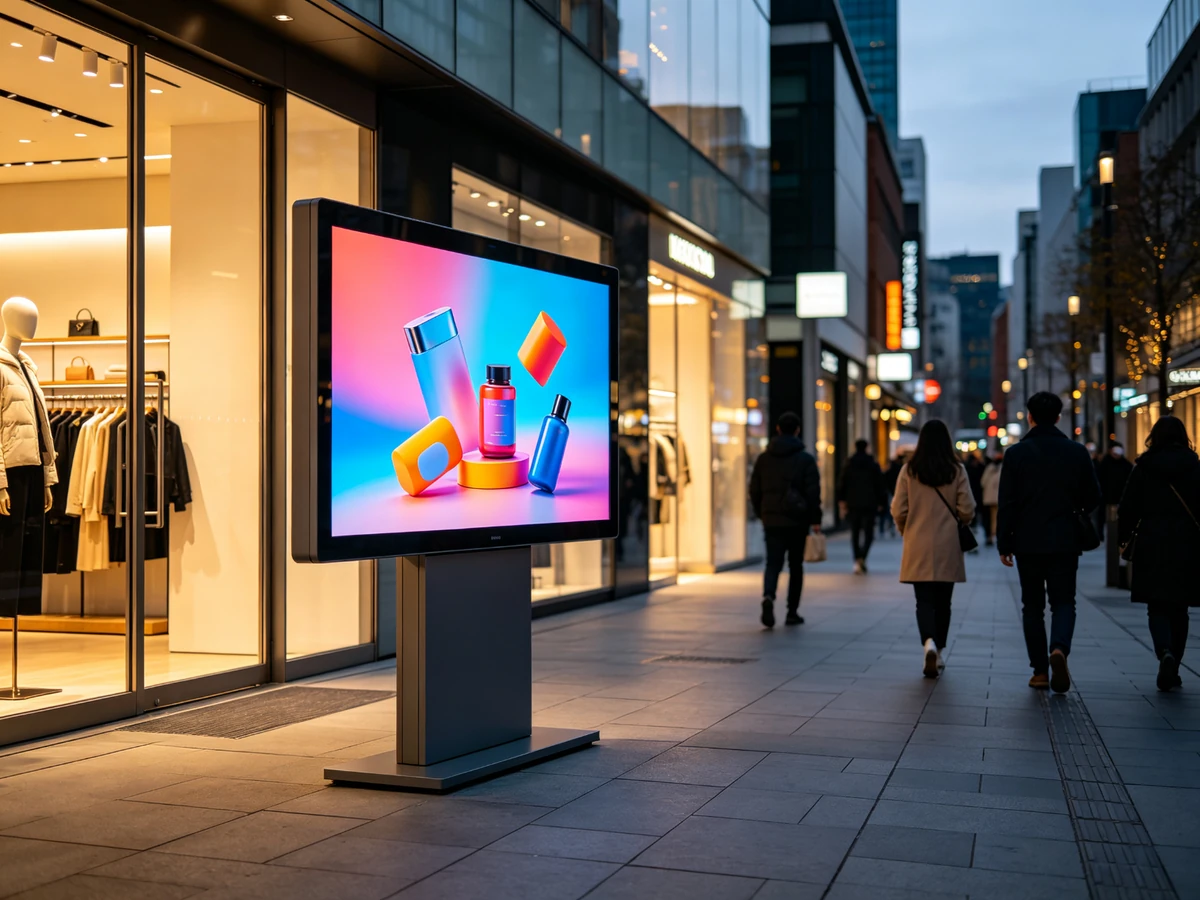

Store exteriors, mall entrances, commercial streets, parking entrances and pop-up zones. Show new products, promotions, seasonal ads, store guides and membership activities, and switch content by campaign without reprinting posters.

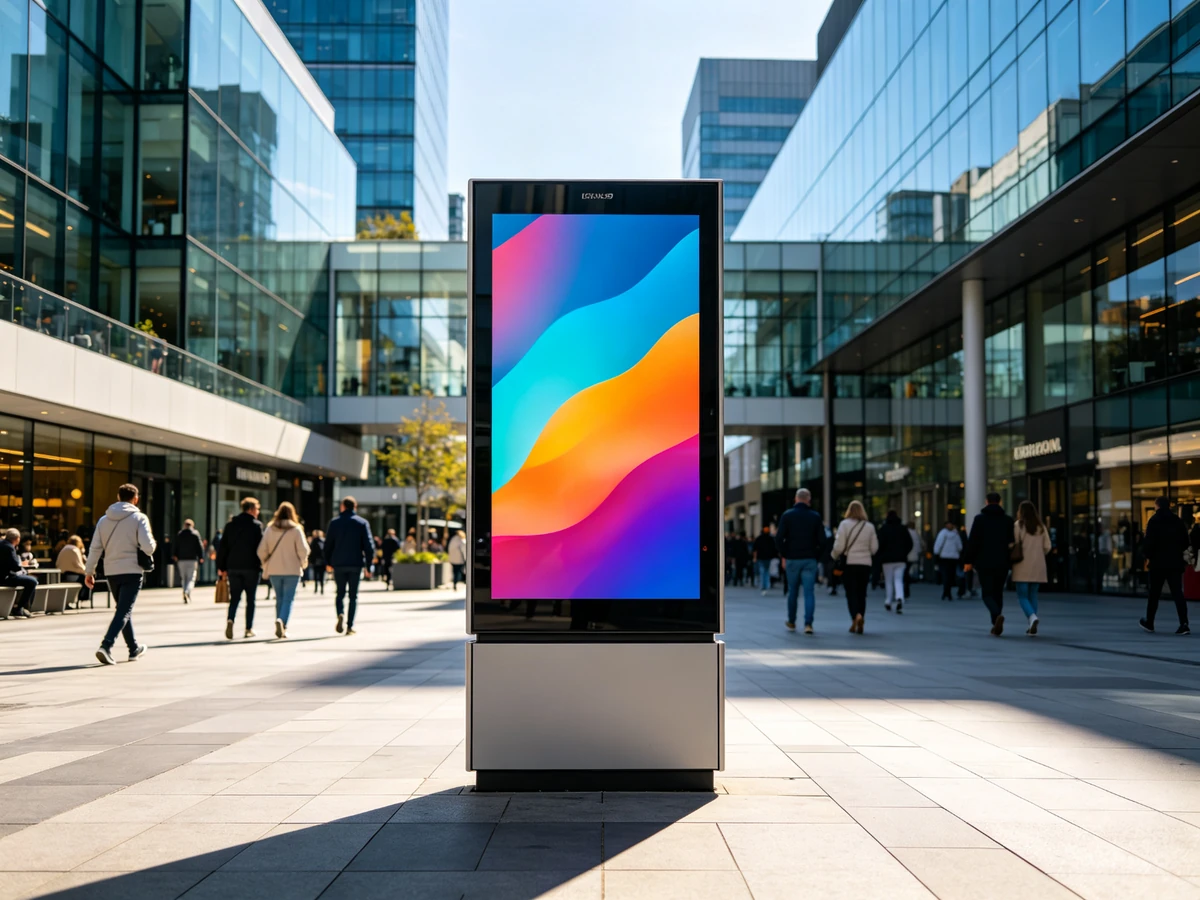

City commercial districts, walk streets, plazas and community entrances. The 16:9 screen plays standard brand videos, local merchant ads and daypart media content, managed by CMS across clients, locations and time slots.

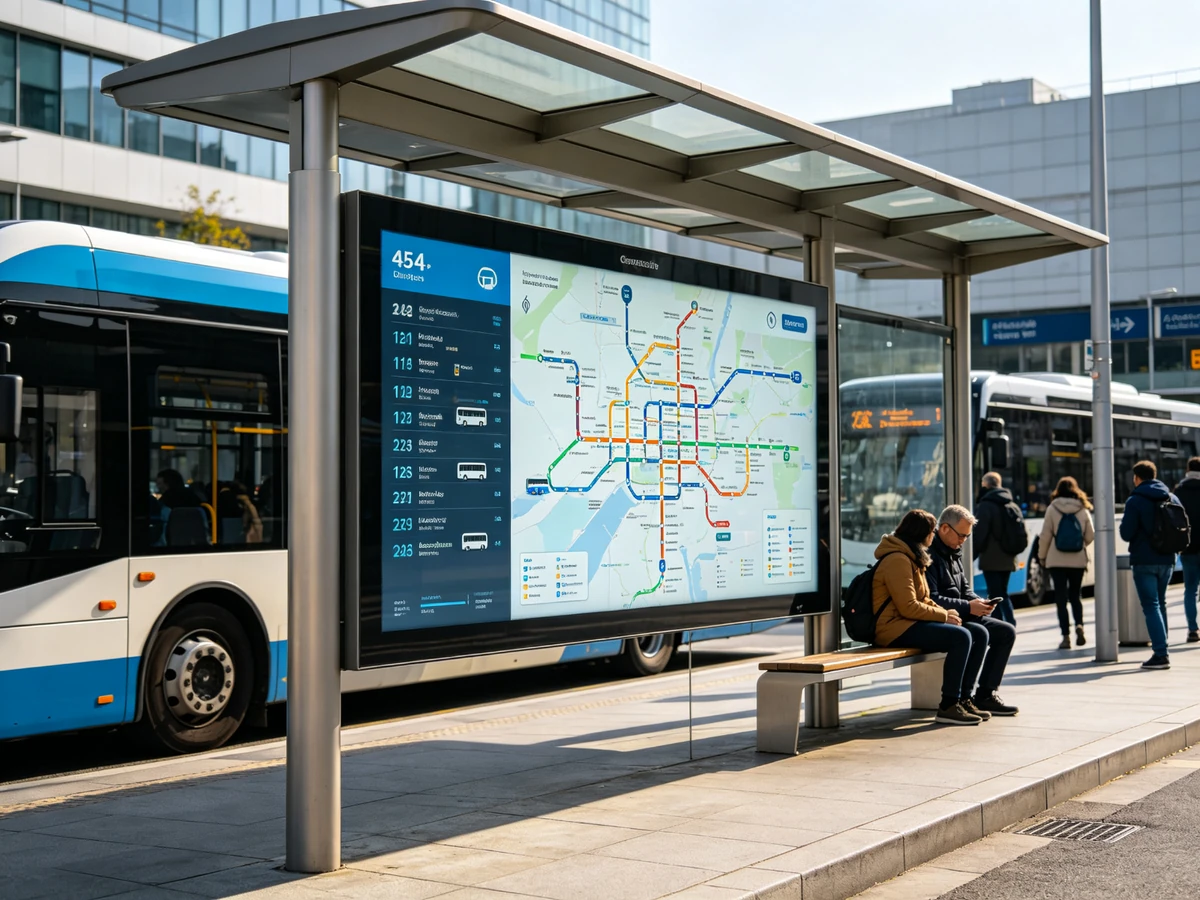

Bus stops, transit hubs, airport pickup zones, parking and charging areas. Display route maps, schedules, arrival notices, parking information, weather and public notices, updated remotely from a fixed location.

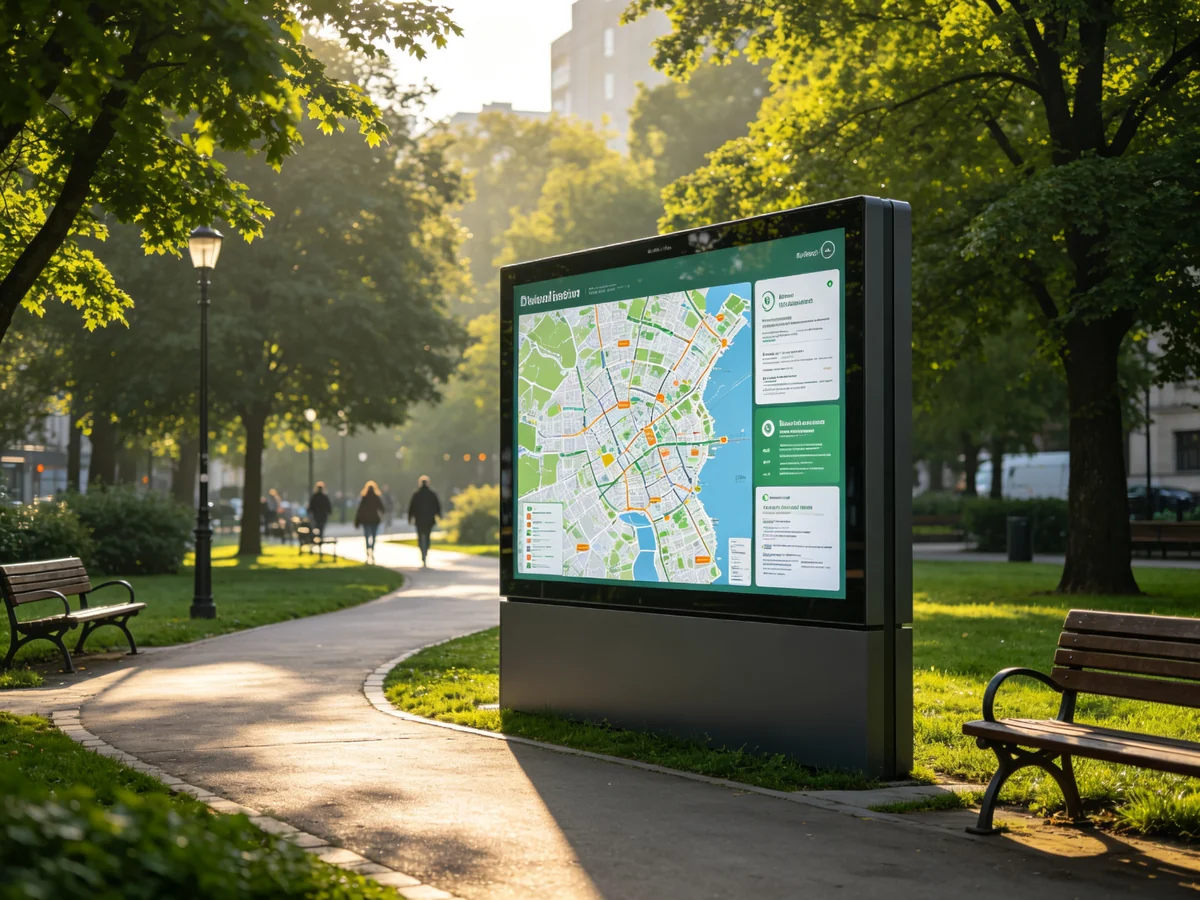

Municipal plazas, parks, community entrances, tourist centers and public service stations. Upgrade static notice boards into remotely updatable digital information nodes for city maps, event calendars, weather and emergency alerts.

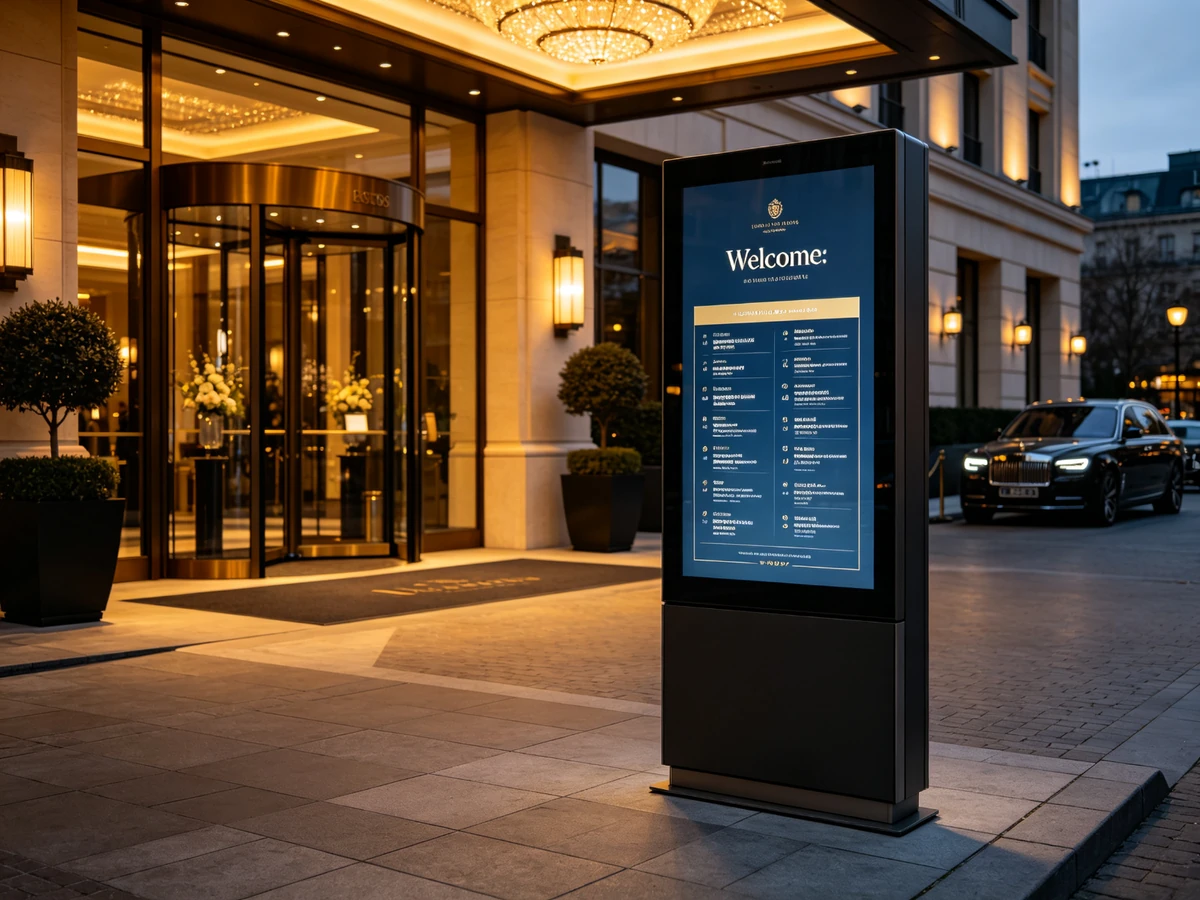

Hotel entrances, resort walkways, conference centers and exhibition halls. Welcome pages, event schedules, meeting wayfinding, dining events and visitor notices — updated per event without reprinting directional signage.

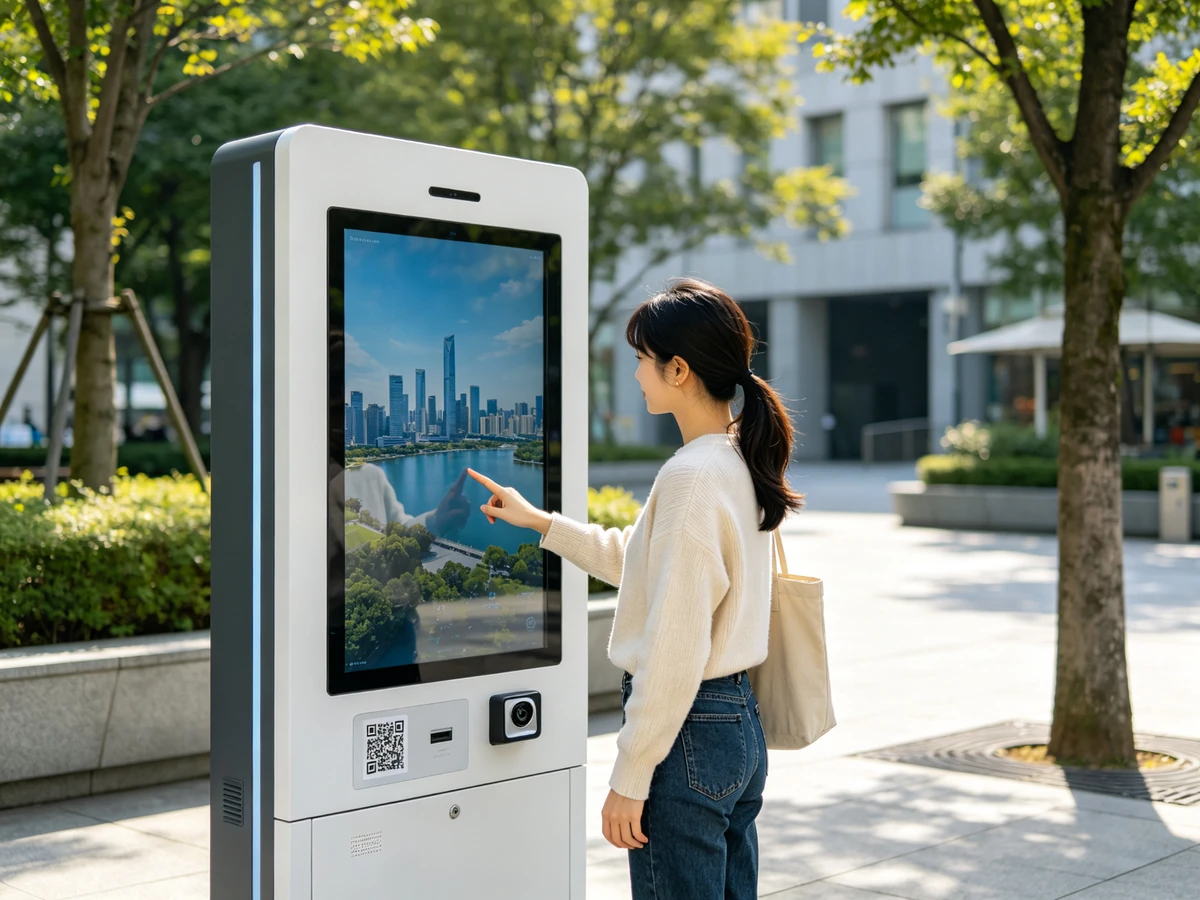

The same landscape cabinet can be configured as a non-touch advertising display or as an outdoor touchscreen service kiosk with QR, NFC, camera and payment peripherals — depending on the project brief.
Touch, scanning, payment, printing and camera functions are not treated as standard advertising-kiosk features. They are confirmed separately against the waterproof structure, glass openings, power, software interfaces, network, security and local payment-certification requirements. For interaction-heavy projects, also see our Outdoor Interactive Kiosk solution.
Every item below is selectable per project. The quotation is prepared after the configuration and site conditions are confirmed.
| Configuration Item | Available Options | Confirm Before Quotation |
|---|---|---|
| Screen size | 43", 49", 55", 65", 75", 86" or custom | Viewing distance, installation space, content layout |
| Orientation | Landscape | Fixed landscape mounting or rotation use |
| Resolution | Full HD / 4K / project-specific | Content type, viewing distance, system platform |
| Brightness | Semi-outdoor / high brightness / sunlight-readable option | Sun intensity, screen orientation, business hours |
| Display panel | Commercial or industrial-grade LCD option | Daily operating hours, budget, reliability requirements |

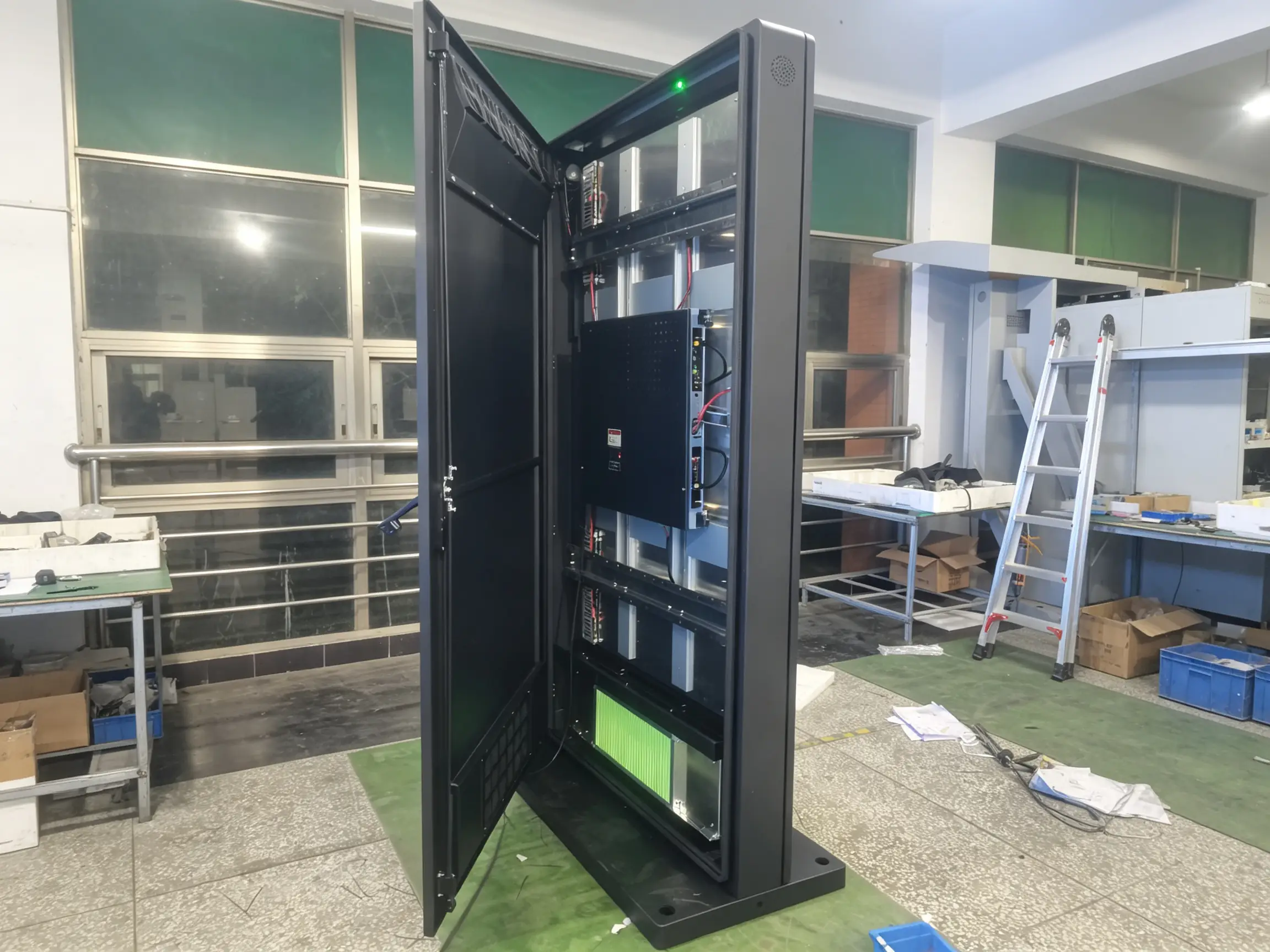

| Protection | IP-rated enclosure option | Rain, dust, cleaning method, coastal environment |

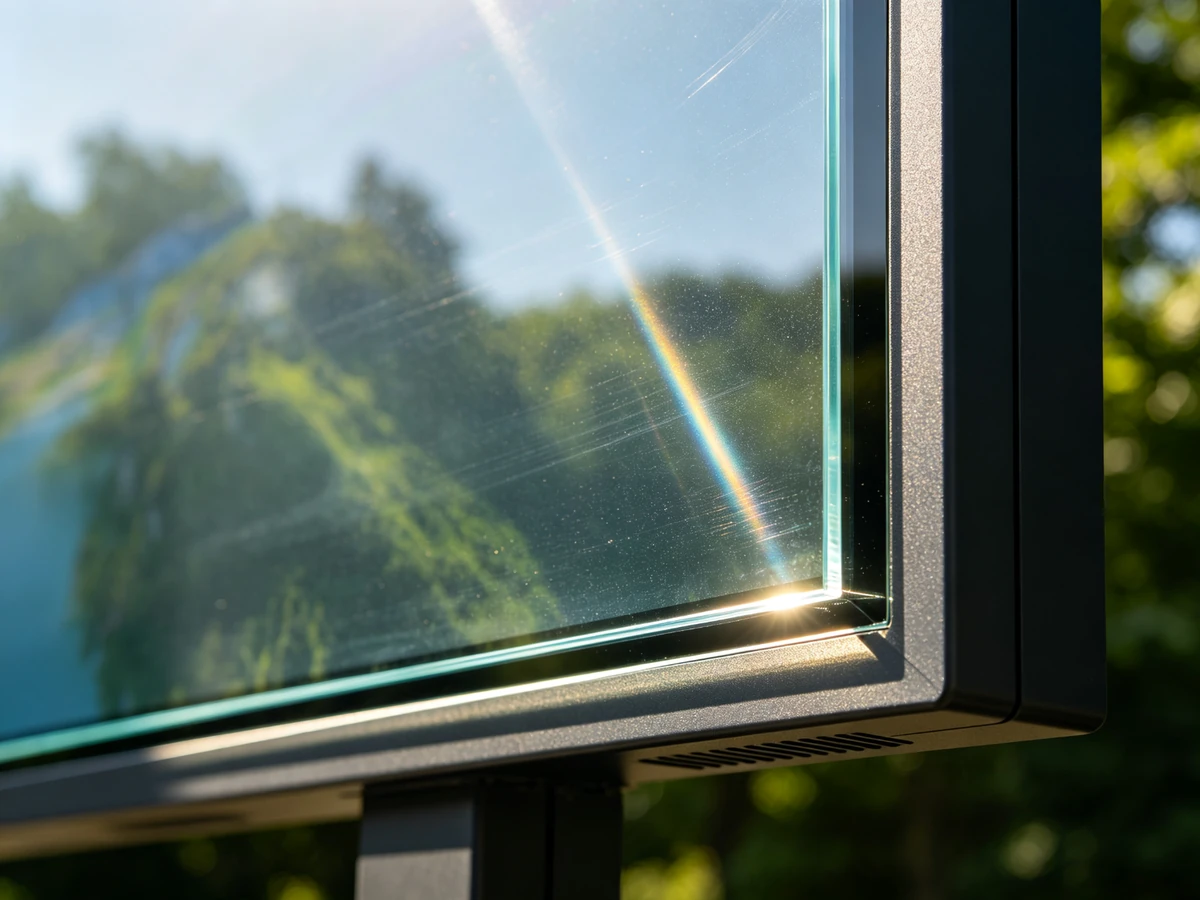

| Glass | Tempered, laminated, anti-glare or AR option | Sun reflection, vandal resistance, clarity requirements |

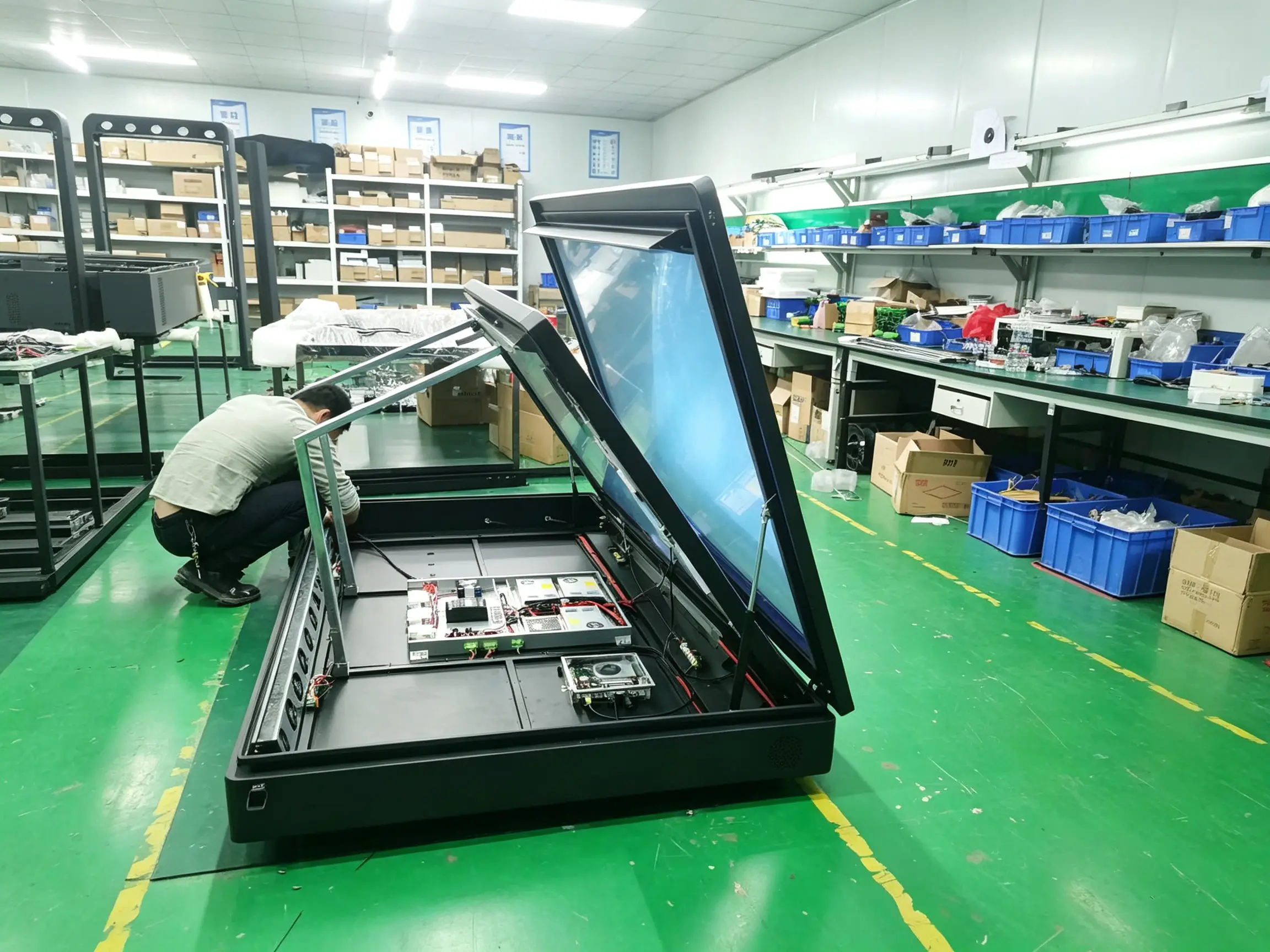

| Thermal system | Fan, air conditioner, heater or combined solution | Max/min temperature, sun exposure, humidity |
| Touch | Non-touch or PCAP touch option | Lookup needs, gloved operation, front-panel design |
| System | Monitor only, Android, Windows or external player | CMS, customer software and computing requirements |
| Connectivity | LAN, Wi-Fi, 4G, 5G, USB, HDMI, RS232, RS485 | Site network and system integration needs |
| CMS | Cloud CMS, local CMS or third-party platform | Site count, permissions, playback reports |
| Audio | Built-in speaker or external audio output | Site noise, regulations and content needs |
| Interaction | QR, NFC, camera, printer, payment terminal | Software, certification, power and cabinet layout |
| Cabinet | Standard or customized metal enclosure | Branding, colour, maintenance method, site requirements |
| Base | Floor base, anchor bolts or customized foundation frame | Ground structure, wind load, installation method |
| Branding | Logo, colour, UI, boot logo and packaging | OEM / project brand standards |

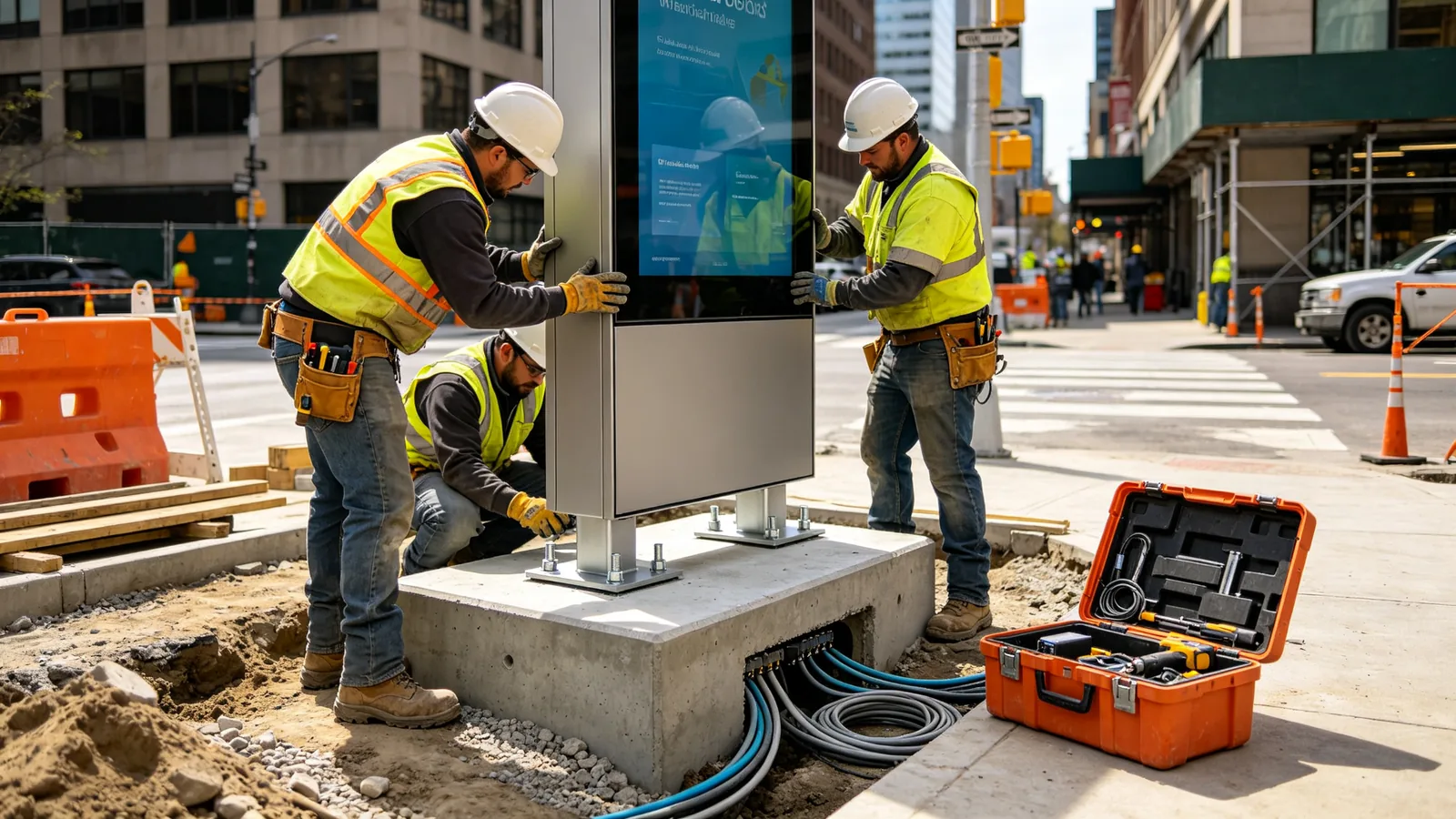

Outdoor landscape kiosks are engineered products. Beyond display parameters, the installation surface, foundation, wind load, power, earthing, network, drainage and maintenance space must be confirmed before production.

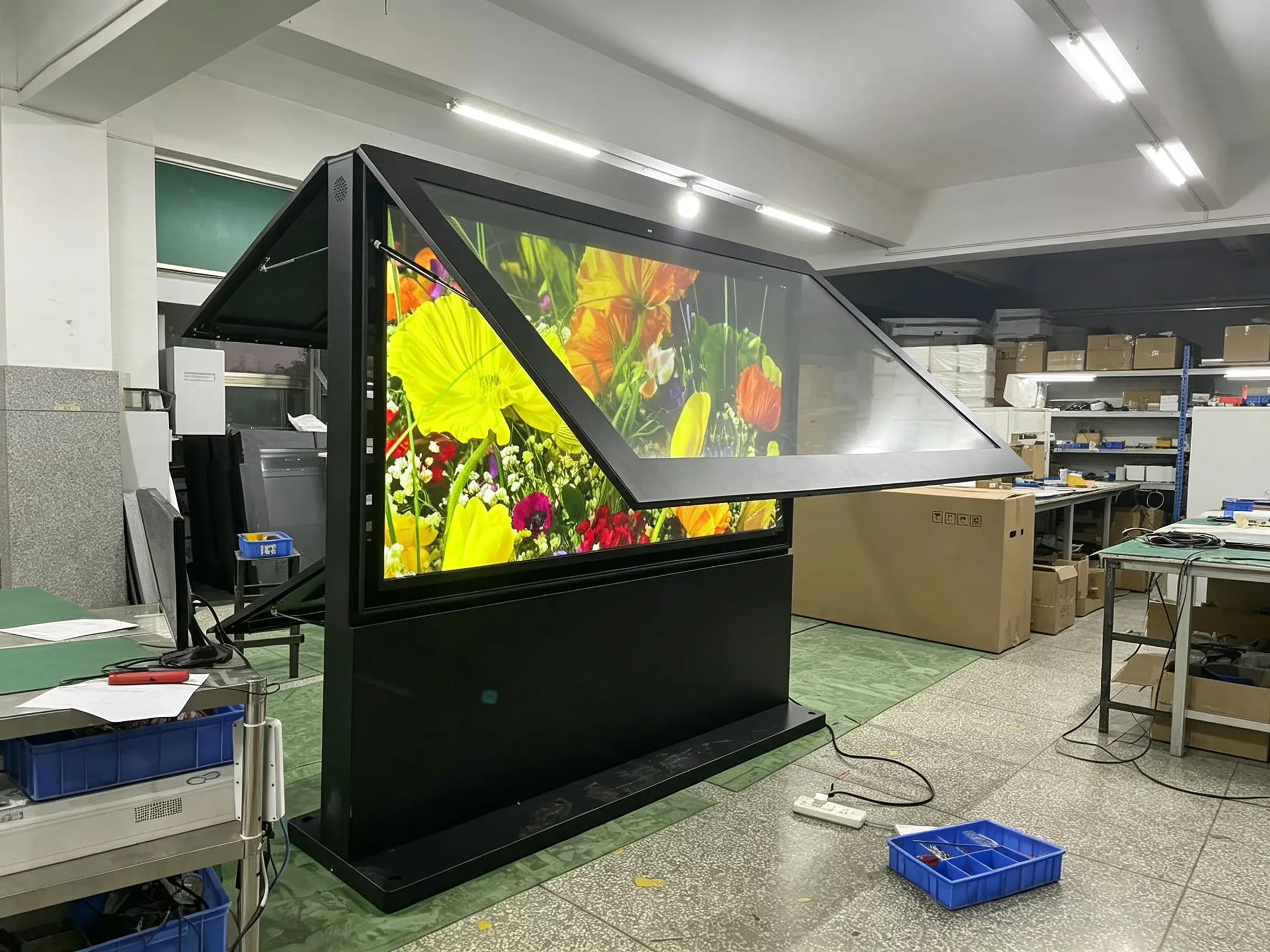

The kiosk should be installed on a suitable foundation or structural base. The final anchoring method is determined according to the cabinet dimensions, total weight, local wind conditions, ground structure and applicable installation requirements.
Before installation, confirm the available power supply, cable route, grounding method, surge protection and network connection. Outdoor equipment should be connected and installed in accordance with local electrical and site-safety requirements.
Send Site Photos and Ground Conditions
We support project-based outdoor digital signage development rather than a one-size-fits-all display configuration. Share your installation location, technical requirements, system platform, target quantity and branding needs, and we will help define a suitable hardware and enclosure solution.
Every outdoor kiosk is tested before shipment. The inspection scope covers display, system, interfaces, thermal control, enclosure and packaging.
Qtenboard is the commercial-display brand of Shenzhen Qunmao Display Technology Co., Ltd. — a manufacturer that started at the display-component level in 2005 and has grown into a full-stack OEM/ODM source for digital signage and outdoor kiosk projects.
Inside the display supply chain — from CKD/SKD component kits to full outdoor kiosk systems.
Guangzhou Huadu production base plus Shenzhen bases, with 1,000+ employees.
Export track record across Europe, Southeast Asia, Latin America, CIS and Africa.
Clients using Qtenboard's AI product line won 160+ government procurement tenders in 2025.
CE, FCC, RoHS and IP-related test reports are maintained current and available for distributor due diligence on request. Project-specific IK rating, safety-glass certificates and local electrical compliance are confirmed per order.
Qtenboard has delivered display and kiosk solutions for global sports, retail and luxury brands as well as education and public-sector partners across multiple markets.
Landscape kiosks at store entrances for a regional retail chain — promotional content switched per campaign via CMS across multiple locations.
High-brightness kiosks at bus stops displaying route maps and schedules, updated remotely through a central CMS.
Sunlight-readable units in commercial districts selling daypart ad slots to local merchants through the operator's own CMS.
Interactive outdoor kiosks for municipal wayfinding and public information, supported by Qtenboard's government-tender assistance.
We support B2B outdoor digital signage projects from configuration and drawing confirmation to production, testing, export packaging and remote commissioning. Share your project requirements and our team will recommend a suitable outdoor kiosk solution.
Start Your Outdoor Kiosk ProjectThis product is designed as a landscape outdoor digital signage kiosk. Its horizontal display layout is suitable for wide-format advertising, video content, transport information, maps, schedules and multi-zone information screens.
A high-brightness sunlight-readable LCD configuration can be selected for direct-sunlight locations. The final brightness should be confirmed according to the screen orientation, sunlight exposure duration, viewing distance and required content readability.
The available IP rating depends on the selected enclosure configuration. Please provide the expected rain exposure, dust level, humidity, cleaning method and installation environment so that an appropriate protection solution can be recommended.
A Windows-based configuration may be available with an integrated industrial PC. However, the operating-system version, license, CPU, RAM, storage and software compatibility should be confirmed for each project.
Yes. An Android configuration can be selected for digital-signage playback and remote CMS management. It can support content upload, scheduling, screen grouping and remote updates, subject to the selected software platform.
Yes. A monitor-only configuration can be supplied for connection to an external media player, industrial PC or AV control system through the supported video-input interfaces.
A touch-enabled outdoor kiosk can be developed if the project requires wayfinding, information lookup, product browsing or self-service interaction. The touch technology, protective glass, enclosure sealing and operating software should be confirmed together.
Yes. QR scanners, barcode scanners, NFC/RFID readers, cameras, thermal printers and payment terminals can be integrated as project options. Compatibility with software, enclosure protection, local regulations and payment certification requirements must be reviewed before production.
For permanent outdoor installation, the unit normally requires a suitable foundation and anchoring method. The requirement depends on the kiosk weight, size, wind exposure, ground structure and local installation rules.
Yes. Customization can include cabinet colour, logo, graphics, startup screen, user interface, packaging, mounting design and other project-specific details.
Sample orders and batch orders are both supported. Lead time depends on configuration, quantity and customization; payment terms, export packaging and shipping are arranged per project. Standard and extended warranty options are available, and a recommended spare-parts list supports long-term deployment.
Please provide your required screen size, installation environment, sunlight condition, IP protection requirement, operating-temperature range, screen quantity, system platform, CMS requirement, network method, interaction modules, branding needs and destination country.
